Eaton UTS6GN1412SW Plastic Waterproof Connector - IP68/69K
Part Number: UTS6GN1412SW
Quick Summary
Eaton UTS6GN1412SW waterproof connector provides reliable 12-position female contacts for rugged industrial equipment. When field maintenance and harsh environments challenge connectivity, this design reduces downtime with robust sealing and straightforward mating. Compliant with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, it delivers proven safety and regulatory alignment for control panels and automation assemblies. Built to handle wide operating temperatures and tough environments, it supports fast installation and dependable performance in mobile machinery, outdoor equipment, and heavy-duty automation projects. This model pairs IP68/IP69K protection with a compact form factor, enhancing overall system reliability while keeping integration costs predictable.
Product Information
Extended Description

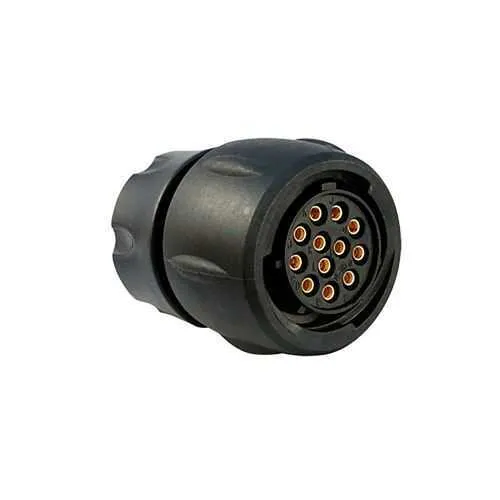

UTS6GN1412SW Eaton: Plastic plug, with nut and grommet backshell, for 12 female contacts, IP68/69K, keying W; UTS6GN1412SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6GN1412SW
Product Length/Depth
32 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
25.5 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
10 A IEC 10 A UL
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke RoHS REACH
Environmental resistance
Resistant against gasoline Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against basic bath Resistant against oil
Test current
10 A IEC 7 A CSA 10 A UL
Test voltage
600 V UL 63 V IEC 600 V CSA
Backshell angle
Straight
Backshell type
Single wire Backshell
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
12
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
Feature: IP68/69K plastic backshell and 12-position plug with straight orientation. Business Impact: Delivers superior ingress protection and reliable multi-contact performance in water, dust, and wash-down environments, reducing field failures and maintenance costs. Application: Robotic arms, outdoor machines, and mobile equipment that require sealed 12-contact connections. Feature: 1/3 bayonet coupling and crimp contact delivery. Business Impact: Speeds up assembly and disconnection cycles, lowering installation labor and downtime. Application: Vehicle harnesses and production line cabling where quick mating is critical. Feature: 12 contacts with CRIMP contact type and socket (female). Business Impact: Enables compact wiring harnesses with high-density signaling and power delivery up to 10 A, improving overall system efficiency. Application: Industrial automation controllers and motor drives in constrained spaces. Feature: Operating temperature range -40 °C to 105 °C and UV/oil/chemical resistance. Business Impact: Ensures reliable performance across harsh climates, reducing risk of material degradation and unscheduled maintenance. Application: Outdoor equipment, weather-exposed installations, and off-road machinery. Feature: Mating cycles rated at 250 and shell/material specifics (Plastic, size 14). Business Impact: Long-life connectivity with predictable lifecycle costs and component longevity. Application: Reusable field assemblies and serviceable automation panels. Feature: Delivered with connector, straight plug, backshell options. Business Impact: Streamlines procurement and reduces compatibility questions during system design. Application: New builds and retrofit projects requiring ready-to-install connectivity.
