Eaton UTS6GN147S Plastic Waterproof Connector - IP68/69K
Part Number: UTS6GN147S
Quick Summary
Eaton Souriau UTS6GN147S connector provides a plastic waterproof IP68/69K interface for rugged industrial environments. It helps reduce maintenance downtime and ingress risk in outdoor, washdown, or dusty environments. It complies with IEC 61984, UL 1977, and CSA-C22.2 No. 182.3, while delivering IP68 protection for harsh washdowns. Designed for 7 circuits, straight-plug mating and 1/3 bayonet coupling, it supports reliable field upgrades in automation and mobile equipment. With 250 mating cycles and a 7-contact layout, it balances durability, compactness, and ease of installation. For designers and procurement teams, this means fewer SKU variants, simpler stocking, and faster onboarding across harsh environments.
Product Information
Extended Description

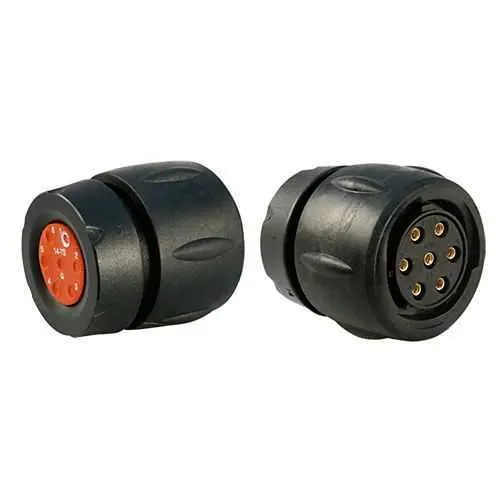

UTS6GN147S Eaton: Plastic plug, with nut and grommet backshell, for 7 female contacts, IP68/69K; UTS6GN147S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6GN147S
Product Length/Depth
32 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
27 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
10 A UL 16 A IEC
Fitted with:
First mate last break capability Layout with ground cavity Last mate first break capability(optional)
Environmental conditions
Fire & Smoke REACH Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS
Environmental resistance
Resistant against basic bath Resistant against gasoline Resistant against mineral oil Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A CSA 10 A UL 16 A IEC
Test voltage
300 V IEC 500 V UL 500 V CSA
Backshell angle
Straight
Backshell type
Single wire Backshell
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
7
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
7
Number of cavity #16
7
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K plastic housing and polyamide insert deliver superior sealing and chemical resistance, reducing ingress risk and extending service life in outdoor, washdown, and off-road equipment. This translates to lower maintenance costs and less unscheduled downtime in manufacturing lines and mobile machinery. Application: rugged outdoor automation and agricultural machinery. Feature → Business Impact → Application: Seven-contact, 7-position layout with straight plug and 1/3 bayonet coupling enables fast, vibration-resistant mating while preserving signal integrity for sensor and actuator wiring. Application: industrial robots, conveyors, and control panels. Feature → Business Impact → Application: 10 A UL and 16 A IEC current ratings with 300 V IEC and 500 V UL/CSA test voltage ensure reliable power delivery for actuators and feeds in harsh environments. Application: motor drivers, drives, and power distribution in manufacturing. Feature → Business Impact → Application: Mating cycles of 250 and compact shell size 14 support lightweight, space-constrained installations with easy field replacement. Application: mobile equipment, portable control cabinets, and field service deployments. Feature → Business Impact → Application: RoHS, IP68, UL94 V0, and multiple regulatory compliances provide regulatory confidence and safer operation. Application: medical devices? No — industrial automation, construction, and heavy equipment. Feature → Business Impact → Application: Ground cavity layout and backshell options streamline grounding and wiring harness integration, reducing assembly time and errors on the line. Application: panel builders and original equipment manufacturers.
Get a Quick Quote for a Eaton UTS6GN147S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6GN147S?
Enquire Now
FAQs
The UTS6GN147S is a 7-position plastic waterproof plug designed for use with Souriau UTS series mating receptacles. It features a straight plug, 1/3 bayonet coupling, and a ground cavity layout to support reliable grounding in automation equipment, conveyors, and rugged outdoor machinery. It uses crimp contact delivery and a polyamide insert suitable for harsh environments, ensuring secure connections across industrial applications.
This connector supports a current rating of 10 A per IEC and 16 A per IEC, with test currents up to 7 A (CSA) and 16 A (IEC) and test voltages of 300 V (IEC) and 500 V (UL/CSA). Operating temperatures range from -40 °C to 105 °C. These specifications enable reliable power delivery to actuators, sensors, and control devices in demanding industrial settings.
Yes. The connector is designed to meet IP68 protection, providing robust ingress resistance for immersion and washdown scenarios. It is built with a plastic shell and polyamide insert, offers UV resistance, and conforms to RoHS, with additional fire and smoke ratings to support safe operation in exposed industrial environments.
The UTS6GN147S complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, ensuring compatibility with global electrical and safety requirements. It also meets RoHS and UL 94 V0 fire rating criteria, supporting safe use in environments with strict regulatory controls and material restrictions.
Installation benefits include first mate last break capability, ground cavity layout for straightforward grounding, and a compact, lightweight shell that reduces panel footprint and stocking needs. With 250 mating cycles and durable IP68 sealing, maintenance costs decline due to fewer replacements and longer service life, delivering a tangible return on investment for automation and field-service operations.
