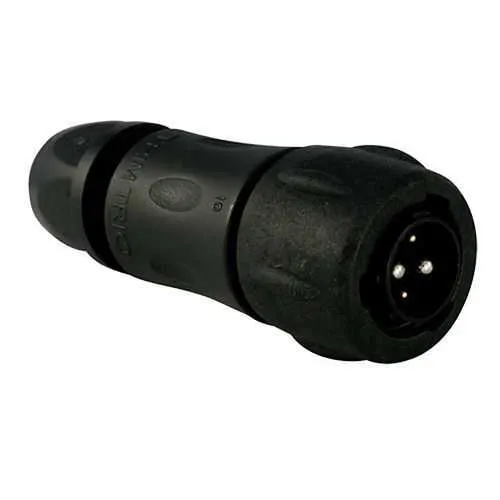

Eaton UTS6JC102W2P Plug - IP68/69K Waterproof
Part Number: UTS6JC102W2P
Quick Summary
The Eaton Souriau UTS series plastic waterproof IP68/69k connector is designed to deliver reliable power and signal coupling in harsh industrial environments for quick, secure field installations. In moisture-prone production lines, ingress and inadequate sealing can cause downtime, corrosion, and failed maintenance cycles. This connector family meets robust certifications and standards, including IP68/IP69K ratings for immersion and spray resistance, UL 1977 and IEC 61984 for interconnect safety and compatibility, and CSA-C22.2 No.182.3 for North American compliance. By combining a 4-contact, 2W2 layout with a sealing gland backshell and straight mating orientation, it supports fast, tool-free installations while maintaining reliability. The result is a resilient, cost-efficient solution for high-vibration, outdoor, or wet environments and aligns with your maintenance and procurement goals.
Product Information
Extended Description
UTS6JC102W2P Eaton: Plastic plug, with cable gland backshell, for 4 male contacts, IP68/69K; UTS6JC102W2P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC102W2P
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
19.5 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
20 A UL
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH Fire & Smoke Flammability rating UL94 V0 RoHS
Environmental resistance
Resistant against mineral oil Resistant against acid bath Resistant against basic bath Resistant against oil Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment
Test current
18 A CSA 20 A UL 25 A IEC
Test voltage
150 V IEC 500 V UL 500 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
2W2
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #12
2
Number of cavity #20
2
Salt spray
500 hour
Feature → Business Impact → Application: The UTS6JC102W2P uses a 4-pin, crimp-contact assembly in a 2W2 layout with a straight plug and 1/3 bayonet coupling, delivering a secure, fast-mating connection that reduces field downtime and installation time. The backshell is a Sealing Gland type, providing robust ingress protection (IP68) and reliability in washing-down environments common in manufacturing and outdoor equipment. With a cable diameter range of 1.5 to 8 mm and a compact shell size of 10, installers gain flexible routing and easier cabling in tight panels, lowering assembly costs while improving overall reliability. Rated 20 A UL and tested at 18 A CSA / 20 A UL / 25 A IEC, this connector supports higher current tasks without extra components, improving line efficiency. Environmental resistance to mineral oil, acids, bases, oils, and gasoline, plus UV stability, reduces maintenance cycles and extends service life in demanding conditions.
Get a Quick Quote for a Eaton UTS6JC102W2P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC102W2P?
Enquire Now
FAQs
The UTS6JC102W2P uses a 1/3 bayonet coupling with a straight plug. It contains four crimp contacts arranged in a 2W2 layout, consisting of two cavities sized #12 and two sized #20. The contacts are male pins, designed for crimp termination, and the backshell is a sealing gland type to maintain IP68/IP69K performance during mating.
This connector carries IP68 protection and IP69K sealing, along with safety and interconnect standards including UL 1977, IEC 61984, and CSA-C22.2 No.182.3. It adheres to RoHS/REACH environmental requirements and is suitable for North American and international installations in demanding industrial settings.
Yes. The UTS6JC102W2P offers UV resistance, oil and chemical resilience, and a robust sealing gland backshell. It is rated for operation from -40 to 105 C and supports 250 mating cycles, making it well-suited for high-vibration machinery, outdoor equipment, and facilities where exposure to mineral oil or lubricants is possible.
The connector has a current rating of 20 A UL and a test current of 18 A CSA / 20 A UL / 25 A IEC. It supports test voltages of 150 V IEC and 500 V UL/CSA. These specifications enable reliable power and signal transmission for moderate-load industrial applications while maintaining protection and safety compliance.
The sealing gland backshell enhances ingress protection and simplifies cable management, supporting a cable diameter range of 1.5–8 mm. Delivered with a connector and featuring straight backshell orientation, it enables straightforward, tool-free field assembly, maintains IP68 integrity during installation, and reduces risk of moisture ingress in challenging environments.
