Eaton UTS6JC103P Plug - IP68/69K Waterproof Connector
Part Number: UTS6JC103P
Quick Summary
Eaton UTS6JC103P Plug provides rugged, IP68/69K sealed connectivity for 3-pin control and sensor interfaces in harsh industrial environments. Enterprises often battle ingress, corrosion, and costly maintenance when using unsealed connectors in washdown areas or outdoor equipment. This design meets IEC 61984, UL 1977, and CSA-C22.2 No.182.3 requirements, with a UL94 V0 flammability rating and REACH/RoHS compliance for safety and reliability. Additionally, the compact 63.2 mm length and 26.7 mm width enable tight panel layouts, while the 3-crimp contact configuration supports straightforward wiring. For OEMs and service teams, that translates to faster assembly, reduced failure modes, and long-term total cost of ownership improvements. In practice, customers report predictable performance across -40 to 105 C and up to 250 mating cycles, reducing downtime.
Product Information
Extended Description

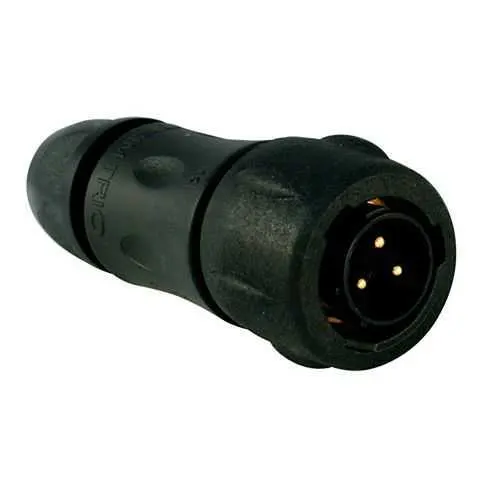

UTS6JC103P Eaton: Plastic plug, with cable gland backshell, for 3 male contacts, IP68/69K; UTS6JC103P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC103P
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
19.9 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Fitted with:
Layout with ground cavity First mate last break capability Last mate first break capability(optional)
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 REACH RoHS Fire & Smoke
Environmental resistance
Resistant against acid bath Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil Resistant against mineral oil Resistant against basic bath
Test current
16 A IEC 10 A UL 7 A CSA
Test voltage
500 V UL 500 V CSA 300 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
3
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #16
3
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K sealing and a plastic housing protect against washdowns, dust, and immersion, reducing field failures and warranty costs. This translates into lower service intervals and higher equipment uptime for food-processing lines, outdoor enclosures, and mobile machinery. Feature → Business Impact → Application: Three-pin layout with crimp contacts and a 1/3 bayonet coupling enables quick, secure mating in tight spaces, shortening assembly times on robotics endpoints, CNC machines, and conveyor systems. Feature → Business Impact → Application: Backshell with sealing gland and straight orientation simplifies on-site installation, improves cable management, and supports reliable ingress protection in harsh environments. Feature → Business Impact → Application: Wide operating temperature (-40 °C to 105 °C) and high mating cycle capability (250) ensure long service life in automotive, industrial automation, and outdoor equipment. Feature → Business Impact → Application: Compliance with IEC 61984, UL 1977, CSA-C22.2 No.182.3, RoHS, and REACH delivers regulatory peace of mind and streamlines supplier qualification for OEMs. Feature → Business Impact → Application: UV resistance and chemical耐ances offer durable performance in dusty, oily, or sun-exposed settings, reducing proactive maintenance costs for agricultural machinery and mining equipment.
Get a Quick Quote for a Eaton UTS6JC103P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC103P?
Enquire Now
FAQs
The UTS6JC103P is a straight plug with a sealing gland backshell designed for 3 crimp contacts. Install via the 1/3 bayonet coupling for fast mating, use the gland to seal against ingress, and ensure the ground cavity is correctly configured for first mate last break capability if required. The connector is delivered with the connector assembly and supports straightforward wire entry and strain relief in tight panel layouts.
This 3-position plug offers a current rating of 16 A IEC and 10 A UL, with test current 16 A IEC/10 A UL/7 A CSA and test voltage of 500 V UL, 500 V CSA, 300 V IEC. It supports up to 3 contacts, with 3 cavities, and provides IP68 protection. Mating cycles are rated at 250, suitable for moderate-to-heavy use in industrial settings.
Yes. It features IP68 sealing, UV resistance, and resistance to acids, oils, and mineral oils. It operates from -40 °C to 105 °C, with a robust vibration tolerance (10–2000 Hz) and a 500-hour salt spray rating, making it well-suited for outdoor installations, washdowns, and rugged machinery.
The UTS6JC103P complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with RoHS and REACH coverage and a UL94 V0 flammability rating. For regulated industries, these certifications validate electrical safety, material performance, and environmental compliance, facilitating supplier qualification and reducing compliance risk.
The connector uses a plastic shell with a polyamide insert, shell size 10, and a straight backshell with a sealing gland. It measures 63.2 mm in depth, 26.7 mm in width and height, and weighs 19.9 g. The combination supports compact panel layouts while maintaining robust ingress protection and reliable 3-pin mating.
