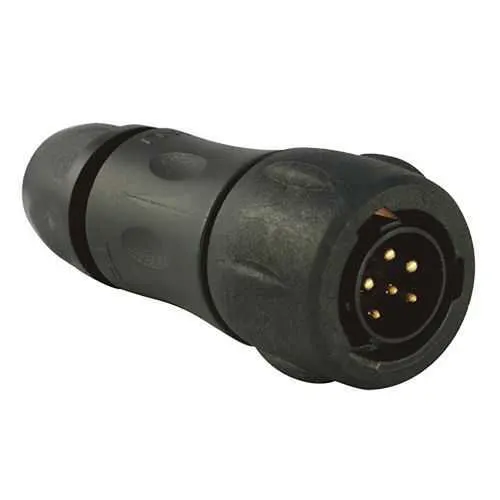

Eaton UTS6JC103W3P Connector - IP68/IP69K Waterproof
Part Number: UTS6JC103W3P
Quick Summary
UTS6JC103W3P is a plastic waterproof IP68/69K connector designed for rugged field installations in harsh environments. In outdoor automation or dirty industrial spaces, unreliable seals and mis-mating can cause costly downtime. UL 1977, IEC 61984 and CSA-C22.2 No.182.3 certifications help ensure safety, interchangeability, and global compliance for machinery and control panels. With IP68 sealing, a compact 6-pin layout, and a robust backshell, it reduces maintenance time while supporting fast field terminations and reliable connections. Designed for durable, easy-to-install connections, it supports scalable automation architectures and helps procurement teams meet global sourcing requirements.
Product Information
Extended Description
UTS6JC103W3P Eaton: Plastic plug, with cable gland backshell, for 6 male contacts, IP68/69K; UTS6JC103W3P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC103W3P
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
19.4 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
10 A UL 5 A IEC
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH Flammability rating UL94 V0 Fire & Smoke
Environmental resistance
Resistant against basic bath Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against acid bath
Test current
7 A CSA 5 A IEC 10 A UL
Test voltage
500 V CSA 32 V IEC 500 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
3W3
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #16
3
Number of cavity #20
3
Salt spray
500 hour
Feature: IP68/IP69K sealing and a sealing gland backshell protect the connector from water, dust, and oils in harsh environments. Business Impact: This high level of protection reduces unplanned downtime and extends service intervals in wash-down zones and outdoor installations. Application: Suitable for outdoor conveyors, packaging lines, and rugged equipment in automotive and material handling sectors. Feature: Six crimp contacts with a 10 A UL rating (5 A IEC) and a test current of 7 A CSA. Business Impact: Supports common automation sensors, actuators, and control modules with cross-standard compatibility, enabling one harness across multiple regions. Application: Industrial robots, CNC machinery, and process control panels. Feature: 1/3 Bayonet coupling and straight plug with a sealing gland backshell. Business Impact: Delivers quick, secure mating even in tight spaces, reducing installation time and mis-mates. Application: Panel mounts and field replacements in compact enclosures. Feature: Operating temperature from -40 °C to 105 °C with polyamide insert and plastic shell. Business Impact: Maintains performance in extreme climates, lowering failure rates and service calls. Application: Outdoor equipment, conveyors, and mining gear. Feature: Material and construction meet RoHS, REACH and UL94 V0 flammability. Business Impact: Simplifies regulatory compliance and global sourcing, reducing procurement risk. Application: Industry-compliant machinery, food-grade lines, and packaging systems. Feature: Layout 3W3, shell size 10, 6 contacts across a compact footprint. Business Impact: Enhances harness compatibility and saves panel space in upgrades or retrofits. Application: Control cabinets and modular automation assemblies.
Get a Quick Quote for a Eaton UTS6JC103W3P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC103W3P?
Enquire Now
FAQs
For installation, follow the product’s backshell sealing gland approach and ensure a 1.5 to 8 mm cable diameter. Use crimp-type contacts for six-pin wiring, align with the straight plug orientation, and secure the mating interface with the 1/3 bayonet coupling. Delivered with the connector, check that the mating cycles meet your application needs (up to 250 cycles).
Yes. The IP68/69K rating provides strong protection against water and dust, while the UV resistance and operating temperature range (-40 °C to 105 °C) support outdoor and harsh indoor environments. The 6-pin layout and robust backshell simplify field wiring on conveyors, packaging lines, and rugged automation gear.
It complies with UL 1977, IEC 61984, and CSA-C22.2 No.182.3, ensuring safety and interchangeability across regions. Additional RoHS, REACH, and UL94 V0 ratings support environmental compliance and fire safety, which helps with supplier qualification, regulatory audits, and global production approvals.
The connector provides a 10 A UL current rating (5 A IEC) and a test current of 7 A CSA, with test voltages of 500 V CSA and UL and 32 V IEC. It features six crimp contacts in a 3W3 layout, a straight plug, and a sealing gland backshell to maintain a reliable connection under vibration and temperature variations.
With a mating cycle rating of 250 and robust environmental resistance (oil, UV, salt spray up to 500 hours), the UTS6JC103W3P reduces maintenance intervals and replacement costs. The 1/3 bayonet coupling enables quick, repeatable connections, improving uptime in high-vibration settings such as conveyors and mining equipment.
