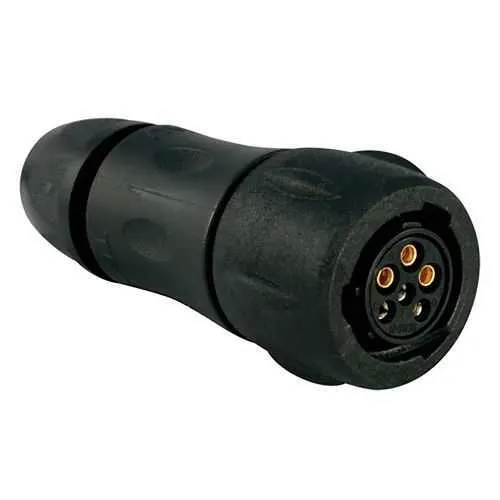

Eaton UTS6JC103W3S Plastic Waterproof IP68/69K Connector
Part Number: UTS6JC103W3S
Quick Summary
Eaton UTS6JC103W3S is a plastic waterproof IP68/69K connector designed for rugged industrial environments and outdoor equipment. Engineers often confront water ingress, limited cable size flexibility, and challenging field installs that slow production. This connector family carries UL 1977, CSA-C22.2 No.182.3, and IEC 61984 compliance, delivering safety and regulatory assurance across automation projects. Its IP68 sealing, UV resistance, and Souriau UTS series compatibility help streamline harness design and reduce maintenance. For teams optimizing uptime and ease of installation, the 6-contact straight-plug design with a sealing gland backshell provides a resilient, scalable connectivity solution for harsh environments.
Product Information
Extended Description
UTS6JC103W3S Eaton: Plastic plug, with cable gland backshell, for 6 female contacts, IP68/69K; UTS6JC103W3S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC103W3S
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
19.4 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
5 A IEC 10 A UL
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Flammability rating UL94 V0 Fire & Smoke REACH RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102
Environmental resistance
Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against gasoline Resistant against mineral oil Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
5 A IEC 10 A UL 7 A CSA
Test voltage
500 V UL 32 V IEC 500 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
3W3
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #16
3
Number of cavity #20
3
Salt spray
500 hour
Feature: IP68/IP69K sealing with a sealing gland backshell. Business Impact: Prevents water ingress and dust intrusion, reducing field failures and maintenance costs. Application: Outdoor machinery, washdown environments, agricultural equipment. Feature: 6-contact, 3W3 layout with crimp contacts. Business Impact: Enables compact, high-density connectivity while simplifying harness routing. Application: Industrial automation panels and control harnesses. Feature: Cable diameter range from 1.5 mm to 8 mm. Business Impact: Supports a variety of cable sizes, lowering inventory need and installation time. Application: Customized machine interfaces and field-installable cables. Feature: 1/3 bayonet coupling with straight plug orientation. Business Impact: Fast, reliable mating with minimal misalignment in tight spaces. Application: Robotic cells and conveyor systems. Feature: Performance ratings and materials: polyamide insert, UL 94 V0 rating, UV resistance. Business Impact: Meets safety and exposure requirements, extends service life in sunlight and heat. Application: Outdoor equipment and machinery exposed to harsh conditions.
Get a Quick Quote for a Eaton UTS6JC103W3S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC103W3S?
Enquire Now
FAQs
Install with the straight plug orientation and the sealing gland backshell securely engaged to maximize IP68 protection. Use six crimp contacts for a 6-position configuration, ensuring the cable diameter is within 1.5 mm to 8 mm. Verify the mating interface aligns with the 3W3 layout and that the bayonet coupling engages fully to maintain seal integrity. The UTS series is designed for straightforward field assembly in harsh environments, reducing downtime during installation.
The UTS6JC103W3S provides a current rating of 5 A IEC and 10 A UL, with a test current up to 7 A CSA. It supports a test voltage of 500 V UL, 32 V IEC, and 500 V CSA. The connector offers six contacts, with a crimp contact type, and is rated for up to 250 mating cycles, suitable for repetitive connect/disconnect scenarios in automation equipment.
Yes. The connector offers IP68 sealing and a sealing gland backshell, with UV resistance to endure outdoor exposure. The polyamide insert and plastic shell are chosen for durability in washdown and high-humidity environments, helping prevent ingress and prolong equipment life in harsh industrial settings.
This Eaton connector meets UL 1977, CSA-C22.2 No.182.3, and IEC 61984 standards, providing regulatory compliance for industrial control and automation panels. These certifications support safety, interoperability, and performance in mixed regulatory environments across North America and international installations.
With up to 250 mating cycles, reliable IP68/69K sealing, and a compact 6-contact design, the UTS6JC103W3S reduces maintenance frequency and downtime while supporting robust automation deployments. Its wide cable range and compatibility with Souriau UTS components streamline spare parts management and installation effort, improving overall uptime and return on investment in harsh production environments.
