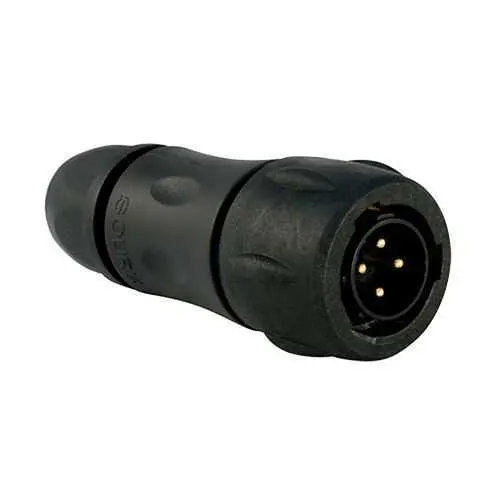

Eaton UTS6JC104P Plastic Connector Plug - IP68/69K
Part Number: UTS6JC104P
Quick Summary
Eaton UTS6JC104P plastic connector is designed to securely connect four‑cable assemblies in rugged industrial applications. Maintenance teams often struggle with ingress, mismatched terminations, and field repair downtime in harsh environments. It complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, delivering IP68 sealing and robust fire and smoke ratings for safety. With a compact 63.2 mm length and 4‑cavity layout, this plug offers dependable performance and faster installation, reducing total cost of ownership while supporting Souriau UTS series compatibility for scalable automation projects.
Product Information
Extended Description
UTS6JC104P Eaton: Plastic plug, with cable gland backshell, for 4 male contacts, IP68/69K; UTS6JC104P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC104P
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
19.6 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
13 A IEC 10 A UL
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
Flammability rating UL94 V0 REACH RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke
Environmental resistance
Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against gasoline Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath
Test current
13 A IEC 10 A UL 7 A CSA
Test voltage
500 V UL 500 V CSA 150 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
500 hour
IP68/IP69K sealing provides superior ingress protection, ensuring system reliability in wash-down areas and outdoor installations. This reduces contamination risk and unplanned downtime in conveyors, mobile equipment, and outdoor control panels, while the IP rating aligns with common industry requirements. The 4‑position plug with four crimp contacts supports standard industrial loads, enabling straightforward wire terminations and consistent electrical performance across machines and lines. With 1/3 bayonet coupling and a straight back, installation is faster, tool‑friendly, and less prone to misalignment, which reduces maintenance time and labor costs. Operating in a wide temperature range from -40 C to 105 C, plus UL 94 V0 flammability and RoHS/REACH compliance, the connector remains reliable in extreme environments and regulated facilities. The backshell sealing gland provides a robust environmental seal at the cable interface, while the compact dimensions (63.2 mm L, 26.7 mm W/H) and a 4‑cavity layout optimize space in tight panels. Compatible with Souriau UTS series accessories and 4‑pin configurations, it supports quick field replacements and scalable expansion for growing automation lines. With 250 mating cycles, crimp contact performance and a 19.6 g weight, field maintenance is predictable and cost‑effective, delivering long‑term ROI for industrial equipment owners.
Get a Quick Quote for a Eaton UTS6JC104P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC104P?
Enquire Now
FAQs
Yes. The UTS6JC104P is part of the Souriau UTS series and uses a 4‑position configuration with crimp contacts. It features a straight plug and a 1/3 bayonet coupling, designed for compatibility with standard UTS accessories and mating cables in four‑cavity layouts. This streamlines installation and ensures consistent mating alignment across multiple machines.
The connector is rated 13 A IEC and 10 A UL, with a test current of 13 A IEC and test voltage of 500 V UL/CSA (150 V IEC). It supports up to 250 mating cycles, which provides durable performance in frequent connect/disconnect scenarios typical of automated lines and serviceable equipment.
This plug is ideal for rugged, harsh environments such as outdoor industrial machinery, mobile equipment, conveyors, and wash‑down areas. With IP68 sealing, wide operating temperature (-40 to 105 C), and UV/chemical resistance, it suits manufacturing, packaging, and material handling systems requiring reliable ingress protection and long lifecycle performance.
The UTS6JC104P complies with IEC 61984, UL 1977, and CSA‑C22.2 No. 182.3, and offers UL94 V0 flammability rating with RoHS/REACH compliance. These certifications help ensure safe operation in regulated environments and simplify procurement for European, North American, and global automation projects.
With IP68/IP69K sealing, a 4‑pin configuration, and 250 mating cycles, maintenance is faster and more predictable. The sealing gland backshell protects the cable interface, reducing ingress-related failures. Its compatibility with Souriau UTS accessories enables scalable upgrades, lowering total cost of ownership as automation systems expand or require field replacements.
