Eaton UTS6JC104SW Connector - IP68/69K Waterproof
Part Number: UTS6JC104SW
Quick Summary
UTS6JC104SW is a plastic waterproof IP68/69K connector for four female contacts used in harsh industrial equipment. Engineers often face water ingress, field failures, and costly downtime when outdoor exposure or washdown cycles are common. This Eaton Souriau design leverages CSA-C22.2 No.182.3, UL 1977, and IEC 61984 compliance to address safety and regulatory needs, while maintaining rugged performance. Part of the Souriau UTS series, it features a sealing gland backshell and straight plug geometry for reliable ingress protection, UV resistance, and repeatable mating. The result is a user-friendly, dependable option that supports automation, robotics, and industrial machinery with reduced maintenance and faster installation.
Product Information
Extended Description

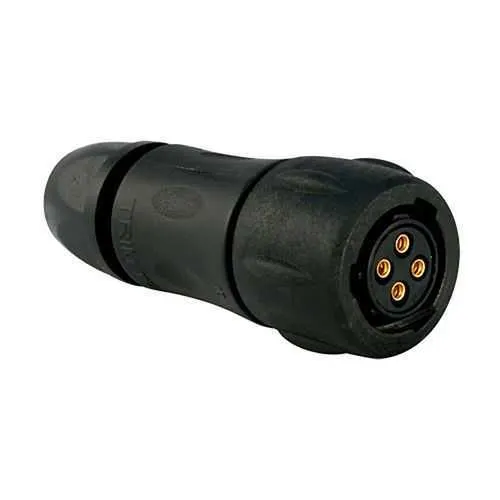

UTS6JC104SW Eaton: Plastic plug, with cable gland backshell, for 4 female contacts, IP68/69K, keying W; UTS6JC104SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC104SW
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
19.7 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
13 A IEC 10 A UL
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH RoHS Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against mineral oil Resistant against basic bath Resistant against gasoline
Test current
7 A CSA 13 A IEC 10 A UL
Test voltage
150 V IEC 500 V UL 500 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
500 hour
