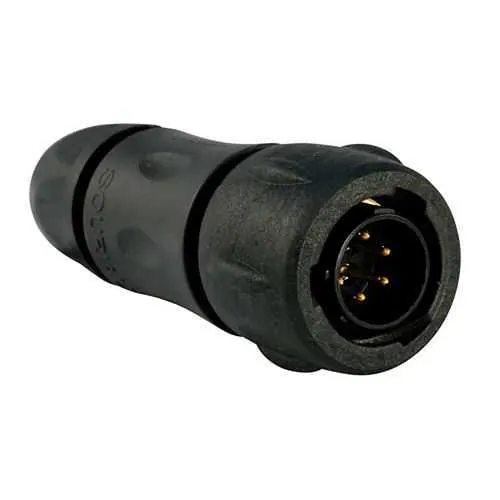

Eaton UTS6JC106P 6-Pin Waterproof Plug Connector IP68/69K
Part Number: UTS6JC106P
Quick Summary
UTS6JC106P is a plastic waterproof IP68/69K connector designed for 6-pin straight-plug configurations in harsh environments. Engineers often struggle with moisture ingress, seal failures, and time-consuming maintenance in outdoor or mobile equipment. It carries IP68 protection along with UL 1977, IEC 61984, and CSA-C22.2 No.182.3 certifications, giving design teams confidence in safety and compliance. Thanks to a compact 6-position layout and a sealing gland backshell, installation is faster while reliability and uptime improve across demanding applications. By addressing common field challenges with proven rugged features, this connector helps lower total cost of ownership and speeds project timelines.
Product Information
Extended Description
UTS6JC106P Eaton: Plastic plug, with cable gland backshell, for 6 male contacts, IP68/69K; UTS6JC106P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC106P
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
19.7 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
6 A UL 7 A IEC
Environmental conditions
RoHS Fire & Smoke REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil Resistant against acid bath Resistant against gasoline Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
4 A CSA 7 A IEC 6 A UL
Test voltage
32 V IEC 250 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
6
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
IP68/69K waterproof rating provides robust protection against moisture and dust, reducing field faults and maintenance downtime in outdoor, marine, and mobile equipment. This translates to higher uptime and lower service costs for critical automation and control systems. The 1/3 bayonet coupling paired with a sealing gland backshell enables quick, tool-free mating without sacrificing seal integrity, accelerating panel installations and harness assemblies in harsh environments. In practice, installers benefit from consistent, reliable seals across temperature and vibration, which supports faster commissioning and fewer warranty issues. The 6-position layout with crimp contacts delivers compact, standardized wiring that fits tight control panels and mobile machines, improving harness organization and reducing assembly errors. Cable diameter range from 1.5 to 8 mm provides flexibility for varied cable gauges while preserving a single backshell solution. Operating from -40 to 105 °C, the connector maintains performance in extreme temperatures, supporting industrial automation in diverse climates. With 250 mating cycles and reputable certifications (UL 1977, IEC 61984, CSA-C22.2 No.182.3), the UTS6JC106P offers predictable long-term reliability and regulatory compliance for cost-effective system design.
Get a Quick Quote for a Eaton UTS6JC106P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC106P?
Enquire Now
FAQs
The UTS6JC106P uses a 6-position, crimp-contact design with a sealing gland backshell and straight plug orientation. It supports common 6-contact harnesses and a 1/3 bayonet coupling for fast mating. This makes it straightforward to integrate with existing Eaton Souriau UTS components and standard field assemblies while preserving IP68/69K protection and high vibration resistance.
The connector is IP68/69K rated and carries UL 1977, IEC 61984, and CSA-C22.2 No.182.3 certifications. It also complies with RoHS and REACH requirements, and features UL94 V0 flammability. These certifications help ensure safe operation, regulatory compliance, and suitability for electrical and electronic installations in harsh environments.
Ideal for outdoor, mobile, and rugged installations such as automation in manufacturing floors, mining equipment, agricultural machinery, and outdoor control cabinets. The IP68/69K protection, broad operating temperature range, and compact 6-position layout support reliable connections where moisture, dust, and vibrations are common challenges.
The 1/3 bayonet coupling with a sealing gland backshell enables quick, tool-free mating while maintaining a robust seal. This reduces assembly time, minimizes commissioning delays, and lowers maintenance costs due to fewer seal failures. The 6-position configuration also simplifies harness routing, contributing to fewer wiring errors and faster diagnostics in the field.
Key specs include a current rating of 6 A UL and 7 A IEC, test current of 4 A CSA, test voltage of 32 V IEC and 250 V CSA/UL, and a temperature range of -40 to 105 °C. With 250 mating cycles and IP68 protection, the connector supports reliable long-term use in demanding environments and aligns with common industrial safety and performance standards.
