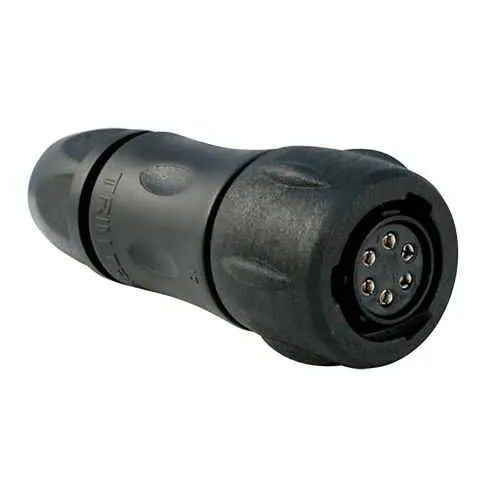

Eaton UTS6JC106S Plastic Waterproof Connector - IP68/69K
Part Number: UTS6JC106S
Quick Summary
Eaton UTS6JC106S is a plastic waterproof IP68/69K connector designed for rugged field connections in harsh industrial environments. When reliability matters, a poor seal or misalignment leads to leaks, downtime, and costly rework. It supports key compliances including IEC 61984, UL 1977, and CSA-C22.2 No. 182.3, ensuring broad regulatory coverage and safety for global deployments. The combination of sealing, rugged materials, and fast mating makes it well suited for outdoor equipment, automation modules, and mobile machinery. By aligning with Souriau UTS family, it also streamlines spare parts and installation practices, delivering measurable business value through reduced maintenance, faster service, and consistent electrical performance.
Product Information
Extended Description
UTS6JC106S Eaton: Plastic plug, with cable gland backshell, for 6 female contacts, IP68/69K; UTS6JC106S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC106S
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
19.7 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
6 A UL 7 A IEC
Environmental conditions
REACH Fire & Smoke RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against mineral oil Resistant against basic bath Resistant against gasoline Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A IEC 4 A CSA 6 A UL
Test voltage
32 V IEC 250 V UL 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
6
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
Feature: IP68/69K sealing with a Sealing Gland backshell and a 6-position straight plug. Business impact: Delivers reliable ingress protection against water, dust, and oil exposure, reducing field failures and maintenance costs in harsh environments. Application: ideal for outdoor automation equipment, marine-related machinery, and rugged sensor networks where connectors must endure immersion and washdown. Feature: 1/3 bayonet coupling for quick mating and a compact layout. Business impact: Speeds installation, minimizes misalignment risks, and lowers labor costs during panel mounting or field servicing. Application: control panels, robotics, and mobile machines that require rapid, repeatable connections. Feature: Six contacts with polyamide insert and plastic shell. Business impact: Provides robust mechanical integrity while keeping weight low for easy harness routing and inventory management. Application: automation sensors, actuators, and signal interfaces in conveyors and packaging lines. Feature: Electrical specs aligned with IEC and UL voltages and currents. Business impact: Ensures compatibility with low-voltage control circuits and global standards, reducing regulatory risk and rework. Application: machines and control cabinets requiring certified field connections. Feature: Wide operating range and environmental resistance. Business impact: Extends service life in harsh environments, lowering preventive maintenance and replacement costs. Application: outdoor equipment, petrochemical, and heavy-industrial settings where exposure is common. Feature: 250 mating cycles and durable sealing. Business impact: Supports maintenance schedules with predictable lifecycle costs and minimal downtime. Application: high-use automation interfaces in production lines and serviceable equipment.
Get a Quick Quote for a Eaton UTS6JC106S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC106S?
Enquire Now
FAQs
Install the Sealing Gland backshell over the cable and route a 1.5–8 mm diameter optimize the seal. Mate the 6‑position female socket using the 1/3 bayonet coupling until it securely seats, then verify the seal integrity to achieve IP68 protection and 250 mating cycles expectancy.
Current rating is 6 A UL and 7 A IEC; test current is 7 A IEC and 6 A UL. Voltage ratings are 32 V IEC and 250 V UL/CSA, suitable for low‑voltage control and sensor networks.
Yes. It offers IP68 protection, UV resistance, and vibration tolerance per IEC 60512-4, with resistance to oil, mineral oil, and various cleaning fluids, making it ideal for outdoor and high‑vibration environments.
It complies with IEC 61984, UL 1977, CSA‑C22.2 No. 182.3, and RoHS/REACH, with UL94 V0 flammability, covering broad regulatory and safety requirements for global deployments.
Mating cycles are rated at 250, and the robust sealing reduces maintenance and downtime, delivering lower lifecycle costs and higher uptime across automated systems.
