Eaton UTS6JC10E6P Plastic Connector Plug IP68/69K
Part Number: UTS6JC10E6P
Quick Summary
Eaton Souriau UTS6JC10E6P plastic waterproof IP68/69K connector is designed to seal and connect six wires in harsh industrial environments. Engineers often contend with moisture ingress, vibration, and wash-down exposure that threaten uptime for outdoor machinery and automated lines. This product aligns with IP68/69K protection, UL 1977, and IEC 61984 standards, while CSA-C22.2 No.182.3 compatibility and RoHS exemptions ease regulatory compliance. For automation designers and procurement teams, the combination of rugged sealing, gold-plated solder contacts, and a compact backshell supports reliable field assembly, faster maintenance, and lower lifecycle costs in heavy-duty applications.
Product Information
Extended Description

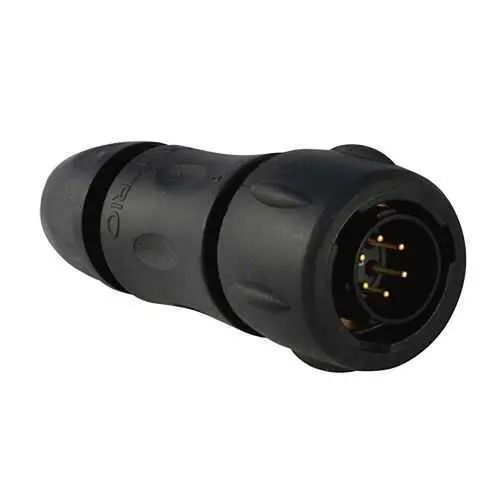

UTS6JC10E6P Eaton: Plastic plug, with cable gland backshell, with 6 male solder contacts, IP68/69K in unmated conditions; UTS6JC10E6P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC10E6P
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
21.2 g
Compliances
ROHS exemption 6.c UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
7 A IEC 6 A UL
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil Resistant against mineral oil Resistant against gasoline Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath
Test current
6 A CSA 7 A IEC 6 A UL
Test voltage
250 V CSA 250 V UL 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
6
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
Feature: IP68/IP69K waterproofing with sealing gland backshell. Business Impact: Maintains operation in damp, oil, and wash-down environments, reducing unplanned downtime. Application: Outdoor sensors, conveyors, and wash-down equipment benefit from enhanced reliability. Feature: 6-position, gold-plated solder cup contacts. Business Impact: Consistent electrical performance and corrosion resistance, enabling longer service intervals. Application: Multi-signal sensor and actuator loops in automation panels. Feature: 1/3 bayonet coupling with straight plug and backshell sealing gland. Business Impact: Rapid mating and secure connection with vibration resistance, lowering maintenance time. Application: Field service and panel mounting in robotics and material handling. Feature: Operating temperature range -40 to 105 C and 250 V / 7 A ratings with 6 A test current. Business Impact: Wide ambient tolerance and dependable current handling for rugged machines. Application: Heavy equipment, mining gear, and outdoor control cabinets. Feature: 6 contacts, Neoprene insert, plastic shell, and gold-plated copper contacts. Business Impact: Robust physical and electrical integrity, with strong resistance to environmental stress. Application: High-reliability automation connections in demanding environments. Feature: Regulatory compliance (UL 1977, CSA-C22.2 No.182.3, IEC 61984) and RoHS exemption 6.c. Business Impact: Simplifies qualification and supply-chain approvals, reducing time-to-operate. Application: Industrial automation projects requiring approved connectors for control panels.
Get a Quick Quote for a Eaton UTS6JC10E6P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC10E6P?
Enquire Now
FAQs
Install with the straight plug orientation and backshell sealing gland to ensure IP68 protection. Use the cable diameter range of 1.5 to 8 mm, and route through the gland to maintain seal integrity. The 6-pin solder cup contacts are gold-plated for reliable signal transfer and corrosion resistance, with mating cycles rated at 250. Plan for a 6-position connection and verify the 63.2 mm length and 26.7 mm width are compatible with your panel cutout.
The UTS6JC10E6P provides a current rating of 7 A IEC and 6 A UL, with a test current of 6–7 A. Maximum voltage support is 250 V across CSA and UL, with 32 V under IEC. The 6-position layout uses solder cup contacts, with gold plating for durability, suitable for control circuits and sensor/actuator signatures in automation systems.
Yes. It is rated IP68 for unmated conditions, UV resistant, and designed to resist oils, mineral oils, and basic baths. The enclosure material is plastic with a neoprene insert, and the backshell uses a sealing gland to maintain the seal in harsh environments. It also withstands a wide operating temperature range from -40 °C to 105 °C, making it ideal for outdoor and wash-down industrial applications.
The connector complies with UL 1977 and IEC 61984, and CSA-C22.2 No.182.3. It also benefits from RoHS exemption 6.c, aiding regulatory clearance in many regions. These certifications support safe integration into automation panels, control cabinets, and machinery that require certified, compatible connectors with robust environmental ratings.
Mating cycles are rated at 250, and the contacts are gold-plated for longevity. Routine inspection should focus on backshell seals and cable glands to preserve IP68 protection. Plan for periodic checks during preventive maintenance, and replace seals or backshell components if signs of wear or oil exposure are detected to sustain reliability in demanding production lines.
