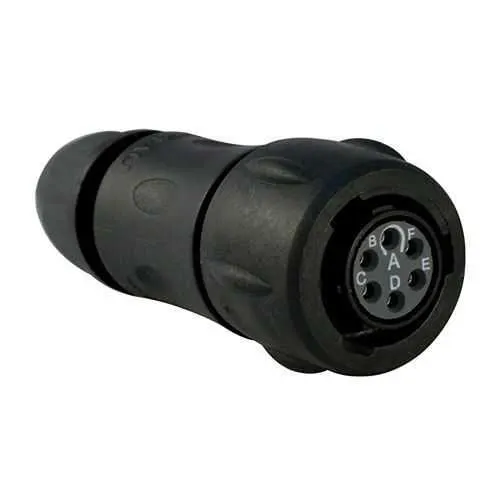

Eaton UTS6JC10E6S Plastic Waterproof IP68/69K Connector
Part Number: UTS6JC10E6S
Quick Summary
The Eaton UTS6JC10E6S plastic waterproof IP68/69K connector delivers reliable field-ready connectivity for harsh industrial environments. Manufacturers often struggle to maintain seals and electrical performance under vibration, moisture, and temperature swings, leading to unplanned downtime. This 6-position plug uses a sealing gland backshell and gold-plated solder contacts to maintain signal integrity in dirty or wet conditions. It meets IEC 61984, UL 1977, CSA-C22.2 No.182.3, and RoHS exemption 6.c, helping you stay compliant across global operations. For machine builders and panel designers, the compact 63.2 mm length and 1/3 bayonet coupling simplify installation, while the 6 contacts support compact yet capable control and sensor networks in automation, outdoor equipment, and mobile machinery.
Product Information
Extended Description
UTS6JC10E6S Eaton: Plastic plug, with cable gland backshell, with 6 female solder contacts, IP68/69K in unmated conditions; UTS6JC10E6S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC10E6S
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
22 g
Compliances
ROHS exemption 6.c IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A IEC 6 A UL
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against mineral oil Resistant against basic bath Resistant against acid bath Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
6 A UL 7 A IEC 6 A CSA
Test voltage
250 V CSA 250 V UL 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
6
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
IP68/69K sealing and a sealing gland backshell provide dependable ingress protection, lowering maintenance and warranty costs in wet or dusty plants. The result is fewer unplanned shutdowns and longer connector life in conveyors, mining equipment, and outdoor pumps. Six gold-plated solder cups deliver clean, low-resistance connections for small control networks, translating into tighter signal integrity and longer sensor life in automation racks and mobile machinery, while enabling compact harness designs for space-constrained panels. A 1/3 bayonet coupling offers fast mating with reliable retention, reducing install time and improving vibration resistance in demanding environments, which is especially valuable during on-site, tool-free engagements. Backshell is sealing gland type for robust environmental protection, with a cable diameter range of 1.5 to 8 mm and neoprene insert material for consistent sealing and strain relief. Operating from -40 to 105 °C and supporting 7 A IEC / 6 A UL, it delivers dependable performance across extremes. Mating cycles reach 250, supporting maintenance schedules in production lines and field deployments. Compliance is reinforced by IEC 61984, UL 1977, CSA-C22.2 No.182.3, and RoHS exemption 6.c, helping you meet regulatory expectations while reducing risk and rework for global installations.
Get a Quick Quote for a Eaton UTS6JC10E6S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC10E6S?
Enquire Now
FAQs
Yes. The UTS6JC10E6S uses a standard 1/3 bayonet coupling and straight plug geometry consistent with the Souriau UTS family, enabling straightforward cross-compatibility with compatible UTS receptacles and backshells in typical harness configurations.
Key specs include 7 A IEC / 6 A UL current rating, 250 V test voltage, six gold-plated solder cups, and six contacts with a 63.2 mm length. Designed for tight signal integrity, this connector supports reliable control and sensor networks in rugged environments.
Absolutely. The IP68 sealing against water and dust, -40 to 105 °C operating range, and UV resistance make it ideal for outdoor automation, mobile machinery, and outdoor pumps where environmental exposure and vibration are concerns.
The unit complies with IEC 61984, UL 1977, CSA-C22.2 No.182.3 and RoHS exemption 6.c, reducing regulatory risk for global deployments and aiding in supplier qualification and documentation workflows.
Use the sealing gland backshell with neoprene insert for reliable environmental sealing. The connector supports cable diameters from 1.5 to 8 mm; ensure the cable gland is tightened per spec to maintain IP68 ingress protection and strain relief during service life.
