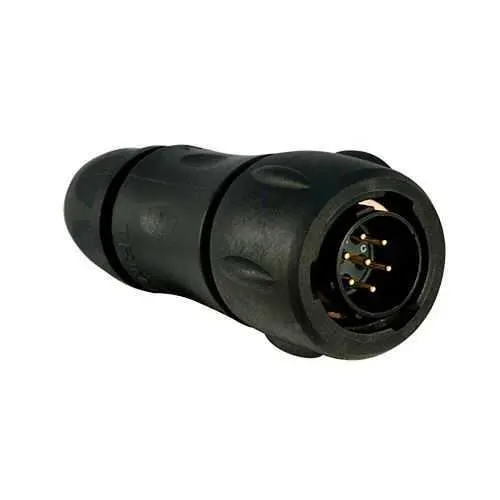

Eaton UTS6JC10E7P Plug - IP68/69K Waterproof Connector
Part Number: UTS6JC10E7P
Quick Summary
The Eaton Souriau UTS series plastic waterproof IP68/69k connector is designed for reliable, sealed electrical connections in harsh industrial environments. Engineers often struggle with moisture ingress, oil exposure, and vibration that drive maintenance costs and downtime. Its IEC 61984, UL 1977, and CSA-C22.2 No.182.3 certifications, along with ROHS exemption 6.c, ensure regulatory alignment and safety across global deployments. With IP68 sealing, a 7-contact layout, and a backshell with sealing gland, this plug delivers robust performance for mobile machinery, outdoor sensors, and rugged automation panels. The design supports easy installation, predictable mating cycles, and long service life, helping you minimize field service and maximize uptime.
Product Information
Extended Description
UTS6JC10E7P Eaton: Plastic plug, with cable gland backshell, with 7 male solder contacts, IP68/69K in unmated conditions; UTS6JC10E7P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC10E7P
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
21.4 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
7 A IEC 6 A UL
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against acid bath Resistant against basic bath Resistant against gasoline
Test current
6 A UL 6 A CSA 7 A IEC
Test voltage
250 V CSA 50 V IEC 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
7
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
7
Number of cavity #20
7
Salt spray
500 hour
Feature: IP68/69K sealing and backshell gland provide superior ingress protection, reducing water and dust intrusion. Business Impact: Enhances equipment reliability, lowers field maintenance, and extends service life. Application: Outdoor automation equipment and mobile machinery in wet or oily environments. Feature: 7 gold-plated solder cup contacts in a 7-way layout ensure low contact resistance and corrosion resistance. Business Impact: Maintains signal integrity and reduces intermittent failures, improving overall system reliability. Application: Control modules and sensor arrays in harsh industrial settings. Feature: 1/3 bayonet coupling with straight plug enables quick, secure mating and streamlined installation. Business Impact: Cuts assembly time on the shop floor and in the field, accelerating commissioning and reducing labor costs. Application: Panel-mounted connections in production lines and mobile equipment. Feature: Wide operating temperature from -40 °C to 105 °C with UV resistance and oil/chemical resilience. Business Impact: Enables use across extreme climates and long service intervals without performance loss. Application: Outdoor machinery, offshore assets, and plants with high thermal cycles. Feature: Neoprene insert and plastic shell deliver durable insulation and impact resistance. Business Impact: Improves electrical integrity and reduces downtime due to insulation degradation. Application: Harsh industrial enclosures and equipment housings. Feature: 250 mating cycles and IP68 rating combined with RoHS compliance. Business Impact: Supports long lifecycle maintenance plans and regulatory alignment while minimizing total cost of ownership. Application: Reusable field connectors in automation networks and legacy systems.
Get a Quick Quote for a Eaton UTS6JC10E7P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC10E7P?
Enquire Now
FAQs
The UTS6JC10E7P is part of the Souriau UTS series and shares the same 7-position layout, backshell sealing gland, and straight plug design. It is compatible with standard Souriau mating interfaces, uses a 63.2 mm length and 26.7 mm width footprint, and oriented as N for straightforward panel installs. This ensures easy upgrades or replacements without changes to housings or mating cables.
The connector carries 7 A current rating (IEC) and 6 A (UL), with test current listed as 7 A IEC / 6 A UL / 6 A CSA. It supports test voltages of 250 V CSA, 50 V IEC, and 250 V UL, making it suitable for a range of automation and control circuits while maintaining safety margins in rugged environments.
Yes. With IP68 sealing, UV resistance, and resistance to mineral oil, the UTS6JC10E7P is designed for harsh outdoor and mobile applications. It’s ideal for outdoor sensors, mobile equipment, and rugged automation panels where ingress protection and environmental resilience directly impact uptime and maintenance costs.
This connector complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with ROHS exemption 6.c. These certifications support global safety compliance, regulatory alignment, and reduced risk when deploying across multiple regions and customer specifications.
The combination of IP68/69K sealing, 250 mating cycles, and 7-contact gold-plated solder cups minimizes ingress-related failures and corrosion. Fast mating with 1/3 bayonet coupling shortens installation time, while robust materials and backshell gland enhance durability. Together, these features lower maintenance frequency, extend service life, and reduce uptime-related costs over the product lifecycle.
