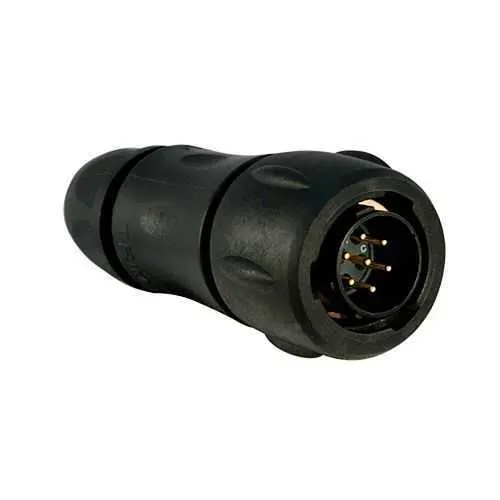

Eaton UTS6JC10E7PW Plug Connector - IP68/69K
Part Number: UTS6JC10E7PW
Quick Summary
Eaton UTS6JC10E7PW Plug Connector is a rugged, waterproof 7-pin interface designed for harsh industrial environments. Moisture ingress and unreliable terminations can derail OEM lines and erode uptime. Key certifications include IP68/IP69K sealing for unmated conditions, UL 1977 and CSA-C22.2 No.182.3 listings, and IEC 61984 compliance. As part of the Souriau UTS series, this connector delivers durable, field-ready connections with corrosion resistance and RoHS compliance, supporting cost-efficient, compliant installations in automation and machinery applications.
Product Information
Extended Description
UTS6JC10E7PW Eaton: Plastic plug, with cable gland backshell, with 7 male solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC10E7PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC10E7PW
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
21.4 g
Compliances
ROHS exemption 6.c UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
6 A UL 7 A IEC
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against gasoline Resistant against basic bath Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil
Test current
6 A UL 7 A IEC 6 A CSA
Test voltage
50 V IEC 250 V UL 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
7
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
7
Number of cavity #20
7
Salt spray
500 hour
Feature: IP68/IP69K rating provides reliable moisture protection in unmated and mated conditions. Business Impact: Reduces risk of water ingress, minimizes field servicing, and extends service life in wet or washdown environments. Application: Food processing equipment, outdoor control panels, and mobile machinery benefit from longer intervals between maintenance. Feature: 7-contact, gold-plated solder cup contacts with 6 A UL / 7 A IEC current rating and 50 V IEC / 250 V UL/CSA test voltages. Business Impact: Supports safe, high-integrity power and signal transmission while meeting multiple regional standards, lowering the need for separate adapters. Application: General automation and control circuits requiring robust electrical performance. Feature: Bayonet coupling (1/3 Bayonet) with straight backshell and sealing gland. Business Impact: Fast, secure mating with reliable sealing; simplifies installation and reduces downtime during panel wiring or field wiring. Application: Harsh industrial environments where rapid, repeatable connections are essential. Feature: Operating range -40 °C to 105 °C with UV resistance and resistance to mineral oil, basic and acid baths. Business Impact: Delivers consistent performance across temperature cycles and exposure conditions; lowers replacement risk in extreme environments. Application: Outdoor enclosures, heavy equipment, and mobile machinery. Feature: 7-position layout, Neoprene insert, plastic shell, and 10 shell size with straight plug configuration. Business Impact: Compact footprint with straightforward integration into existing harnesses; compatible with Souriau UTS accessories and standard mating receptacles. Application: Industrial automation rigs and control assemblies requiring tight, reliable interconnections. Objection handling: The combination of 250 mating cycles, robust sealing, and RoHS compliance addresses concerns about wear, corrosion, and regulatory alignment, while a simple backshell/sealing gland design minimizes maintenance and spares downtime.
Get a Quick Quote for a Eaton UTS6JC10E7PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC10E7PW?
Enquire Now
FAQs
Plan for a straight plug orientation with the Sealing Gland backshell and ensure the 1.5 to 8 mm cable diameter fits the insert. The connector is loaded with 7 gold-plated solder cups, supports 250 mating cycles, and uses a 1/3 bayonet coupling for quick, secure assembly in tight panels.
Expect a 6 A current rating (UL) and 7 A (IEC), with 50 V (IEC) / 250 V (UL/CSA) test voltages. It withstands temperatures from -40 °C to 105 °C, provides IP68 sealing, and features gold-plated solder contacts for reliable conductivity in demanding environments.
Yes. The IP68/69K rating, UV resistance, mineral oil and acid/basic bath resistance, plus rugged backshell and neoprene insert, make it ideal for outdoor panels, washdown areas, and equipment subject to chemical exposure.
The unit aligns with UL 1977 and CSA-C22.2 No.182.3, plus IEC 61984, and carries RoHS exemptions. This supports regulatory compliance across North America and Europe for connectivity components in industrial equipment.
Low maintenance is achieved through robust sealing, UV and chemical resistance, and up to 250 mating cycles, which reduces downtime and part replacement costs. The reliable 7-pin interface also minimizes wiring complexity, contributing to faster commissioning and lower lifecycle costs.
