Eaton UTS6JC10E7S Connector - IP68/IP69K Waterproof
Part Number: UTS6JC10E7S
Quick Summary
The Eaton UTS6JC10E7S is a plastic waterproof IP68/69K connector for harsh industrial and outdoor electrical connections. Engineers often struggle with moisture ingress and downtime in rugged environments. This family meets IP68/IP69K protection, UL 1977, IEC 61984, and RoHS compliance, ensuring safety and reliability. Designed for quick, dependable mating with a 7-contact layout and gold-plated solder cups, it reduces field downtime and installation costs. Additionally, the backshell with sealing gland provides robust sealing, while the compact form factor supports tight panel layouts and easier wire management, delivering long-term value across automation, packaging, and material handling applications.
Product Information
Extended Description

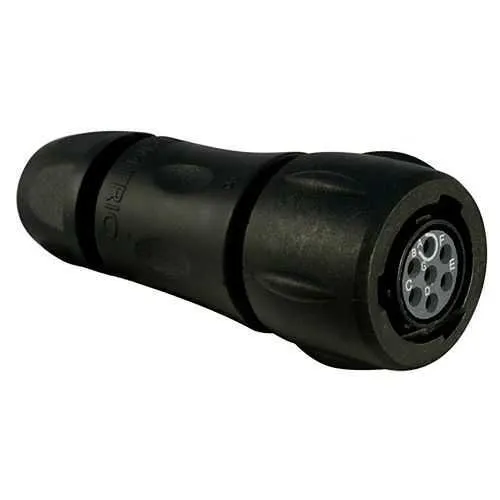

UTS6JC10E7S Eaton: Plastic plug, with cable gland backshell, with 7 female solder contacts, IP68/69K in unmated conditions; UTS6JC10E7S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC10E7S
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
22.3 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
6 A UL 7 A IEC
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against mineral oil Resistant against acid bath Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil
Test current
6 A CSA 6 A UL 7 A IEC
Test voltage
250 V UL 50 V IEC 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
7
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
7
Number of cavity #20
7
Salt spray
500 hour
