Eaton UTS6JC10E7SW Connector - IP68/69K
Part Number: UTS6JC10E7SW
Quick Summary
The Eaton UTS6JC10E7SW connector delivers reliable waterproof power and signal connection for harsh industrial environments. Engineers often battle ingress, corrosion, and downtime when field cabling is exposed to washdowns and vibration. This unit carries IEC 61984, UL 1977, and CSA-C22.2 certifications, plus IP68 sealing, with RoHS exemption ensuring regulatory compliance. Its compact 63.2 mm length, 7-contact configuration, and straight back-to-back bayonet coupling suit Souriau UTS series plastic waterproof IP68/69K connectors for automation cabinets, outdoor equipment, and heavy-duty machinery, delivering cost savings and fewer maintenance cycles. In industrial automation projects, this connector supports reliable sensor/actuator networks, helping reduce lifecycle costs and maintenance events.
Product Information
Extended Description

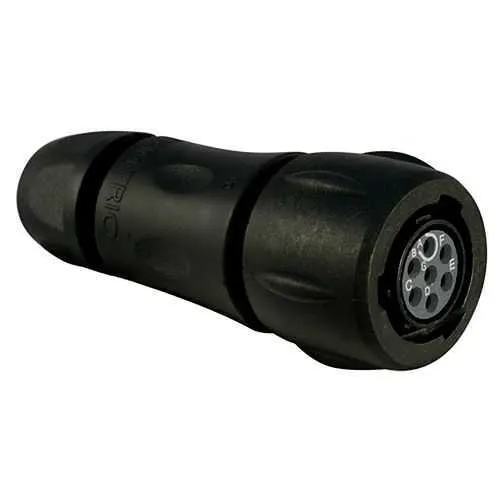

UTS6JC10E7SW Eaton: Plastic plug, with cable gland backshell, with 7 female solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC10E7SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC10E7SW
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
22.3 g
Compliances
IEC 61984 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A IEC 6 A UL
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against gasoline Resistant against basic bath Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil
Test current
7 A IEC 6 A UL 6 A CSA
Test voltage
250 V UL 50 V IEC 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
7
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
7
Number of cavity #20
7
Salt spray
500 hour
IP68/IP69K rated plastic connector resists ingress in unmated conditions, ensuring reliable operation in washdown environments and outdoor installations. This reduces downtime and protects sensitive electronics, which translates to higher line availability and lower maintenance costs in plant automation. The 7-contact, gold-plated solder cup configuration enables low-resistance, durable connections for multi-signal and power runs, improving reliability of sensor and actuator networks in harsh environments. Backshell with sealing gland accommodates cable diameters from 1.5 to 8 mm, simplifying field wiring and allowing quick installation without additional glands, which shortens commissioning time and lowers labor costs. The 1/3 bayonet coupling delivers fast, repeatable mating with proven vibration resistance, ideal for machinery in production lines and mobile equipment. With a compact 63.2 mm length and 22.3 g weight, it minimizes enclosure footprint while maintaining rugged performance. Operating from -40 °C to 105 °C and rated for 250 V and 7 A (IEC) / 6 A (UL), it supports diverse automation tasks while providing confidence in compliance and long lifecycle. Typical applications include outdoor automation cabinets, washdown-ready machinery, and sensor/actuator assemblies in process and discrete automation, where high reliability and easy maintenance matter.
