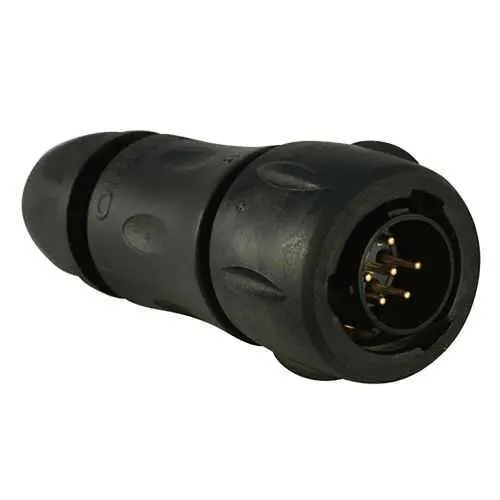

Eaton UTS6JC10E98PX Plastic Waterproof IP68/69K Connector

The IP68/69K protection rating in unmated conditions delivers reliable sealing against moisture, dust, and immersion, reducing unexpected field failures and warranty costs in outdoor or washdown environments. This translates to lower maintenance cycles and higher line uptime in automated packaging and conveying systems, while enabling compliant integration with standard IP-rated cabinets and enclosures. With a 6 A current rating (UL) and 7 A (IEC), the connector supports robust actuation and sensor networks without oversizing harnesses, improving wiring density and total system efficiency. Gold-plated solder cup contacts offer corrosion resistance and a dependable electrical path in dynamic machines, which lowers contact resistance drift and rework during installations in vibration-prone facilities. The 1/3 bayonet coupling provides quick, secure mating even in confined spaces, shortening assembly time and reducing dirty or misaligned connections in field terminations. A sealing gland backshell and neoprene insert accommodate cable diameters from 1.5 to 8 mm, enabling flexible harness configurations without re-terminations and enhancing installation speed. Operating from -40 to 105 C and rated for up to 250 V, this plug supports heavy-duty industrial use across environments, minimizing the need for alternate cabling choices. With 63.2 mm length, 26.7 mm width, 26.7 mm height, and a weight of 21.1 g, engineers gain a compact yet robust interface that fits tight panel spaces. The Souriau UTS series’ proven compatibility with standard mating interfaces reduces design risk and simplifies inventory with a single solution across multiple projects.
