Eaton UTS6JC10E98PY Connector - IP68/69K, Souriau Plastic
Part Number: UTS6JC10E98PY
Quick Summary
Eaton UTS6JC10E98PY Connector provides waterproof IP68/69K protection for rugged industrial applications in harsh environments. Engineers often contend with moisture ingress, cable strain, and costly field maintenance in outdoor or vehicle-mounted setups. Compliances include UL 1977, CSA-C22.2 No.182.3, IEC 61984, and RoHS exemptions, underscoring robust regulatory alignment. By delivering a sealed, bayonet-coupled, solder-cup contact design in a durable plastic shell, this connector supports long service life and reduces maintenance, inventory, and downtime for industrial connectors and electrical assemblies.
Product Information
Extended Description

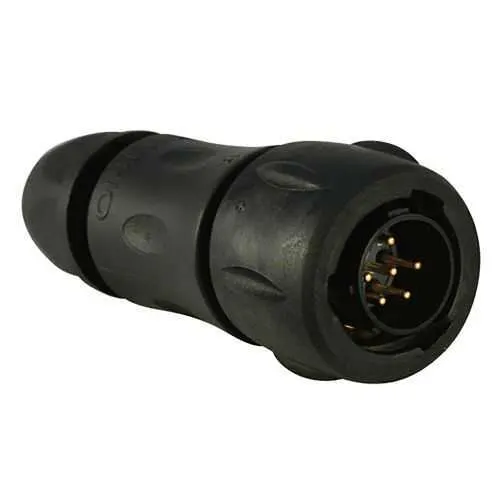

UTS6JC10E98PY Eaton: Plastic plug, with cable gland backshell, with 6 male solder contacts, IP68/69K in unmated conditions, keying Y; UTS6JC10E98PY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC10E98PY
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
21.1 g
Compliances
UL 1977 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
7 A IEC 6 A UL
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against acid bath Resistant against basic bath
Test current
6 A UL 7 A IEC 6 A CSA
Test voltage
50 V IEC 250 V UL 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
98
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
Feature: 6 gold-plated solder cup contacts deliver low-resistance, reliable connections even in vibration. Business Impact: Improves signal integrity and reduces contact failures, lowering maintenance costs and downtime. Application: Sensor arrays and control circuits in automated lines requiring robust 6‑way connections. The UTS6JC10E98PY supports efficient field assembly with predictable performance in harsh environments. Feature: IP68/IP69K sealing with a sealing gland backshell and 1/3 bayonet coupling provides superior ingress protection and fast mating. Business Impact: Minimizes water and dust intrusion, extending service life and reducing field service calls. Application: Outdoor machinery, vehicle assemblies, and wet factory floors. Feature: Operating temperature range from -40 °C to 105 °C and mating cycles up to 250 ensure reliability in extreme conditions. Business Impact: Enables use in automotive, mining, and heavy equipment without frequent replacements. Application: High-temperature zones and vibration-prone machines. Feature: Cable diameter range 1.5 to 8 mm and straight plug orientation support flexible harness designs. Business Impact: Simplifies installation, reduces custom cabling, and speeds panel builds. Application: Custom control cabinets and sensor harnesses. Feature: European and North American compliance and RoHS exemptions simplify procurement and regulatory acceptance. Business Impact: Streamlines sourcing and compliance for international projects. Application: Global automation deployments and regulatory-conscious builds.
Get a Quick Quote for a Eaton UTS6JC10E98PY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC10E98PY?
Enquire Now
FAQs
To install the UTS6JC10E98PY, align the Y orientation, engage the 1/3 bayonet coupling, and secure the sealing gland backshell. Prepare the cable with a 1.5 to 8 mm diameter, then solder or crimp the 6 gold-plated contacts as specified. After mating, verify IP68 sealing to ensure ingress protection in harsh environments.
The connector supports 7 A rated current per IEC, 6 A per UL, with a test current of 6 A UL / 7 A IEC / 6 A CSA. Test voltage is 50 V IEC and 250 V UL/CSA. Mating cycles reach about 250, ensuring reliable performance across installation and field maintenance cycles.
Yes. The UTS6JC10E98PY is designed for tough environments with IP68 sealing and UV resistance. Its neoprene insert and plastic shell withstand prolonged outdoor exposure, gasoline, mineral oil, and temperature cycling, making it suitable for outdoor automation, mobile equipment, and vehicle harnesses.
The connector aligns with UL 1977, CSA-C22.2 No.182.3, and IEC 61984 standards, with RoHS exemptions noted. These certifications support regulatory compliance in North American and international deployments, helping procurement teams meet safety and environmental requirements for industrial automation projects.
Key specs include 63.2 mm length, 26.7 mm width, 26.7 mm height, and a weight of 21.1 g. It uses a straight plug, sealing gland backshell, and 6-contact load with gold plating. For installation, ensure cable diameter fits 1.5–8 mm, select proper mating connectors, and verify 1/3 bayonet coupling seating for reliable sealing and cable protection.
