Eaton UTS6JC10E98PZ Connector - IP68/69K
Part Number: UTS6JC10E98PZ
Quick Summary
Eaton UTS6JC10E98PZ connector provides rugged waterproof connectivity for heavy-duty automation and machinery installations. Operators often contend with sealing failures, vibration, and maintenance in harsh environments; this plug is designed to withstand those challenges with IP68/69K protection. It carries UL 1977, CSA-C22.2 No.182.3, and IEC 61984 certifications, plus ROHS exemption 6.c, ensuring global compliance for automotive, industrial, and process equipment. Built for field installation, it supports quick, reliable connections and long service life, with 6 A UL and 7 A IEC ratings, 250 V test voltage, and up to 250 mating cycles, reducing downtime and total cost of ownership. As part of the Souriau UTS family, it features a sealing gland backshell, Z-keying, and a 6-pin arrangement for compact, robust connectivity across machines.
Product Information
Extended Description

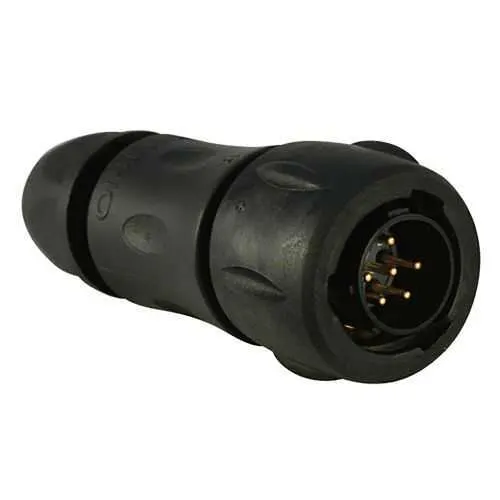

UTS6JC10E98PZ Eaton: Plastic plug, with cable gland backshell, with 6 male solder contacts, IP68/69K in unmated conditions, keying Z; UTS6JC10E98PZ
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC10E98PZ
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
21.1 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
6 A UL 7 A IEC
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil Resistant against acid bath
Test current
6 A UL 7 A IEC 6 A CSA
Test voltage
250 V CSA 250 V UL 50 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Z
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
98
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
IP68/IP69K sealed plastic plug with 6 gold-plated solder contacts delivers reliable performance in water, dust, and oil exposure, reducing ingress-related failures and maintenance costs while supporting high vibration environments common in automation lines. The 1/3 Bayonet coupling and straight plug orientation enable fast mating in cramped panels and on conveyor systems, shortening installation times and lowering labor costs. A sealing gland backshell simplifies field sealing and protects cables from environmental ingress, improving longevity in outdoor installations such as packaging equipment and outdoor machinery. With 250 mating cycles and an operating range from -40 °C to 105 °C, the connector maintains performance across seasons and production shifts, translating to lower replacement and service expenses. Compliance with UL 1977, CSA-C22.2 No.182.3, IEC 61984 and ROHS 6.c supports global OEM requirements, while 6 A UL / 7 A IEC ratings and gold-plated contacts ensure dependable signal transfer in instrumentation and control circuits.
Get a Quick Quote for a Eaton UTS6JC10E98PZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC10E98PZ?
Enquire Now
FAQs
Install with the straight plug orientation, utilize the backshell sealing gland, and ensure the cable diameter falls within 1.5–8 mm. Align the Z-keyed connector to prevent mis-mating, and verify a secure seal around the gland to maintain IP68/69K integrity during operation and maintenance.
The UTS6JC10E98PZ provides 6 A at UL, 7 A at IEC, with voltage ratings of 250 V (UL/CSA) and 50 V (IEC). It supports up to 250 mating cycles and is designed for reliable 6-pin solder cup contacts with gold plating for consistent signal transfer.
Yes. It carries IP68 protection (IP69K in unmated conditions) and is UV and oil resistant, with a wide operating temperature range (-40 °C to 105 °C) and vibration tolerance per IEC specifications, making it appropriate for outdoor equipment, conveyors, and other harsh environments.
It complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, with ROHS exemption 6.c, enabling global manufacturing and regulatory alignment for diverse markets and applications.
The gold-plated solder contacts and robust IP68/69K sealing reduce corrosion-related failures, while 250 mating cycles and a durable backshell design lower replacement and downtime costs. These traits support longer service life and lower total cost of ownership in automation, packaging lines, and outdoor equipment.
