Eaton UTS6JC10E98SW UTS Waterproof Connector - IP68/69K
Part Number: UTS6JC10E98SW
Quick Summary
The Eaton Souriau UTS series plastic waterproof IP68/69k connector is a rugged plug designed for harsh environments and demanding applications. Engineers often struggle with water ingress, cable strain, and field maintenance in outdoor machinery, washdown areas, or heavy-industrial settings; this connector helps mitigate those challenges with a sealed, plug-and-socket solution. Compliant with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, it also meets ROHS exemption 6.c and delivers reliable performance under UV exposure and various chemical and temperature conditions. By combining compact form with robust sealing and gold-plated contacts, it supports efficient installation and long-term service, while staying compatible with Souriau UTS accessories and standard backshell configurations for streamlined procurement and maintenance.
Product Information
Extended Description

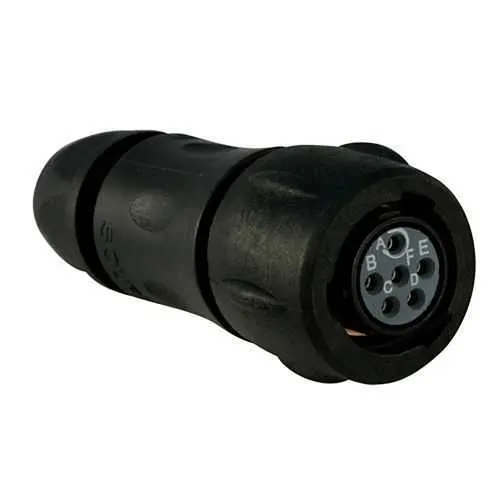

UTS6JC10E98SW Eaton: Plastic plug, with cable gland backshell, with 6 female solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC10E98SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC10E98SW
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
22 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
7 A IEC 6 A UL
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against acid bath Resistant against oil Resistant against basic bath Resistant against mineral oil
Test current
6 A CSA 7 A IEC 6 A UL
Test voltage
250 V UL 50 V IEC 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
98
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
The UTS6JC10E98SW features a straight plug with a sealing gland backshell that delivers IP68 protection in unmated conditions, reducing ingress risk during device coupling in challenging environments. This directly improves equipment uptime and lowers maintenance cost by simplifying field replacements and reducing the need for frequent resealing. The six gold-plated solder cup contacts provide reliable electrical performance for a 7 A IEC / 6 A UL current rating and 250 V test voltage, with mating cycles rated at 250, ensuring durable service in production lines and outdoor installations. The compact 63.2 mm length and 26.7 mm width/height, along with a 1.5–8 mm cable diameter range, support tight panel mounting and versatile cable routing in compact enclosures. The backshell is designed for easy gland insertion, supporting quick field wiring with consistent sealing and strain relief. The device is UV resistant and resistant to gasoline, oil, and acids, enabling use in demanding environments where exposure to chemicals and sunlight is common. The device’s 1/3 Bayonet coupling and W orientation provide reliable mating in tight spaces, while the 6-contact configuration supports multi-signal applications without added connectors. Availability of a straight plug with an included connector option reduces installation steps and part numbers, delivering a cost-efficient, scalable solution for automation and machinery installations. In practice, this translates to faster assembly, lower spare parts inventory, and improved total cost of ownership for food processing lines, packaging machines, or outdoor equipment.
Get a Quick Quote for a Eaton UTS6JC10E98SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC10E98SW?
Enquire Now
FAQs
This connector uses a straight plug with a sealing gland backshell and W orientation. Plan for 1.5–8 mm cable diameters, ensure proper gland seating, and allow for the 63.2 mm length in tight panels. Use the included connector option to simplify wiring and minimize field assembly errors.
IP68 protection is provided in unmated conditions through a sealing gland backshell and neoprene insert, with UV resistance and chemical compatibility. The design minimizes ingress during coupling and enables reliable operation in washdown, outdoor, and harsh industrial environments.
Yes. It complies with IEC 61984 and UL 1977, and CSA-C22.2 No.182.3. It also holds ROHS exemption 6.c status, aligning with common regulatory and environmental requirements for electrical connectors used in industrial equipment.
It is rated for 7 A IEC / 6 A UL, with a test current of 6 A CSA, and a test voltage of 250 V UL / 50 V IEC / 250 V CSA. This makes it suitable for signal and control circuits as well as light-power connections in controlled environments.
With 250 mating cycles, gold-plated contacts, and a compact 63.2 mm length, the UTS6JC10E98SW minimizes downtime and replacement costs. Its sealed design reduces leakage, while compatibility with Souriau UTS accessories streamlines spare parts and service planning for facilities like packaging lines and material handling systems.
