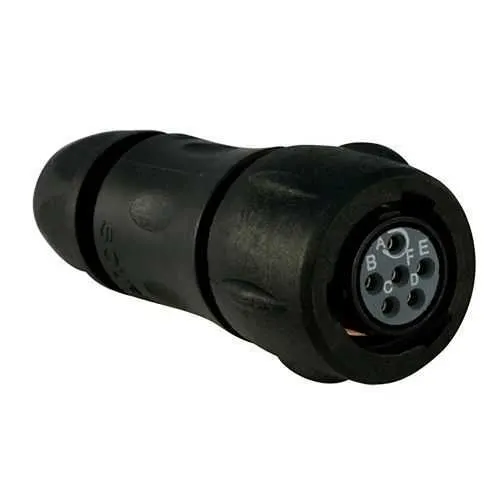

Eaton UTS6JC10E98SX Plastic Waterproof Connector - IP68/69K
Part Number: UTS6JC10E98SX
Quick Summary
Eaton Souriau UTS6JC10E98SX plastic waterproof IP68/69K connector delivers rugged, sealed connections for harsh industrial environments. Engineers often struggle with ingress protection and durability when field assemblies face oils, vibration, and wide temperature swings. This UTS series plug meets UL 1977, CSA, and IEC 61984 standards, with RoHS exemption 6.c, underscoring reliable electrical and environmental performance. With six gold-plated solder cups and a 1/3 bayonet coupling, it enables fast, tool-free mating and secure retention. Its straight plug and sealing gland backshell support straightforward installation and long service life, reducing maintenance costs and downtime in demanding machinery and outdoor applications.
Product Information
Extended Description
UTS6JC10E98SX Eaton: Plastic plug, with cable gland backshell, with 6 female solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC10E98SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC10E98SX
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
22 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
6 A UL 7 A IEC
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against mineral oil Resistant against basic bath Resistant against acid bath
Test current
6 A CSA 7 A IEC 6 A UL
Test voltage
250 V CSA 50 V IEC 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
98
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
IP68/IP69K sealing and a sealing gland backshell provide robust ingress protection, which translates to lower field failure rates and reduced service downtime in outdoor and washdown environments. The six gold-plated solder cups offer durable, corrosion-resistant connections that maintain signal integrity over time, supporting reliable automation and control in harsh plant areas. A 1/3 bayonet coupling enables fast, tool-free mating, cutting maintenance time and improving line uptime on conveyors, packaging, and rugged equipment. The connector’s compact footprint, straight plug orientation, and Neoprene insert simplify panel layouts and cable routing while preserving sealing performance under vibration per IEC 60512-4. Durable materials and a 63.2 mm length with 26.7 mm width/height ensure compatibility with tight enclosures and diverse harness configurations. This combination reduces total cost of ownership by lowering replacement frequency and installation complexity.
Get a Quick Quote for a Eaton UTS6JC10E98SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC10E98SX?
Enquire Now
FAQs
UTS6JC10E98SX is designed for straightforward integration with Souriau UTS mating pairs. Use the sealing gland backshell and compatible cable gland entry for cables with 1.5 to 8 mm diameter. The straight plug orientation and 1/3 bayonet coupling allow quick, tool-free mating while maintaining IP68 protection. Ensure the mating face is clean and seated to preserve sealing integrity in harsh environments.
The connector provides 6 A rated current per IEC and UL standards, with a test current of 6 A CSA/IEC/UL and a voltage rating of 250 V CSA/UL and 50 V IEC. The contact arrangement is six female solder cup contacts, gold-plated for corrosion resistance, configured as a six-position layout suitable for compact harnesses in demanding control environments.
Yes. The UTS6JC10E98SX features IP68 protection, UV resistance, and vibration tolerance per IEC 60512-4 across 10–2000 Hz, making it suitable for outdoor machinery, conveyors, and construction equipment. The 1/3 bayonet coupling provides secure retention under dynamic loads, while the neoprene insert and sealing gland backshell resist oil and mineral oil exposure.
Compliances include CSA-C22.2 No.182.3, UL 1977, IEC 61984, and RoHS exemption 6.c, ensuring safe interconnection and regulatory alignment for machinery across North America and Europe. These standards cover electrical safety, insulation, and performance under demanding conditions, supporting reliable integration with other compliant components.
With a mating cycle rating of 250 and gold-plated solder cups, the UTS6JC10E98SX offers reliable long-term performance in tough environments, reducing maintenance frequency and swap costs. Its compact footprint, straight plug, and sealing gland backshell simplify field replacements, while IP68/69K protection minimizes ingress-related failures, delivering lower total cost of ownership over the equipment lifecycle.
