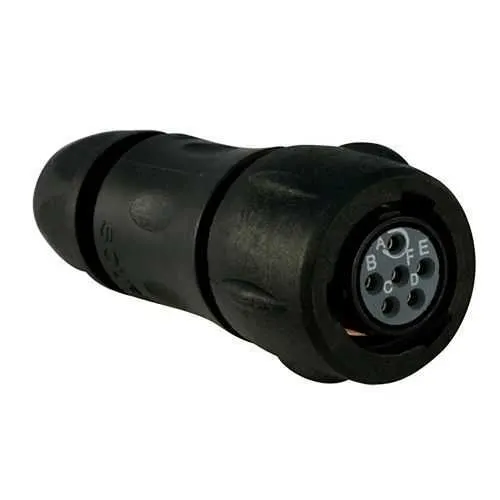

Eaton UTS6JC10E98SY Plug - IP68/69K Waterproof
Part Number: UTS6JC10E98SY
Quick Summary
The Eaton Souriau UTS6JC10E98SY is a plastic waterproof IP68/69K plug designed for rugged industrial cabling in automation and machinery. Engineers often struggle with reliable sealing and performance under vibration and washdown, but this connector delivers robust protection with a sealing gland backshell. It carries IEC 61984, UL 1977, CSA-C22.2 No.182.3, and RoHS exemption 6.c certifications, aligning with global safety and compliance requirements. Its compact form, 1/3 bayonet coupling, and gold-plated contacts help installers reduce downtime and improve system reliability in harsh environments.
Product Information
Extended Description
UTS6JC10E98SY Eaton: Plastic plug, with cable gland backshell, with 6 female solder contacts, IP68/69K in unmated conditions, keying Y; UTS6JC10E98SY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC10E98SY
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
22 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details)
Current rating
7 A IEC 6 A UL
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against mineral oil Resistant against acid bath Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A IEC 6 A CSA 6 A UL
Test voltage
50 V IEC 250 V UL 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
98
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
IP68/69K protection and a sealing gland backshell deliver reliable ingress protection for washdown environments and outdoor installations, reducing maintenance cycles and cost. This six-position plug uses gold-plated solder cup contacts to improve signal integrity and corrosion resistance, boosting long-term reliability in sensors and actuators used in automation systems. The 1/3 bayonet coupling provides fast, tool-free mating and secure retention, minimizing mis-mating in dense panel layouts and under vibration. Cable compatibility spans 1.5 to 8 mm, with a Neoprene insert that accommodates a range of cable diameters while preserving seal integrity, enabling flexible field terminations. The unit tolerates -40 °C to 105 °C and broad environmental exposure, including oil and UV resistance, supporting continuous operation in demanding factory floors. With 250 mating cycles and a lightweight 22 g footprint, total lifecycle costs are reduced while maintaining performance across lifecycle stages. These specifications align with UL, CSA, and IEC standards, ensuring regulatory compliance alongside RoHS exemptions. The UTS plug's compact 63.2 mm length and 26.7 mm width/height enable easy integration into tight control cabinets and equipment enclosures, delivering dependable connectivity without sacrificing space.
Get a Quick Quote for a Eaton UTS6JC10E98SY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC10E98SY?
Enquire Now
FAQs
The UTS6JC10E98SY is designed to mate with IEC 61984 compatible connectors and uses a 1/3 bayonet coupling. It features a 6-contact, gold-plated solder cup configuration with a straight plug and Y-key orientation to prevent mis-mating. The backshell is a Sealing Gland type, and the connector is delivered ready for installation with standard mating interfaces used in industrial automation.
It delivers IP68 protection (IP68/69K unmated) and a Neoprene insert with a sealing gland backshell, providing excellent ingress protection, oil, UV, and chemical resistance. The operating range is -40 °C to 105 °C, and it withstands vibrations up to 2000 Hz, making it ideal for washdown zones, outdoor equipment, and high-vibration machinery.
Sensor and actuator networks in factory automation, robotics, and machine tools benefit from the 6-contact, gold-plated solder cup design for reliable signal transfer. The compact footprint, bayonet coupling, and sealed gland backshell simplify routing in control panels and enclosures while maintaining robust performance in challenging environments.
The UTS6JC10E98SY meets IEC 61984, UL 1977, CSA-C22.2 No.182.3, and RoHS exemption 6.c requirements, providing regulatory alignment for safety and environmental standards in global projects. These certifications support compliance during system integration, procurement qualifications, and end-product approvals.
With a rated 250 mating cycles, corrosion-resistant gold-plated contacts, and a sealed backshell, this connector reduces maintenance downtime and replacement costs in harsh environments. Its compact size, light weight, and reliable performance lower installation time and field failures, delivering a clear ROI for equipment uptime, warranty adherence, and long-term operating efficiency.
