Eaton UTS6JC10E98SZ Connector - IP68/69K
Part Number: UTS6JC10E98SZ
Quick Summary
UTS6JC10E98SZ connector from Eaton Souriau provides IP68/69K waterproof sealing for harsh industrial environments. That sealing and rugged design addresses field challenges like ingress, vibration, and temperature swings that complicate maintenance. It carries IEC 61984 and UL 1977 approvals, plus RoHS exemption 6.c, with CSA-C22.2 in scope for broader North American compliance. Designed for industrial automation wiring harnesses and machinery, it also supports Z-key orientation and straight plug mating to simplify installation and reduce misconnection. In practice, this means longer mean time between failures, lower service costs, and safer, more reliable system integration for demanding applications.
Product Information
Extended Description

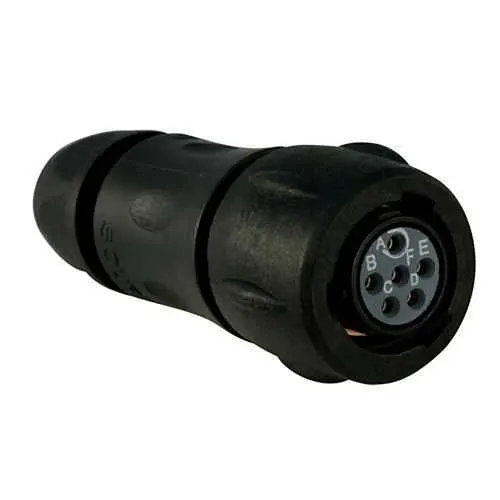

UTS6JC10E98SZ Eaton: Plastic plug, with cable gland backshell, with 6 female solder contacts, IP68/69K in unmated conditions, keying Z; UTS6JC10E98SZ
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC10E98SZ
Product Length/Depth
63.2 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
22 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
7 A IEC 6 A UL
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against gasoline Resistant against mineral oil Resistant against basic bath Resistant against acid bath Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A IEC 6 A CSA 6 A UL
Test voltage
50 V IEC 250 V UL 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Z
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
98
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
IP68/69K sealing in unmated conditions combined with a sealing gland backshell minimizes water ingress and oil exposure, reducing field repairs and extending component life in outdoor equipment, conveyors, and mobile machinery. Six gold-plated solder contacts deliver reliable signal and power transfer, supporting up to 7 A at 50 V, which translates to robust performance for sensors, controllers, and small drive circuits without overloading wires or creating voltage drop. The 1/3 bayonet coupling with a straight plug and Z-key orientation streamlines mating, minimizes installation errors in tight panels, and accelerates field retrofits. Neoprene insert and plastic shell resist oils, fuels, UV exposure, and vibrations while operating from -40 °C to 105 °C, ensuring consistent connectivity across environments. Mating cycles of 250 indicate durable long-term use, and compatibility with the Souriau UTS ecosystem helps standardize harness design. Regulatory compliance with IEC 61984, UL 1977, RoHS exemption 6.c, and CSA-C22.2 supports procurement and audit readiness, while the backshell gland maintains IP integrity during assembly.
Get a Quick Quote for a Eaton UTS6JC10E98SZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC10E98SZ?
Enquire Now
FAQs
The UTS6JC10E98SZ is part of the Eaton Souriau UTS series and uses a 6-contact, solder-cup configuration with a straight plug and Z-key orientation. It fits standard 6-pin harnesses within the Souriau ecosystem, supports cable diameters from 1.5 to 8 mm, and is designed to terminate with a sealing gland backshell for reliable IP68/69K sealing in industrial automation applications.
IP68/69K rating indicates immersion and high-level dust protection even when unmated, which greatly reduces ingress of water, dust, and contaminants. In practical terms, this means longer service intervals, fewer maintenance callbacks, and safer operation in outdoor, wet, or oily factory floor environments, conveyors, and mobile equipment.
Yes. The UTS6JC10E98SZ supports a 1/3 bayonet coupling with secure mating and a 250 mating cycle rating, plus rugged seals and gold-plated solder contacts. This combination provides stable electrical performance under vibrations from 10 to 2000 Hz, minimizing signal integrity loss and reducing rework in dynamic automation lines.
The connector carries IEC 61984 and UL 1977 compliances, RoHS exemption 6.c, and CSA-C22.2 No. 182.3 applicability. These certifications support global procurement, regulatory alignment, and safer sourcing for industrial automation projects, ensuring compatibility with international electrical and safety standards.
Installation benefits include a sealing gland backshell, straight plug mating, and Z-key orientation that minimizes misconnection and speeds harness assembly. Lifecycle advantages come from 250 mating cycles, oil/UV resistance, broad temperature tolerance (-40 to 105 C), and robust environmental sealing, delivering lower maintenance costs and increased uptime for automation equipment and conveyors.
