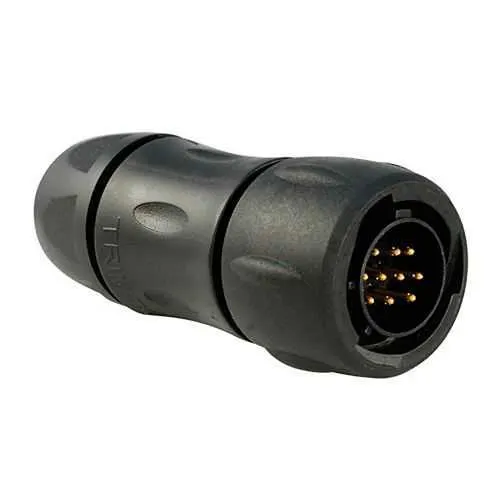

Eaton UTS6JC1210P Plastic IP68/69K Connector - IP68/69K
Part Number: UTS6JC1210P
Quick Summary
UTS6JC1210P is a plastic waterproof IP68/69K plug connector designed for rugged industrial environments. Engineers often struggle with moisture ingress and sealing failures in outdoor or mobile equipment. This part meets CSA-C22.2 No.182.3, UL 1977, and IEC 61984 certifications, confirming safety and interoperability across global panels. Its Sealing Gland backshell, straight orientation, and 1/3 bayonet coupling enable fast, reliable mating while maintaining a robust seal. With a compact 66.7 mm length and 10-pole layout, it supports space-constrained harnesses and simplifies wiring in automation stations, robotic cells, and mobile machinery. The combination of IP68/69K protection and compatible current ratings helps reduce downtime and maintenance in harsh environments.
Product Information
Extended Description
UTS6JC1210P Eaton: Plastic plug, with cable gland backshell, for 10 male contacts, IP68/69K; UTS6JC1210P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1210P
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
35.4 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
5 A UL 6 A IEC
Environmental conditions
REACH Fire & Smoke Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS
Environmental resistance
Resistant against mineral oil Resistant against acid bath Resistant against oil Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
4 A CSA 6 A IEC 5 A UL
Test voltage
50 V IEC 250 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
The IP68/69K sealing provides reliable ingress protection for harsh environments, reducing field failure rates and maintenance costs. This translates to higher uptime in outdoor equipment and mobile machinery, improving overall equipment effectiveness (OEE). The 10 contact positions with a male pin arrangement enable dense, high-reliability power and signal transfer within compact harnesses, supporting efficient automation layouts and streamlined installation. The 1/3 bayonet coupling delivers quick, tool-free mating, which reduces commissioning time and minimizes downtime during routine panel maintenance. A sealing gland backshell ensures robust moisture sealing at the cable entry, enabling long-term reliability when paired with 3 to 12 mm cable diameters. Operating from -40 to 105 °C and with a 250 mating cycle life, the connector withstands demanding environments and repeated field servicing. Compatibility with the UTS family and polyamide insert materials supports durable, cost-effective performance in automation and robotic applications. The 66.7 mm length and 29.7 mm width/height provide a compact footprint suitable for space-constrained control panels, while 35.4 g weight keeps harnesses manageable. With RoHS, UV resistance, and salt spray tolerance (500 hours), the unit meets modern environmental and regulatory expectations, reducing compliance risk and facilitating international installations. Certifications including CSA, UL, and IEC standards reinforce safety, interoperability, and procurement confidence for global projects.
Get a Quick Quote for a Eaton UTS6JC1210P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1210P?
Enquire Now
FAQs
Install by preparing a 3–12 mm cable, crimping 10 male contacts, and fitting the sealing gland backshell. Use the 1/3 bayonet coupling to mate with the corresponding receptacle, ensuring the IP68/69K seal is engaged. Verify the connection is secure and perform a basic continuity check after assembly to confirm proper contact and sealing performance.
The connector supports 5 A per UL and 6 A per IEC, with a test current of 4 A for CSA. It withstands test voltages of 50 V (IEC) and 250 V (CSA/UL). It has 10 contacts and is designed for reliable power and signal transfer in automation environments.
Yes. It is IP68 rated (and IP69K compatible in practice) with sealing gland backshell, UV resistance, RoHS compliance, and resistance to mineral oil, acids, basic baths, and gasoline. Operating temperature ranges from -40 °C to 105 °C, and it endures salt spray for up to 500 hours, making it suitable for outdoor and demanding industrial applications.
The connector uses a 1/3 bayonet coupling for fast, reliable mating. It is rated for up to 250 mating cycles and uses crimp contact technology with male pins. The compact 66.7 mm by ~29.7 mm footprint fits space-constrained control panels while maintaining robust sealing and electrical performance.
Industrial automation, robotics, outdoor equipment, and mobile machinery benefit from the 10-pin, IP68/69K-sealed design, compact form factor, and broad environmental/standards compliance. Applications include harsh-environment harness connections, rugged sensor and actuator networks, and automation panels where uptime and reliability are critical.
