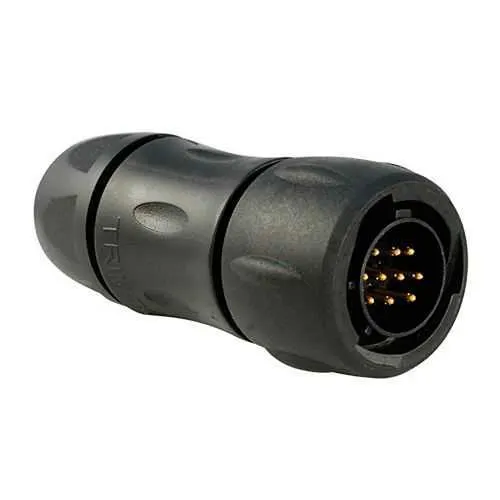

Eaton UTS6JC1210PW Plastic Plug - IP68/69K Waterproof
Part Number: UTS6JC1210PW
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69k connector provides sealed power and signal coupling for harsh environments. In daily installations, moisture ingress, rugged vibration, and awkward backshells can lead to downtime and warranty claims. Certified for IP68 sealing with IEC 61984, UL 1977, and CSA-C22.2 No. 182.3, ensuring compliance across global specs. This 10-contact, straight-plug design with a sealing gland backshell simplifies installation, reduces field maintenance, and supports up to 250 mating cycles. Engineers rely on its compatibility with crimp contacts, 1/3 bayonet coupling, and a compact 66.7 mm length for tight panel spaces. This combination reduces maintenance cycles and supports global compliance across UL, CSA, and IEC standards.
Product Information
Extended Description
UTS6JC1210PW Eaton: Plastic plug, with cable gland backshell, for 10 male contacts, IP68/69K, keying W; UTS6JC1210PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1210PW
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
35.4 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
6 A IEC 5 A UL
Environmental conditions
Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke RoHS REACH
Environmental resistance
Resistant against mineral oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath
Test current
6 A IEC 4 A CSA 5 A UL
Test voltage
250 V CSA 250 V UL 50 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
The IP68/69K waterproof rating, combined with a sealing gland backshell, protects all 10 pin contacts from water, dust, and chemicals, reducing downtime and extending service life in washdown and outdoor environments. This directly lowers maintenance costs while enabling reliable operation on rugged machinery and outdoor control panels. The connector delivers 6 A IEC and 5 A UL ratings at up to 250 V, providing safe, compact power distribution for sensors, actuators, and small motors without oversized hardware. Its compact footprint—66.7 mm long with 29.7 mm width and height—lets you fit more connections in limited panels, improving wiring density and reducing enclosure size. The 1/3 bayonet coupling offers quick mating, robust vibration resistance, and simple field maintenance for conveyors and packaging lines. Operating from -40 °C to 105 °C, UV resistance, and flame/chemical ratings ensure reliability across extreme environments, while RoHS and REACH compliance support global product stewardship. With 250 mating cycles, this Souriau UTS plug stands up to repeated field servicing, lowering lifecycle costs and boosting uptime. The insert is polyamide, the shell is plastic, and the backshell is designed for straightforward cable gland attachment, making installation predictable and repeatable for both new builds and retrofits. Suitable for high-vibration machinery, automotive test rigs, and outdoor automation, the UTS6JC1210PW delivers durable performance with easy interchangeability in the UTS family.
Get a Quick Quote for a Eaton UTS6JC1210PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1210PW?
Enquire Now
FAQs
Install by threading the cable through the optional gland backshell, crimping the 10 male contacts to wires, then mating the straight plug using the 1/3 bayonet coupling. Ensure correct orientation (W) and verify IP68 sealing after mating to prevent ingress in washdown and outdoor environments.
The connector supports 6 A IEC and 5 A UL with a 250 V rating, suitable for power and signal paths in compact automotive and industrial control panels. Always consider mating cycles (250) and operating temperature range (-40 to 105 °C) when sizing for loads.
Yes. It carries IP68 sealing with IP68/69K performance, UV resistance, and RoHS/REACH compliance, plus UL94 V0 flame rating and I2F3 smoke rating, making it viable for outdoor equipment, mining, and washdown areas with stringent safety demands.
Key certifications include UL 1977, CSA-C22.2 No. 182.3, and IEC 61984. These approvals support global deployment and help meet regulatory requirements in U.S., Canada, and international markets.
With 250 mating cycles, a compact footprint, and reliable IP68/69K sealing, this connector reduces maintenance downtime, simplifies replacement, and lowers overall life-cycle costs in automation cabinets and harsh environments.
