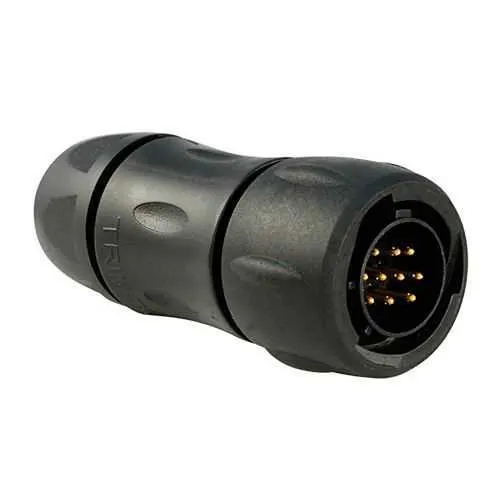

Eaton UTS6JC1210PX Connector - IP68/69K Waterproof
Part Number: UTS6JC1210PX
Quick Summary
The Eaton UTS6JC1210PX is a waterproof IP68/69K plastic connector designed for rugged outdoor and harsh industrial environments. It addresses moisture ingress and field repair costs that plague outdoor installations. Compliant with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, it also features IP68 protection and a 1/3 bayonet coupling for reliable mating in tight spaces. The compact 66.7 mm length, 10-position layout, and straight plug orientation streamline wiring in control panels, while the backshell sealing gland protects against moisture and dust. This combination delivers dependable automation connectivity with cost-effective maintenance and predictable performance for critical machinery and conveyors.
Product Information
Extended Description
UTS6JC1210PX Eaton: Plastic plug, with cable gland backshell, for 10 male contacts, IP68/69K, keying X; UTS6JC1210PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1210PX
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
35.4 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
6 A IEC 5 A UL
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS
Environmental resistance
Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against acid bath
Test current
4 A CSA 6 A IEC 5 A UL
Test voltage
250 V UL 250 V CSA 50 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
Feature → Business Impact → Application: The IP68/69K sealed plastic plug with a sealing gland backshell protects against water, dust, and chemical exposure, reducing maintenance downtime in washdown and outdoor installations. This translates to higher first-pass yield on conveyors and packaging lines, with fewer unscheduled outages and easier compliance with harsh-environment requirements. Application: outdoor automation panels, heavy machinery, and mobile equipment where moisture and cleanliness are critical. Feature → Business Impact → Application: The 1/3 bayonet coupling provides fast, reliable mating even in tight or vibrating environments, shortening installation time and minimizing misalignment risks. Application: robotics cells, material-handling systems, and field-installed sensors. Feature → Business Impact → Application: Polyamide insert and plastic shell offer UV resistance and broad chemical tolerance (oil, gasoline, acid bath), extending service life in exposed locations and reducing replacement cycles. Application: washdown zones, off-road vehicles, and outdoor control cabinets. Feature → Business Impact → Application: Wide operating temperature (-40 °C to 105 °C) and 10-position, straight plug design enable consistent performance across diverse climates, supporting global deployments and scalable automation. Application: international manufacturing, food/beverage lines with strict temperature variations. Feature → Business Impact → Application: Compliance with UL, CSA, and IEC standards plus IP68 rating provides regulatory peace of mind and faster procurement approvals, supporting quality management and supplier audits. Application: aerospace, automotive, and energy sectors where certifications matter.
Get a Quick Quote for a Eaton UTS6JC1210PX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1210PX?
Enquire Now
FAQs
The UTS6JC1210PX uses crimp contacts and a straight plug with a sealing gland backshell, compatible with cables from 3 to 12 mm diameter. It supports a 10-position layout and X orientation, and is designed for simple field assembly with standard Souriau accessories. Ensure proper crimp terminations, seal seating, and alignment before mating to maximize IP68 protection and mating reliability.
Yes. It is rated IP68 for dust and water ingress protection and is UV resistant with RoHS compliance. Certifications include UL 1977, CSA-C22.2 No.182.3, and IEC 61984, aligning with safety and interoperability requirements for industrial automation and control applications.
The connector supports up to 250 mating cycles, ensuring reliable reuse in maintenance cycles. It operates from -40 °C to 105 °C, making it suitable for extreme climates and wide production environments without performance degradation.
Ideal for automation panels, conveyors, outdoor machinery, and washdown environments. The 1/3 bayonet coupling enables quick mating in vibration-prone equipment, while the 10-position layout accommodates robust signal and small power needs typical in control networks and sensor-actuator interfaces.
Its sealed IP68/69K design, durable polyamide insert, and stainless-level resilience reduce ingress-related faults and downtime. Coupled with rapid mating and standard compliance, the connector lowers maintenance costs, extends service life, and accelerates project timelines, contributing to a favorable return on investment for automation upgrades.
