Eaton UTS6JC1210S Connector - IP68/69K Waterproof
Part Number: UTS6JC1210S
Quick Summary
Eaton UTS6JC1210S connector provides a rugged, waterproof connection for industrial equipment applications. In harsh environments, moisture, dust and vibration threaten uptime, so a reliable plug-and-socket solution is essential to maintain performance. Compliant with CSA-C22.2 No.182.3, IEC 61984, and UL 1977, this Souriau UTS series connector offers robust safety and interchangeability. With a 10‑position layout, sealing gland backshell, and straight plug design, it supports scalable power and control networks while reducing installation time and maintenance costs.
Product Information
Extended Description

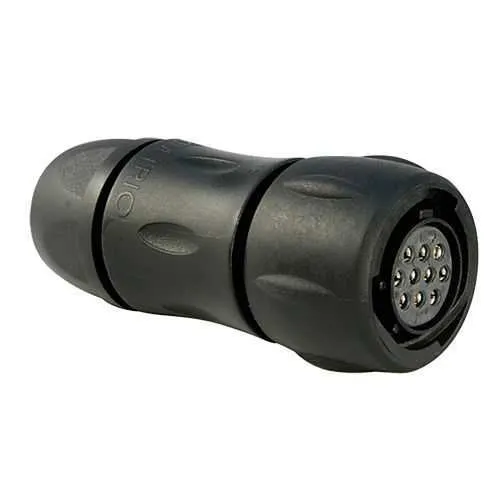

UTS6JC1210S Eaton: Plastic plug, with cable gland backshell, for 10 female contacts, IP68/69K; UTS6JC1210S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1210S
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
35.4 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
5 A UL 6 A IEC
Environmental conditions
Flammability rating UL94 V0 REACH Fire & Smoke RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against oil Resistant against acid bath
Test current
4 A CSA 6 A IEC 5 A UL
Test voltage
250 V UL 250 V CSA 50 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
IP68/IP69K sealing and sealing gland backshell provide robust ingress protection in wet, dusty environments, which translates to fewer field failures and lower maintenance costs in outdoor equipment and machinery. This 10‑cavity plug leverages a polyamide insert and plastic shell for chemical and UV resistance, delivering long service life in industrial settings and reducing replacement cycles. The 66.7 mm length and 29.7 mm width/height enable compact mounting in tight enclosures, while a 12 mm maximum cable diameter support and 3 mm minimum allow flexible cable sizing across control and sensor networks. With 250 mating cycles and 5 A UL / 6 A IEC current ratings (250 V), the connector balances reliability with energy efficiency for low-power automation tasks. Field compatibility is enhanced by the 1/3 bayonet coupling and straight plug geometry, simplifying installation and rework in service environments. Weight is kept at 35.4 g to minimize added load on rotating machinery and weight-sensitive panels. The option to deliver the connector pre-assembled reduces on-site wiring time and accelerates deployment in production lines and outdoor installations.
Get a Quick Quote for a Eaton UTS6JC1210S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1210S?
Enquire Now
FAQs
Begin by selecting a cable diameter within the 3–12 mm range and prepare the conductors for crimp contact. Fit the backshell sealing gland to the cable, then insert the crimp contacts into the 10‑position shell according to the mating layout. Attach the straight plug and tighten the gland to achieve IP68 sealing. Finally, mate with the corresponding socket and perform a continuity test to verify integrity.
Yes. The connector achieves IP68/IP69K protection, UV resistance, and chemical resistance, making it suitable for outdoor deployments, wash-down areas, and challenging industrial environments. Its polyamide insert and plastic shell are designed to withstand exposure to oil, basic baths, and environmental stress while maintaining electrical performance.
The UTS6JC1210S complies with CSA-C22.2 No.182.3, IEC 61984, and UL 1977, ensuring electrical safety, interoperability, and regulatory alignment for diverse markets. This certification set supports reliability claims in systems requiring formal compliance, documentation, and supplier qualification.
Key specs include a 5 A UL / 6 A IEC current rating, 250 V test voltage, 10 contacts, 66.7 mm length, 29.7 mm width, and 29.7 mm height. The connector supports 250 mating cycles and a operating temperature range from -40 °C to 105 °C, making it suitable for transient loads and wide ambient conditions in automation panels.
The connector uses a 1/3 Bayonet coupling for quick mating and reliable retention, along with a sealing gland back shell that simplifies sealing and strain relief. With 10‑position crimp contacts and field-ready assembly, technicians save time during initial wiring and future maintenance, reducing downtime and total cost of ownership in production lines and equipment fleets.
