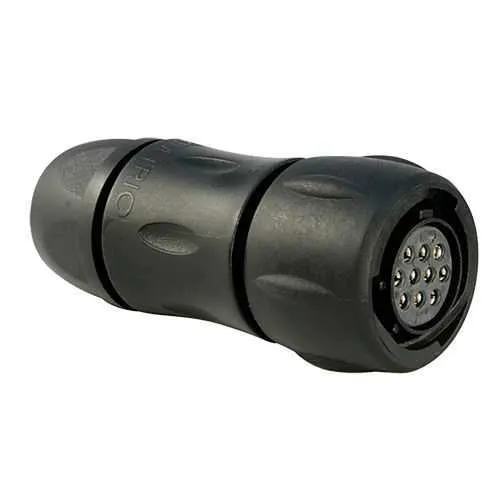

Eaton UTS6JC1210SX Plastic Waterproof Connector - IP68/69K
Part Number: UTS6JC1210SX
Quick Summary
Eaton UTS6JC1210SX is a plastic waterproof connector that secures reliable interconnections in rugged outdoor machinery and vessels. Engineers face water ingress, dirt contamination, and maintenance downtime when wiring in harsh environments. Compliant with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, it provides global regulatory confidence for equipment. This UTS series plug delivers IP68/69K protection, with a compact form factor that fits tight harness routes and fastens to standard backshell hardware. Businesses benefit from reduced field failures, easier integration with existing harnesses, longer service life, and lower maintenance costs across industrial, outdoor, and mobile applications.
Product Information
Extended Description
UTS6JC1210SX Eaton: Plastic plug, with cable gland backshell, for 10 female contacts, IP68/69K, keying X; UTS6JC1210SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1210SX
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
35.4 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
6 A IEC 5 A UL
Environmental conditions
Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH Fire & Smoke RoHS
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil Resistant against gasoline Resistant against acid bath
Test current
5 A UL 6 A IEC 4 A CSA
Test voltage
50 V IEC 250 V UL 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
Feature: IP68/69K rated plastic housing with Sealing Gland backshell protects against water, dust, and contaminants. Business Impact: Significantly reduces ingress-related failures and field service time, cutting downtime and warranty costs. Application: Ideal for mobile machinery, marine equipment, and outdoor automation where exposure to water and dust is routine. Feature: 10 contact layout with crimp sockets and 1/3 bayonet coupling. Business Impact: Simplifies harness design and mating, enabling faster assembly and serviceability while maintaining secure, vibration-resistant connections. Application: Power and signal distribution to sensors and actuators in compact enclosures. Feature: 66.7 mm length, 29.7 mm width, 29.7 mm height, and 35.4 g weight. Business Impact: Lightweight yet robust, easing routing in constrained spaces and reducing overall system weight. Application: Robotics, agricultural machinery, and portable equipment. Feature: Current and electrical ratings of 6 A IEC / 5 A UL with 250 mating cycles. Business Impact: Ensures dependable performance across regulatory environments and extended lifecycle reliability. Application: Factory automation and industrial controls where frequent mating cycles occur. Feature: Environmental resistance including UV stability and resistance to oil, gasoline, and acid baths. Business Impact: Prolongs service life in outdoor and harsh industrial settings, lowering replacement costs. Application: Wind farms, outdoor substations, and service fleets. Feature: Material composition with polyamide insert and plastic shell; straight plug; backshell type Sealing Gland. Business Impact: Improves durability and compatibility with standard connectors while simplifying installation. Application: Any harness that requires a sealed, straight-plug solution. Feature: Compatibility with 10 poles, IP68-rated protection, and X-keying orientation. Business Impact: Enables correct assembly and reliable field interchangeability with current Eaton Souriau families. Application: Multi-circuit wiring in complex installations.
Get a Quick Quote for a Eaton UTS6JC1210SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1210SX?
Enquire Now
FAQs
Begin by verifying cable diameters meet the 3 to 12 mm range. Use the Sealing Gland backshell and straight plug orientation X, then crimp the 10 contact sockets securely. Align the 1/3 Bayonet coupling to mate, ensuring a tactile lock. Confirm IP68/69K sealing is intact before energizing and perform a basic continuity check after installation.
The connector supports 6 A IEC and 5 A UL continuous current, with test currents of 6 A IEC, 5 A UL, and 4 A CSA. Voltage ratings are 50 V IEC and 250 V UL/CSA. It features 10 contacts in a 66.7 mm long housing, designed for crimp contacts and a 250 mating cycle lifecycle.
Yes. It carries IP68 protection, UV resistance, and environmental durability against oil, mineral oil, gasoline, and acid baths. Operating temperature ranges from -40 °C to 105 °C, making it ideal for outdoor, marine, and rugged industrial applications where exposure to harsh elements is common.
The connector complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3. These certifications ensure electrical safety, reliability in North American and international markets, and provide a solid basis for regulatory compliance in equipment utilized in diverse industries.
With up to 250 mating cycles and robust environmental resistance, the UTS6JC1210SX is designed for long life in harsh settings. For maintenance, inspect seals and the backshell for signs of wear, replace damaged components promptly, and keep the mating faces clean to preserve low-contact resistance and IP integrity.
