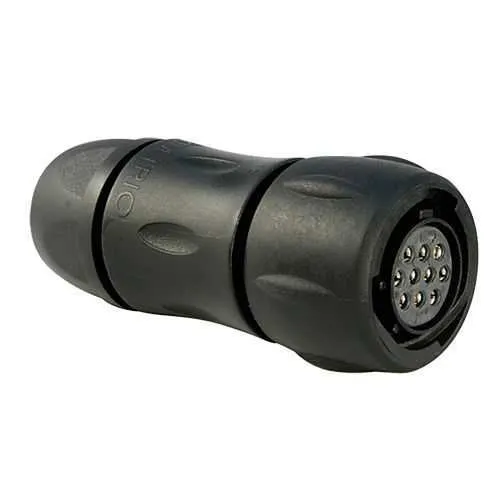

Eaton UTS6JC1210SY Plastic Waterproof IP68/69k Connector
Part Number: UTS6JC1210SY
Quick Summary
Eaton UTS6JC1210SY is a plastic waterproof IP68/69k connector designed for rugged industrial environments and outdoor automation applications. Operators often struggle with moisture ingress, cable strain, and frequent field servicing in harsh sites; this connector addresses sealing, robust coupling, and easy field installation. It carries UL 1977, CSA-C22.2 No.182.3, and IEC 61984 compliance, ensuring safety and interoperability across control panels and machinery. With a 10-contact layout and Y-keyed orientation, it supports scalable I/O in automation systems while offering reliable performance, cost-effective maintenance, and straightforward harnessing for faster commissioning and reduced downtime.
Product Information
Extended Description
UTS6JC1210SY Eaton: Plastic plug, with cable gland backshell, for 10 female contacts, IP68/69K, keying Y; UTS6JC1210SY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1210SY
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
35.4 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
6 A IEC 5 A UL
Environmental conditions
Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath Resistant against oil Resistant against acid bath Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline
Test current
5 A UL 6 A IEC 4 A CSA
Test voltage
250 V CSA 250 V UL 50 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
Feature: IP68/IP69K sealing and backshell with sealing gland provide superior moisture and dust protection, improving reliability in wet or dusty environments → Business Impact: Lower field failure rates and extended equipment life reduce maintenance costs and downtime → Application: Outdoor conveyors and wash-down areas. Feature: 10-contact, crimp socket with 1/3 bayonet coupling delivers robust electrical connectivity in tight spaces → Business Impact: Higher I/O density without increasing connector footprint, enabling compact control panels → Application: Robotic arms and multi-sensor assemblies. Feature: 66.7 mm length and 29.7 mm width/height with 12 mm maximum cable diameter supports flexible harness design → Business Impact: Easier harness routing and compatibility with various cable assemblies, reducing custom cabling needs → Application: Modular automation modules and field-mounted enclosures. Feature: Mating cycles of 250 and operating temperature range from -40 °C to 105 °C ensure long-term durability → Business Impact: Predictable lifecycle and fewer field replacements, lowering total cost of ownership → Application: Industrial environments with wide thermal swings and high vibration. Feature: 10 insert positions with polyamide insert and plastic shell provide chemical and UV resistance → Business Impact: Maintains electrical performance in harsh environments while offering long-term exposure stability → Application: Outdoor machinery, agricultural equipment, and water/power installations.
Get a Quick Quote for a Eaton UTS6JC1210SY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1210SY?
Enquire Now
FAQs
The UTS6JC1210SY uses a straight plug with a 1/3 bayonet coupling and a Y orientation, making it compatible with standard 10‑position harnesses that use crimp contacts. The backshell is a sealing gland type, supporting cable diameters from 3 to 12 mm. Ensure your enclosure has a compatible mating cavity and seal mating surfaces before tightening for IP68/69K integrity.
The connector provides current ratings of 6 A IEC and 5 A UL, with test current at 5 A UL and 6 A IEC. Maximum test voltage is 250 V (CSA/UL) and 50 V (IEC). It supports 10 contacts in a single shell, and the copper crimp contact design ensures reliable signal and small power transmission within its rated limits.
Yes. It carries an IP68 protection rating and a UV-resistant polyamide insert in a plastic shell, with environmental resistance to oils, acids, and mineral oils. It also endures vibrations per IEC 60512-4 and performs across a wide temperature range from -40 °C to 105 °C, making it ideal for outdoor automation, heavy machinery, and wash-down environments.
Plan cable routing to keep within the 3–12 mm diameter range and use the backshell gland to seal the cable entry. With 250 mating cycles, perform periodic checks on the bayonet coupling to avoid loosening due to vibration. The 10‑way configuration supports scalable I/O while maintaining a compact footprint for field upgrades.
The UTS6JC1210SY complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, ensuring safety and interoperability across North American and European control equipment. This helps simplify procurement for multi-region projects and supports regulatory alignment in automation installations.
