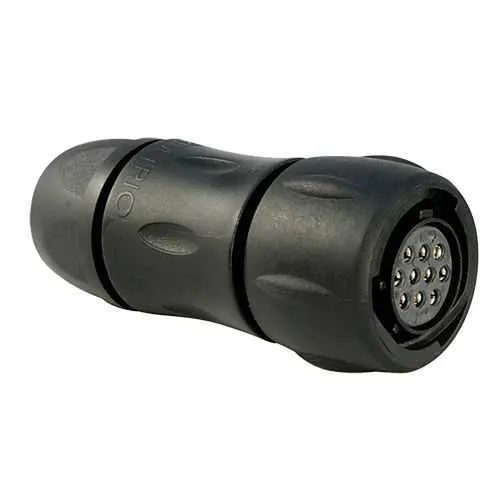

Eaton UTS6JC1210SZ Plug with Gland Backshell - IP68/69K
Part Number: UTS6JC1210SZ
Quick Summary
Eaton UTS6JC1210SZ plug delivers waterproof 10‑pole connections for harsh industrial environments. Moisture ingress and cable strain threaten uptime in outdoor equipment and mobile machinery, making rugged connectors essential. The UTS6JC1210SZ is IP68/69K rated and compliant with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, ensuring reliability in demanding installations. With a Sealing Gland backshell and Z-key orientation using a 1/3 bayonet coupling, it enables fast, secure field installs and dependable sealing. Designed for 3–12 mm cables and a compact 66.7 × 29.7 × 29.7 mm footprint, it supports efficient panel layouts for automation, robotics, and outdoor machinery. This solution translates to lower maintenance costs and increased machine uptime across industrial settings.
Product Information
Extended Description
UTS6JC1210SZ Eaton: Plastic plug, with cable gland backshell, for 10 female contacts, IP68/69K, keying Z; UTS6JC1210SZ
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1210SZ
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
35.4 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
5 A UL 6 A IEC
Environmental conditions
Fire & Smoke REACH RoHS Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against basic bath Resistant against oil Resistant against mineral oil Resistant against gasoline
Test current
4 A CSA 5 A UL 6 A IEC
Test voltage
250 V UL 50 V IEC 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Z
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
The UTS6JC1210SZ provides rugged sealing and protection, carrying IP68/69K protection and UV resistance to minimize moisture ingress and seal failures in outdoor enclosures. This reduces field repairs and extends maintenance intervals, especially in mobile machinery and remote installations. Its 10‑pole layout and 1/3 bayonet coupling streamline mating, shorten downtime, and support reliable connections in automated lines, robotics, and remote sensing setups. The Sealing Gland backshell and the 3–12 mm cable diameter range simplify cable exits and offer robust strain relief, yielding cleaner installations and improved ingress protection in harsh environments. With a polyamide insert and plastic shell, the connector delivers durable, heat‑resistant performance across -40 °C to 105 °C, while meeting UL 1977, CSA, and IEC 61984 standards for compliance. A 250 mating cycle life, straight plug orientation, and Z-key alignment help prevent misalignment and gear damage in busy production settings, contributing to lower replacement costs and higher uptime.
Get a Quick Quote for a Eaton UTS6JC1210SZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1210SZ?
Enquire Now
FAQs
Yes. The UTS6JC1210SZ is a 10‑pole socket designed as a straight plug with a sealing gland backshell. It accepts 3–12 mm cables and uses a 1/3 bayonet coupling for quick, reliable mating. This configuration supports field installation in equipment where space is tight and cable routing is complex, helping technicians achieve consistent sealing and robust electrical contact in difficult environments.
Key electrical ratings include 5 A (UL) / 6 A (IEC) and 250 V test voltage, with up to 250 mating cycles. The connector operates from -40 °C to 105 °C and carries IP68 sealing. It is UV resistant and resistant to oil, basic baths, and gasoline, built from a polyamide insert in a plastic shell with crimp contacts for 10 female sockets.
The UTS6JC1210SZ complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984. These certifications support regulatory approvals for use in automation, heavy equipment, and outdoor installations. Its IP68 rating provides strong ingress protection, while the 1/3 bayonet coupling and sealing gland backshell contribute to reliable, repeatable mating in challenging environments.
The connector is rated for 250 mating cycles, enabling extended use in automated lines and mobile equipment. Its straight plug orientation and Z-key alignment minimize misalignment and wear, while the sealing gland backshell maintains integrity under vibration and cleaning cycles. Together, these features deliver consistent electrical contact, reduced downtime, and lower lifecycle costs.
This connector excels in industrial automation, robotics, outdoor machinery, and marine equipment due to its IP68/69K protection, compact 66.7 × 29.7 × 29.7 mm footprint, 3–12 mm cable range, and 10‑pole configuration. Its rugged construction withstands dust, moisture, oils, and temperature variation, boosting uptime, reducing maintenance, and ensuring reliable long-term performance in harsh environments.
