Eaton UTS6JC124P UTS Waterproof IP68/69k Connector - IP68
Part Number: UTS6JC124P
Quick Summary
The Eaton Souriau UTS6JC124P is a plastic waterproof IP68/69k connector designed for rugged industrial applications. In demanding environments, sealing and mating reliability prevent costly downtime and maintenance. It delivers IP68 protection with standards such as CSA-C22.2 No.182.3, IEC 61984, and UL 1977, providing confidence across certified supply chains. The design supports quick, secure connections for 4-pin configurations, while a broad operating temperature range and robust materials translate to longer service life in industrial automation, robotics, and outdoor equipment. This combination lowers lifecycle costs and reduces field service visits for harsh-environment installations.
Product Information
Extended Description

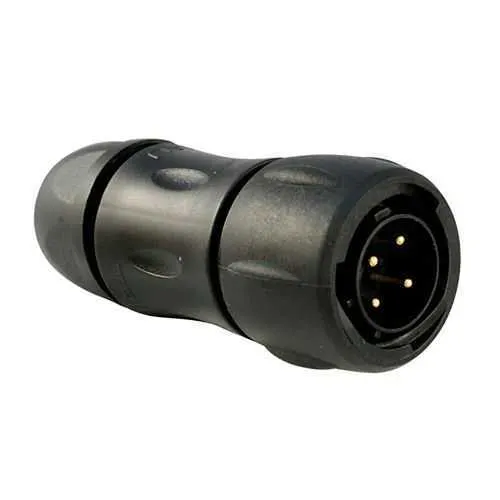

UTS6JC124P Eaton: Plastic plug, with cable gland backshell, for 4 male contacts, IP68/69K; UTS6JC124P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC124P
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
36 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Fitted with:
First mate last break capability Last mate first break capability(optional) Layout with ground cavity
Environmental conditions
RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Resistant against basic bath Resistant against oil Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath
Test current
7 A CSA 16 A IEC 10 A UL
Test voltage
500 V UL 300 V IEC 500 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
500 hour
Feature: IP68/69k sealing and 4-pin plug with 1/3 bayonet coupling. Business Impact: Delivers reliable water and dust ingress protection in outdoor and wash-down environments, reducing corroded contacts and downtime. Application: Conveyor systems and outdoor machinery where ingress resistance is critical. Feature: Straight backshell with sealing gland and ground cavity options. Business Impact: Simplifies installation and maintenance, enabling easier routing and grounding for compact panels. Application: Robotic cells and automation enclosures with strict sealing requirements. Feature: Crimp contact design, 4 cavities, and polyamide insert. Business Impact: Ensures durable, vibration-resistant connections with low contact resistance and predictable mating performance. Application: Industrial power and control circuits in harsh environments. Feature: Wide operating temperature (-40 °C to 105 °C) and UV/oil/gas resistance. Business Impact: Extends service life in extreme climates and under exposure to chemicals, lowering replacement costs. Application: Outdoor equipment, agriculture, and marine-related automation. Feature: Mating cycles up to 250 and cable diameter range 3–12 mm. Business Impact: Improves lifecycle predictability and assembly flexibility for field-installed cables. Application: Field-deployed sensor networks and control panels. Feature: Delivered with connector option and 4-pole layout. Business Impact: Reduces part count and speeds up installation with a ready-to-use, 4-position plug. Application: Standardized panel connections across automation systems.
Get a Quick Quote for a Eaton UTS6JC124P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC124P?
Enquire Now
FAQs
The UTS6JC124P accepts cable diameters from 3 to 12 mm and uses crimp contacts with a 1/3 bayonet coupling. For installation, route the cable through the sealing gland backshell, ensure the ground cavity is correctly positioned, crimp the four male contacts, and mate with the corresponding receptacle. The straight-back design streamlines panel mounting and minimizes misalignment during assembly.
This connector is IP68 rated and supports 16 A IEC current (10 A UL) with test current up to 16 A IEC and test voltage up to 500 V CSA/UL, 300 V IEC. It is RoHS and REACH compliant, with fire rating UL94 V0 and UV and chemical resistance, suitable for extended outdoor and industrial use.
Yes. The 1/3 bayonet coupling and 4-crimp contact configuration provide secure mating, while the plastic housing and sealing gland/backshell construction deliver robust ingress protection. With a wide operating temperature range (-40 °C to 105 °C) and vibration resistance specified by IEC standards, it remains reliable in mobile or exposed automation setups.
The connector complies with CSA-C22.2 No.182.3, IEC 61984, and UL 1977, with RoHS and REACH compliance and UL94 V0 fire rating. It also carries IP68 protection, making it suitable for rigorous industrial installations that require monitored conformance with multiple safety and environmental standards.
With 250 mating cycles, durable polyamide inserts, and a sealing gland backshell, the UTS6JC124P reduces replacement frequency and maintenance visits. Its UV, oil, and chemical resistance preserve performance in outdoor or harsh environments, improving total cost of ownership for automation panels and field equipment.
