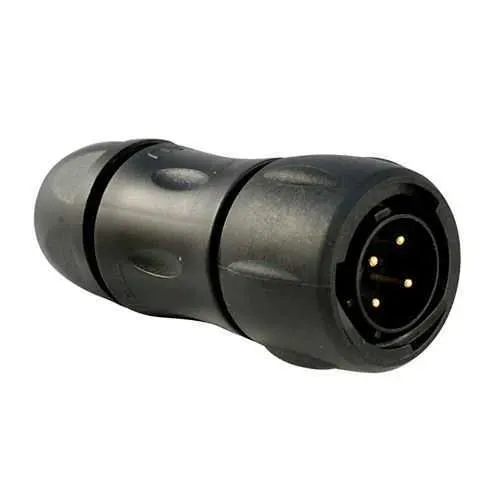

Eaton UTS6JC124PSCR Plug - IP68/69K Waterproof
Part Number: UTS6JC124PSCR
Quick Summary
Eaton UTS6JC124PSCR is a waterproof plastic connector used in harsh industrial automation environments. Moisture ingress in control panels often leads to corrosion and intermittent signals, and this connector helps curb those failures with a robust backshell and sealing gland. Compliances include UL 1977, IEC 61984, and CSA-C22.2 No.182.3 with ROHS exemptions, ensuring global regulatory readiness. By combining 4 gold-plated screw contacts with a durable polyamide shell, it supports reliable field connections while simplifying maintenance. This translates to reduced downtime, easier replacement in the field, and better lifecycle cost for manufacturers and integrators alike. It pairs well with Eaton's UTS ecosystem, enabling scalable, maintenance-friendly deployments across multiple machine types.
Product Information
Extended Description
UTS6JC124PSCR Eaton: Plastic plug, with cable gland backshell, for 4 male screw contacts, IP68/69K; UTS6JC124PSCR
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC124PSCR
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
36 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
10 A UL 16 A IEC
Fitted with:
First mate last break capability Layout with ground cavity Last mate first break capability(optional)
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH RoHS
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against acid bath Resistant against oil Resistant against mineral oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
10 A UL 7 A CSA 16 A IEC
Test voltage
300 V IEC 500 V CSA 500 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Screw
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
500 hour
Feature: IP68/IP69K waterproof rating with a sealing gland backshell. Business Impact: Substantial protection against dust, moisture, and wash-down contamination, reducing panel failures and extending service intervals. Application: Ideal for outdoor machinery, food and beverage lines, and automated wash-down environments. Feature: 4-position male screw contacts with gold plating. Business Impact: High-reliability connections with corrosion resistance and stable signal integrity, lowering fault-related downtime. Application: Sensor and actuator bundles in robotics and conveyor systems. Feature: Wide operating temperature range from -40 °C to 105 °C. Business Impact: Uncomplicated climate management and reduced need for additional enclosure heating or cooling. Application: Automotive, outdoor equipment, and industrial automation in harsh climates. Feature: Cable diameter range 3–12 mm and straight plug with 1/3 bayonet coupling. Business Impact: Flexible cabling options and quick, tool-friendly mating cycles, accelerating installation and maintenance. Application: Field deployments with varied cable assemblies and modular system designs. Feature: 250 mating cycles and robust polyamide shell. Business Impact: Durable lifecycle performance with predictable wear and lower replacement costs over time. Application: Frequent cartography of plug-in modules in control panels and robotic stations. Feature: Compliance with UL 1977, IEC 61984, CSA-C22.2 No.182.3 and ROHS exemptions. Business Impact: Regulatory confidence for global manufacturing and distribution, reducing certification lead times. Application: Global projects requiring cross-border approvals and supplier reliability. Feature: Straight plug with sealing gland backshell for easy installation and reliable environmental sealing. Business Impact: Faster field assembly and consistent ingress protection across assemblies. Application: Modular automation enclosures and panel-to-cield connections in harsh environments.
Get a Quick Quote for a Eaton UTS6JC124PSCR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC124PSCR?
Enquire Now
FAQs
The UTS6JC124PSCR is a straight plug designed for UTS-series assemblies, featuring a sealing gland backshell and a 1/3 bayonet coupling. It accepts 3–12 mm cables, uses four gold-plated screw contacts, and is delivered with connector hardware, making field upgrades straightforward and minimizing special-tool requirements.
Key specs include IP68 immersion protection, operating temperature from -40 °C to 105 °C, current rating up to 10 A (UL) / 16 A (IEC), and 250 mating cycles. These factors together deliver continuous operation in wash-down, vibration-heavy, and outdoor conditions while preserving signal integrity.
Yes. With IP68 rating and a sealing gland backshell, it resists moisture, dust, and cleaning fluids. The UV-resistant polyamide housing also maintains performance over years of exposure, making it suitable for outdoor equipment and food-grade or industrial wash-down environments.
It carries UL 1977, IEC 61984, and CSA-C22.2 No. 182.3 compliances, with ROHS exemptions in place. These certifications help streamline global procurement, reduce re-certification risk, and support safer, standards-aligned deployments across regions.
The combination of 250 mating cycles, durable gold-plated contacts, and a robust IP68/IP69K design reduces maintenance intervals and replacement costs. Wide operating temperature tolerance and compact 66.7 mm length also minimize enclosure changes, lowering total cost of ownership in long-running automation systems.
