Eaton UTS6JC124S IP68/69K Waterproof Connector - IP68/69K
Part Number: UTS6JC124S
Quick Summary
The Eaton Souriau UTS series plastic waterproof IP68/69K connector delivers reliable sealing for rugged industrial cables. Field deployments often battle water ingress, corrosion, and maintenance downtime, which this connector helps mitigate. It is IP68 rated and certified to UL 1977, IEC 61984, and CSA C22.2 No. 182.3, supporting safe, compliant operation. With a 4‑cavity layout and a compact 66.7 mm length, it fits in tight panels and demanding environments. By combining reliable sealing with easy backshell options, it reduces installation time and total cost. Designed for demanding automation and outdoor applications, it provides a robust foundation for durable field wiring.
Product Information
Extended Description

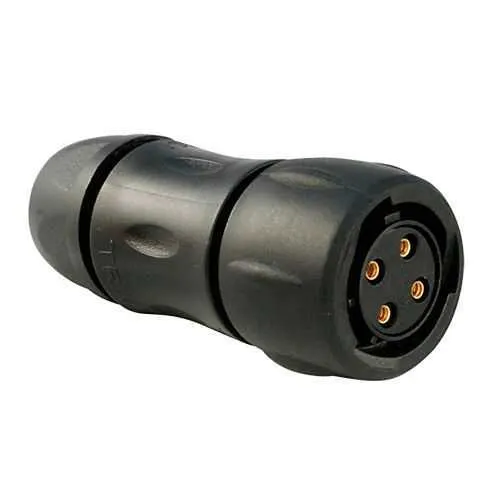

UTS6JC124S Eaton: Plastic plug, with cable gland backshell, for 4 female contacts, IP68/69K; UTS6JC124S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC124S
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
36.1 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Fitted with:
Last mate first break capability(optional) First mate last break capability Layout with ground cavity
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH Flammability rating UL94 V0 RoHS Fire & Smoke
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against gasoline Resistant against oil Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath
Test current
16 A IEC 10 A UL 7 A CSA
Test voltage
300 V IEC 500 V UL 500 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
500 hour
IP68/IP69K rugged sealing for reliable operation in wet, dusty, or oily environments. Feature → Business Impact → Application: The IP68/69K protection reduces water ingress risk by orders of magnitude, limiting corrosion and maintenance costs in outdoor equipment and mobile machinery. Application: outdoor sensors, heavy machinery, and harsh environment panels. Feature → 4‑position, straight plug with 1/3 bayonet coupling → Faster, reliable mating with fewer misalignments, improving installation efficiency on automated lines and in tight enclosures. Application: 4‑cavity harnesses in industrial automation. Feature → Backshell with sealing gland and cable gland backshell → Enhanced cable management and strain relief, lowering ingress paths and extending service life. Application: panel-to-cable connections in robotics and process equipment. Feature → Qualified with UL 1977, IEC 61984, CSA C22.2 No. 182.3 → Confidence in regulatory compliance and safety across North American and international facilities. Application: safety-critical automation installations. Feature → Mating cycles up to 250 and 16 A IEC current rating with 300 V voltage → Long life and robust electrical performance, reducing replacement costs and downtime in high-cycle applications. Application: demanding automation controllers and motor drives.
Get a Quick Quote for a Eaton UTS6JC124S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC124S?
Enquire Now
FAQs
The UTS6JC124S is a 4‑cavity, straight plug connector with a 1/3 bayonet coupling and backshell gland. It accepts four female crimp contacts and is designed for wiring harnesses in industrial automation, outdoor equipment, and robotics where IP68 protection and reliable mating are required.
The connector is IP68 rated and certified to UL 1977, IEC 61984, and CSA C22.2 No. 182.3, ensuring regulatory compliance for industrial and consumer safety standards across North America and other regions.
The UTS6JC124S operates from -40 °C to 105 °C, making it suitable for extreme environments such as outdoor installations, automotive settings, and high-temperature industrial processes.
Yes. With IP68 protection, UV resistance, and chemical resistance (oil, gasoline, basic/acid baths), plus UV durability and a sealed backshell, it is well suited for outdoor and harsh industrial environments while maintaining performance over time.
Key benefits include a 250 mating cycle rating, a 16 A IEC current rating, and 300 V IEC voltage, which together deliver reliable ongoing performance, reduced maintenance, and lower total cost of ownership in high‑duty automation and control applications.
