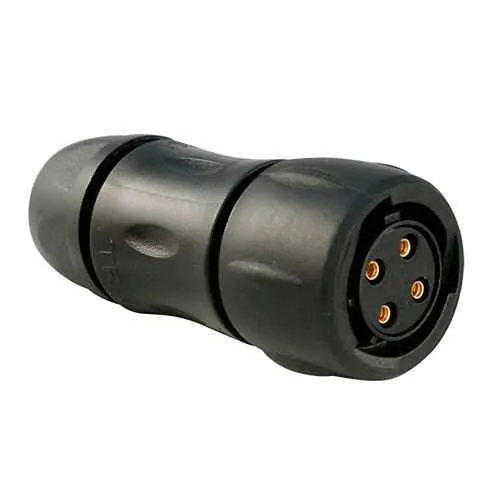

Eaton UTS6JC124SSCR Plug Connector - IP68/69K
Part Number: UTS6JC124SSCR
Quick Summary
Eaton Souriau UTS6JC124SSCR is a rugged waterproof plug for outdoor machinery and harsh environments. In real-world installs, ingress protection and vibration drive maintenance downtime, so a resilient interconnect is essential. It carries IP68/69K protection, RoHS exemption 6.c, and UL/CSA/IEC compliance to meet global standards. Designed for 4-position configurations with gold-plated screws, it streamlines field installation and reduces maintenance costs while delivering dependable performance in extreme temperatures and dusty, wet environments. This connector is part of the UTS family, offering reliable compatibility for industrial automation and outdoor equipment with robust sealing and field-service-friendly design.
Product Information
Extended Description
UTS6JC124SSCR Eaton: Plastic plug, with cable gland backshell, for 4 female screw contacts, IP68/69K; UTS6JC124SSCR
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC124SSCR
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
36.1 g
Compliances
ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Fitted with:
Layout with ground cavity First mate last break capability Last mate first break capability(optional)
Environmental conditions
REACH RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against gasoline Resistant against basic bath Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
16 A IEC 7 A CSA 10 A UL
Test voltage
500 V CSA 500 V UL 300 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Screw
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
500 hour
Feature: IP68/IP69K sealing and 4-cavity layout with 1/3 bayonet coupling; Business Impact: Provides superior water ingress protection and fast, secure mating in dirty environments; Application: Outdoor automation panels and mining equipment where reliability matters. Feature: Cable diameter range 3–12 mm and backshell with sealing gland; Business Impact: Enables flexible harness design and sealed installations, reducing leakage risk and service calls; Application: Heavy machinery power and control harnesses. Feature: 16 A IEC / 10 A UL current rating with 500 V CSA/UL test voltage; Business Impact: Supports higher load demand and safer operation in demanding installations; Application: Industrial drives and control circuits. Feature: Operating temp -40 °C to 105 °C, 250 mating cycles, UV and oil resistance; Business Impact: Long service life and predictable performance in harsh environments; Application: Automotive, agricultural, and outdoor equipment. Feature: Ground cavity, gold-plated contacts, polyamide insert, and sealing gland; Business Impact: Ensures reliable conductivity, corrosion resistance, and easy field maintenance; Application: Equipment where precision grounding and durability are critical.
Get a Quick Quote for a Eaton UTS6JC124SSCR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC124SSCR?
Enquire Now
FAQs
The UTS6JC124SSCR supports a cable diameter range from 3 to 12 mm and is delivered with a sealing gland backshell. It features a 4‑cavity layout with gold-plated screw contacts and a straight backshell for straightforward installation in harness assemblies. This makes it ideal for off‑line splices or panel‑to‑cable connections in tough environments.
The IP68/69K rating ensures exceptional protection against immersion, dust ingress, and high-pressure wash-downs. For outdoor and harsh industrial settings, this translates to reduced maintenance, lower failure rates due to moisture or contaminants, and greater uptime for automation panels, mining equipment, and agricultural machinery.
The connector provides a 16 A current rating (IEC) and 10 A (UL) with a test voltage up to 500 V CSA/UL and 300 V IEC. It uses gold-plated screw contacts in a 4‑pin configuration, supporting reliable power/control signaling for demanding industrial applications.
Yes. It adheres to RoHS exemption 6.c and is listed under UL 1977, CSA-C22.2 No.182.3, and IEC 61984, with IP68/69K sealing. These certifications ensure safer operation, regulatory compliance, and compatibility across global supply chains for equipment used in hazardous or regulated environments.
Leverage the straight, 1/3 bayonet coupling design and the backshell’s sealing gland to ensure a robust seal in challenging sites. The 66.7 mm length and 29.7 mm dimensions fit compact enclosures, while the 250 mating cycles and wide operating temperature range support long intervals between maintenance, reducing total cost of ownership in automation projects.
