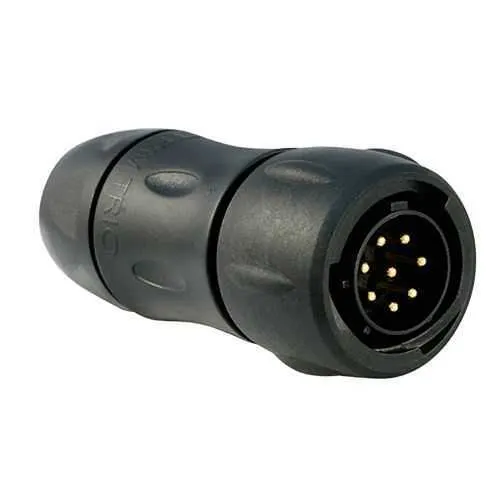

Eaton UTS6JC128P Plastic Waterproof Connector - IP68/69K
Part Number: UTS6JC128P
Quick Summary
The Eaton Souriau UTS series plastic waterproof IP68/69k connector provides rugged, sealed electrical interfacing for harsh industrial environments. Many engineers struggle with water ingress, dust, and vibration that prematurely degrade electrical connections. This plug supports eight crimped pins and 1/3 bayonet coupling, delivering reliable mating cycles and a certified level of protection. With IP68/IP69K sealing and broad compliance to UL, CSA, and IEC standards, it’s well-suited for machinery, robotics, and outdoor equipment. The combination of a durable polyamide insert, backshell sealing gland, and straight plug orientation offers installation flexibility, while the 10 A current rating supports typical control and sensor circuits in demanding applications.
Product Information
Extended Description
UTS6JC128P Eaton: Plastic plug, with cable gland backshell, for 8 male contacts, IP68/69K; UTS6JC128P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC128P
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
35 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
10 A IEC 10 A UL
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against acid bath Resistant against mineral oil Resistant against oil
Test current
7 A CSA 10 A UL 10 A IEC
Test voltage
80 V IEC 500 V UL 500 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #16
8
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K rated sealing protects against water and dust ingress, reducing field failures and maintenance costs while extending component life in outdoor or submerged equipment. Application: industrial machinery, outdoor robotics, marine-impacted environments. Feature → Business Impact → Application: 8-position, crimp contact design supports compact, reliable wiring for control circuits, enabling easier panel layouts and faster commissioning. Application: automation panels, machine builds, and equipment retrofits. Feature → Business Impact → Application: 1/3 bayonet coupling delivers quick, secure mating with minimal tooling, cutting downtime during assembly and service. Application: conveyor systems, robotic arms, and field-deployed sensors. Feature → Business Impact → Application: operating temperature range -40 °C to 105 °C and UV resistance provide resilience in harsh climates, reducing outages and replacement cycles. Application: outdoor kiosks, agricultural machinery, and heavy-duty equipment. Feature → Business Impact → Application: polyamide insert and sealing gland backshell improve chemical and environmental resistance, lowering total cost of ownership through improved reliability. Application: chemical plants, mining equipment, and offshore environments. Feature → Business Impact → Application: 10 A current rating with 80 V voltage handling supports common controller and I/O circuits, enabling standardized power delivery while maintaining safety margins. Application: PLC interfaces, sensors, and actuator connections in demanding industrial settings.
Get a Quick Quote for a Eaton UTS6JC128P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC128P?
Enquire Now
FAQs
The UTS6JC128P uses standard 8-position crimp contacts and a sealing gland backshell designed for the UTS series. Its straight plug and 1/3 bayonet coupling enable straightforward mating with compatible receptacles. This simplifies integration into existing control panels and field devices, reducing redesign costs and ensuring reliable electrical connections across new builds or retrofits.
This connector is rated for 10 A current and up to 80 V per IEC standards, with a test current of 7 A CSA/10 A UL/IEC and a mating life of about 250 cycles. It supports robust control and sensor circuits, balancing performance with long-term durability in demanding environments.
Yes. It is IP68-rated and designed to withstand water and dust ingress in harsh environments. The UV resistance and material selection (polyamide insert with a plastic shell) contribute to long service life in outdoor installations, while the sealing gland backshell provides reliable protection in submerged or wet locations.
The UTS6JC128P complies with UL 1977, IEC 61984, and CSA-C22.2 No. 182.3, among others. These certifications validate safety, interoperability, and performance in industrial automation. For customers, they mean easier regulatory approvals, safer operation, and confidence in using this connector in mission-critical equipment.
Its 250 mating cycles and sealed IP68/69K design reduce maintenance frequency and field failures, translating to lower downtime and replacement costs. The straight plug and bayonet coupling speed up assembly, while the UV- and chemical-resistant materials extend service life in tough environments, delivering lower total cost of ownership over the equipment’s lifecycle.
