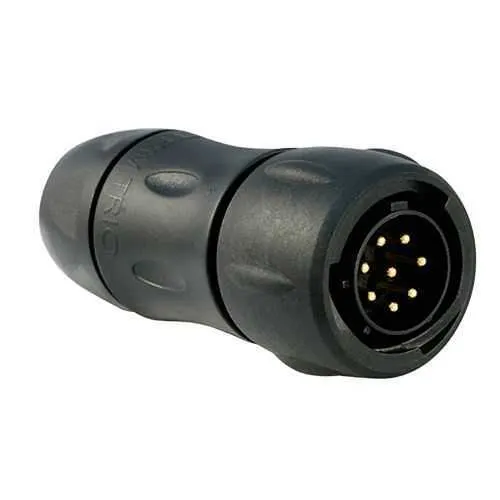

Eaton UTS6JC128PW Plastic Waterproof Connector - IP68/69k
Part Number: UTS6JC128PW
Quick Summary
The Eaton Souriau UTS6JC128PW connector is a rugged plastic waterproof IP68/69k solution designed for harsh industrial environments. Many systems struggle with moisture ingress and unreliable seals that drive maintenance costs and downtime. UL 1977, CSA C22.2 No.182.3, and IEC 61984 certifications back its performance, while IP68 protection and a fire/smoke rating support durability in demanding locations. For engineers seeking a reliable eight-contact plug, this UTS option delivers field-installation ease and strong compliance across automation, conveyors, and mobile equipment. With features like a sealing gland backshell and a straight plug with keying W, it reduces rework and supports scalable upgrades in real-world production lines.
Product Information
Extended Description
UTS6JC128PW Eaton: Plastic plug, with cable gland backshell, for 8 male contacts, IP68/69K, keying W; UTS6JC128PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC128PW
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
35 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
10 A IEC 10 A UL
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH Flammability rating UL94 V0 RoHS Fire & Smoke
Environmental resistance
Resistant against acid bath Resistant against mineral oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A CSA 10 A IEC 10 A UL
Test voltage
80 V IEC 500 V CSA 500 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #16
8
Salt spray
500 hour
IP68/IP69k sealing provides superior ingress protection, reducing water and dust-related failures and lowering maintenance costs in outdoor and washdown environments. Feature → Business Impact → Application: Waterproof reliability translates to longer equipment life and less unscheduled downtime on conveyors and mobile machinery, where exposure to moisture is common. The 8-pin Crimp contact design supports compact power and signal delivery, delivering 10 A current capacity for actuators and sensors, which lowers connector count and simplifies wiring on automation panels. Application: conveyors, robotics, mobile equipment. The 1/3 Bayonet coupling enables quick mating and demating, cutting downtime during changeovers while maintaining high retention under vibration. Application: field service and autonomous lines. The backshell with Sealing Gland improves strain relief for 3–12 mm cables, reducing impact from cable movement in harsh environments. Application: rugged industrial installations. Operating between -40 and 105 C, the connector remains reliable from cold starts to hot production cycles. This broad range supports global deployments in automotive, food processing, and material handling. The eight male crimp contacts ensure robust mating cycles up to 250, delivering consistent performance over the product lifecycle. Application: high-vibration settings in heavy machinery. Compliance with UL 1977, CSA, and IEC 61984 further assures procurement teams of regulatory alignment, while its UV resistance and RoHS/REACH considerations address sustainability goals. These aspects collectively improve installation efficiency, traceability, and total cost of ownership for industrial systems.
Get a Quick Quote for a Eaton UTS6JC128PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC128PW?
Enquire Now
FAQs
Plan for a straight plug with a sealing gland backshell and 3–12 mm cable diameter. Use the W orientation to ensure proper mating and rely on crimp contacts rated for 10 A. Maintain IP68 protection by following the backshell seal installation and verify the 66.7 mm length and 29.7 mm width/height fit in the enclosure. Expect up to 250 mating cycles with correct installation.
Current rating is 10 A IEC/UL, with a test current of 7 A CSA/IEC/UL. Voltage ratings include 80 V IEC and 500 V CSA/UL. The eight contacts are crimp type and the assembly supports 3–12 mm cable diameters, making it suitable for compact power and signal runs in automation panels.
Yes. It delivers IP68 protection (waterproof and dust-tight) and IP69K-rated sealing for demanding washdown or high-pressure environments. The backshell sealing gland and UV-resistant plastic help maintain performance over time, even in sunlight, oil exposure, or fluctuating temperatures typical of outdoor manufacturing or mining equipment.
The connector is aligned with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, ensuring compliance for electrical connectors in industrial equipment. It also carries a fire/smoke rating (I2F3 per NFF 16101/16102) and a UL94 V0 flammability rating, supporting safety and environmental requirements in global deployments.
With up to 250 mating cycles and a robust backshell design, maintenance intervals are extended and downtime is reduced during connector changes. The 8-pin, crimped configuration simplifies wiring, while the sealing gland backshell provides strain relief for 3–12 mm cables, contributing to lower rework costs and improved reliability on harsh-duty automation lines.
