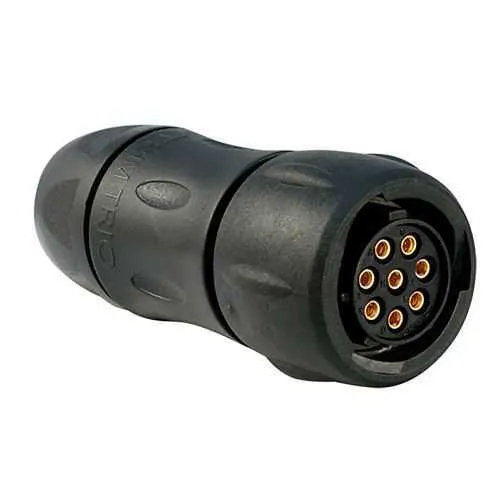

Eaton UTS6JC128S Plug Connector - IP68/IP69K
Part Number: UTS6JC128S
Quick Summary
The Eaton Souriau UTS6JC128S is a plastic waterproof IP68/69K plug connector for rugged industrial equipment. Moisture, dust, and vibration are constant challenges in outdoor and mobile machinery, and unreliable seals drive downtime. It complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, with RoHS and REACH environmental standards, and delivers IP68 sealing for long life. With 8 crimp contacts, a 10 A rating, and a broad -40 °C to 105 °C operating range, the UTS6JC128S ensures dependable power and signal in harsh conditions. Backed by a sealing gland backshell and straightforward 1/3 bayonet coupling, installation is faster and maintenance simpler in demanding industrial settings.
Product Information
Extended Description
UTS6JC128S Eaton: Plastic plug, with cable gland backshell, for 8 female contacts, IP68/69K; UTS6JC128S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC128S
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
35 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
10 A IEC 10 A UL
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Flammability rating UL94 V0 REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke RoHS
Environmental resistance
Resistant against gasoline Resistant against basic bath Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil
Test current
10 A IEC 10 A UL 7 A CSA
Test voltage
500 V UL 500 V CSA 80 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #16
8
Salt spray
500 hour
IP68/69K waterproof design paired with a sealing gland backshell reduces ingress risk in submerged or high-pressure spray environments, cutting unplanned downtime and extending equipment life. In practice, this means field teams can confidently connect sensors and actuators on offshore machinery, agricultural equipment, or mobile robots without frequent reseating. Eight female crimp contacts support both power and data in a single compact unit, simplifying cable routing, reducing part count, and shortening assembly time on the line. The 10 A rating and 500 V test voltage enable reliable power delivery and signal integrity across automation panels, while keeping a compact form factor. Durable polyamide insert and plastic shell resist chemical exposure and UV aging, lowering replacement costs in harsh environments and ensuring long-term performance. Compliance with UL 1977, CSA-C22.2 No.182.3, IEC 61984, RoHS, REACH, and UL94 V0 demonstrates regulatory alignment and market readiness for global deployments. Installation advantages include straight plug orientation, 1/3 bayonet coupling, and a backshell sealing gland, which streamline field assembly and maintenance. The UTS6JC128S is designed for long lifecycle automation lines where reliability, ease of service, and minimal downtime are paramount.
Get a Quick Quote for a Eaton UTS6JC128S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC128S?
Enquire Now
FAQs
Begin by selecting cables in the 3 to 12 mm diameter range and crimping the eight crimp contacts correctly. Attach the sealing gland backshell to the plastic shell, then align the straight plug with the mating receptacle. Use the 1/3 bayonet coupling to secure the connection and ensure an IP68 seal. Consider optional Last Mate First Break features if your maintenance strategy requires capless disconnects.
The connector carries IP68 sealing (also suitable for IP69K environments), and complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984. It also adheres to RoHS and REACH environmental standards and uses UL94 V0 flammability rated materials, supporting safe operation in regulated industrial settings.
Yes. The connector operates reliably from -40 °C up to 105 °C, making it suitable for outdoor, automotive, and industrial installations exposed to wide temperature swings and harsh operating conditions.
The unit provides a 10 A current rating (IEC/UL) and supports up to 500 V test voltage (UL/CSA). It has 8 contacts, mating cycles of 250, and a 66.7 mm length with a 29.7 mm width and height, which suits compact panel layouts while maintaining robustness in harsh environments.
The UTS6JC128S uses a Straight Plug, N orientation, and 1/3 Bayonet coupling for quick mating, with a Sealing Gland backshell. It is designed for compatibility within the UTS series, supports 3–12 mm cable diameters, and is available with optional Last Mate First Break features for maintenance efficiency. The connector shell is plastic with Polyamide inserts, and the assembly is suited for demanding automation lines.
