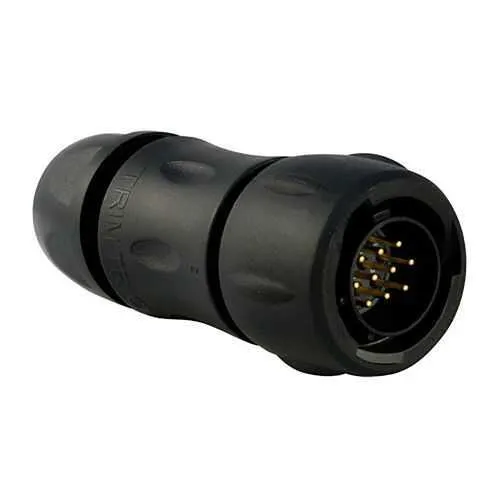

Eaton UTS6JC12E10PW Connector - IP68/69K
Part Number: UTS6JC12E10PW
Quick Summary
Eaton UTS6JC12E10PW is a plastic waterproof IP68/69K connector designed for rugged industrial environments. In field deployments, moisture ingress and vibration can compromise reliability, so a robust sealing and quick-mating design matters. The product carries UL 1977, IEC 61984, CSA-C22.2 No.182.3 certifications and RoHS exemption 6.c, aligning with safety and compliance needs in automation and machinery. With a straight plug, a backshell sealing gland, and 10 gold-plated solder contacts, it delivers dependable performance in demanding outdoors or in-pit installations. Designed for Souriau UTS compatibility, it supports efficient installation, reduced maintenance, and predictable outcomes for engineers and procurement teams, helping safeguard uptime and total cost of ownership.
Product Information
Extended Description
UTS6JC12E10PW Eaton: Plastic plug, with cable gland backshell, with 10 male solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC12E10PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E10PW
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
31.1 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c
Current rating
10 A UL 16 A IEC
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against gasoline Resistant against oil Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
10 A UL 7 A CSA 16 A IEC
Test voltage
300 V IEC 500 V UL 500 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
IP68/IP69K protection and a backshell sealing gland provide robust moisture and dust resistance, reducing downtime in washdown and outdoor environments. This translates to improved equipment availability and lower maintenance costs on automated lines and outdoor sensors, where contaminants threaten signal integrity. The 10 gold-plated solder contacts offer reliable electrical performance with corrosion resistance, supporting precise motor control and sensor communication in harsh settings while maintaining low contact resistance over time. The 1/3 bayonet coupling with a straight plug enables fast, tool-free mating and secure retention, minimizing field service time and risk of misalignment during routine maintenance or relocations. The neoprene insert and plastic shell balance durability with lightweight handling, improving installer productivity on conveyor networks and mobile equipment. With operating temperatures from -40 °C to 105 °C and a mating life of 250 cycles, this connector delivers steady performance across automotive, robotics, and industrial automation applications. UL, IEC, and CSA compliance further simplify procurement and system integration while supporting RoHS requirements for modern machinery. The compact 66.7 mm length, 29.7 mm width, and 29.7 mm height enable dense panel layouts and flexible cable routing, allowing engineers to design cleaner, more compact control cabinets and enclosures without compromising reliability.
Get a Quick Quote for a Eaton UTS6JC12E10PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E10PW?
Enquire Now
FAQs
The UTS6JC12E10PW ships as a plug with a sealing gland backshell and a straight mating interface, designed for Souriau UTS compatibility. It accepts cables with a diameter of 3 to 12 mm and uses 10 gold-plated solder contacts in a 1/3 bayonet coupling. The connector is rated for up to 250 mating cycles, simplifying installation in new builds or field service tasks while ensuring a robust, weatherproof connection.
Electrical ratings include 10 A UL, 16 A IEC at 300 V IEC and 500 V UL/CSA, with a test current of 10 A UL and 16 A IEC and a test voltage of 300 V IEC / 500 V UL / CSA. Operating temperature spans from -40 °C to 105 °C, enabling reliable operation in extreme environments and mixed indoor/outdoor applications common in automation systems.
Yes. Its IP68 rating, UV and chemical resistance, and a sealing gland backshell make it suitable for outdoor machinery, mobile equipment, and washdown environments. The compact form factor and 66.7 mm length support tight panel layouts, while the 10-pin solder arrangement handles signal and power needs in robotics, conveyors, and field sensors without compromising reliability.
The UTS6JC12E10PW complies with UL 1977, IEC 61984, and CSA-C22.2 No.182.3. It also carries RoHS exemption 6.c, reflecting its suitability for regulated industrial equipment and robotic systems, and helping ensure conformity with common safety and environmental requirements across global manufacturing facilities.
Engineers can expect reliable long-term service thanks to gold-plated contacts and a 250 mating cycle rating, reducing replacement frequency. The IP68/69K sealing minimizes washdown damage, while the neoprene insert and sealing gland backshell simplify field servicing. Compatibility with standard Souriau UTS accessories supports scalable installations and predictable total cost of ownership in automation projects.
