Eaton UTS6JC12E10PY Plastic Waterproof IP68/69k Connector - IP68/69K Rating
Part Number: UTS6JC12E10PY
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69k connector provides sealed, high-reliability power and signal connections for rugged automation equipment. Engineers frequently battle ingress, vibration, and compromised seals that drive maintenance and downtime; this connector helps mitigate those pain points with proven sealing and robust construction. This model meets UL 1977, IEC 61984, and CSA-C22.2 No.182.3 certifications, delivering tested safety and compatibility for industrial environments. With a 10-contact arrangement, gold-plated solder contacts, and a sealing gland backshell, it enables fast, code-compliant installations while enabling long-term cost reduction and predictable performance in harsh settings.
Product Information
Extended Description

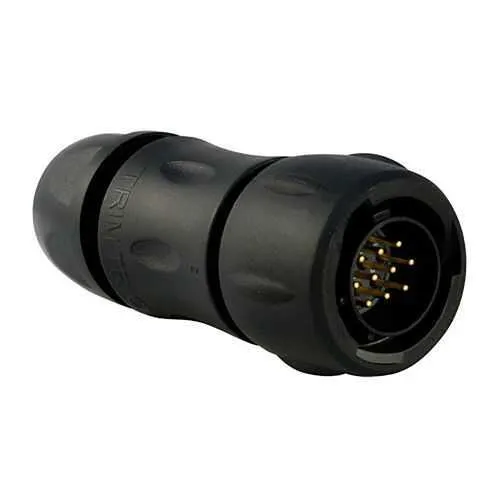

UTS6JC12E10PY Eaton: Plastic plug, with cable gland backshell, with 10 male solder contacts, IP68/69K in unmated conditions, keying Y; UTS6JC12E10PY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E10PY
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
31.1 g
Compliances
ROHS exemption 6.c UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil Resistant against acid bath Resistant against gasoline Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath
Test current
7 A CSA 10 A UL 16 A IEC
Test voltage
300 V IEC 500 V UL 500 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69k waterproof rating in unmated conditions provides superior ingress protection, reducing field failures and warranty costs in outdoor equipment and dusty environments. This translates to fewer service calls and higher line availability for automated production lines and outdoor sensor networks. Feature → 10 gold-plated solder cup contacts delivers reliable electrical connectivity with corrosion resistance, improving downstream signal integrity in latency-sensitive control loops and robotic end-effectors. Application: marine, mining, and outdoor industrial installations where contact reliability matters. Feature → 250 mating cycles and a 16 A IEC / 10 A UL current rating ensure durable, repeatable connections for equipment that cycles frequently, boosting maintenance cycles and Mean Time Between Failures (MTBF). Application: conveyor systems, wind turbines, and portable test rigs. Feature → 1/3 bayonet coupling and straight plug with a backshell sealing gland streamline quick assembly and rework, reducing installation time by minutes per connector and lowering labor costs. Application: panel-to-device harnesses in control cabinets and machine enclosures. Feature → Operating temperature range -40 °C to 105 °C and UV and chemical resistance (mineral oil, acid/ basic baths) support long-term reliability in harsh environments. Application: outdoor automation, robotics in harsh indoor/outdoor spaces, and marine equipment. These specifications align with long-tail keywords such as IP68 waterproof connector, Souriau UTS series, bayonet coupling, sealing gland backshell, gold-plated solder contacts, and industrial automation connectors, enabling robust, compliant deployments while addressing common objections about sealing performance and maintenance overhead.
Get a Quick Quote for a Eaton UTS6JC12E10PY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E10PY?
Enquire Now
FAQs
The UTS6JC12E10PY is a straight plug with a sealing gland backshell designed to mate with standard Souriau UTS series backshells. Its 1/3 bayonet coupling allows quick, secure mating, while the 3–12 mm cable diameter range accommodates common field cables. For best results, ensure the mating interface is clean and the undersized seals are correctly seated before engagement.
Key specs include 10 contacts with gold plating, current ratings of 16 A (IEC) / 10 A (UL), test voltage of 300 V (IEC) / 500 V (UL/CSA), and 250 mating cycles. These parameters translate to reliable power and signal transfer in automated systems, with adequate voltage headroom and service life for frequent connect/disconnect cycles.
Yes. It achieves IP68 protection (unmated conditions) and 105 °C operating temperature range, plus resistance to UV exposure, mineral oil, acids, bases, gasoline, and other common contaminants. This makes it well-suited for outdoor machinery, marine equipment, and harsh industrial process environments.
The connector complies with UL 1977, IEC 61984, and CSA-C22.2 No.182.3, with RoHS exemptions. These certifications support electrical safety, interoperability, and environmental compliance, reducing regulatory risk in regulated markets and easing supplier qualification for defense, energy, and heavy industry applications.
With sealing gland backshells and robust IP68/69k sealing, maintenance intervals can be extended, reducing field maintenance and downtime. The durable mating cycle rating and corrosion-resistant contacts improve longevity, lowering replacement costs and boosting overall equipment availability in high-use automation scenarios.
