Eaton UTS6JC12E10PZ Connector - IP68/69K Waterproof
Part Number: UTS6JC12E10PZ
Quick Summary
Eaton UTS6JC12E10PZ connector provides waterproof IP68/69K protection for reliable power and signal transmission in harsh industrial environments. In wet, oily, or vibration-prone facilities, standard connectors often fail due to ingress, corrosion, or loose contacts. UL 1977, IEC 61984, and CSA-C22.2 No.182.3 certifications (along with RoHS exemption 6.c) reinforce its regulatory readiness. The combination of rugged sealing and durable copper/gold-plated contacts translates to longer service life, reduced field failures, and lower maintenance costs. By leveraging the Souriau UTS series design, you gain compatibility with existing panels and faster installation, delivering measurable business value such as improved uptime and safer, compliant wiring in demanding applications.
Product Information
Extended Description

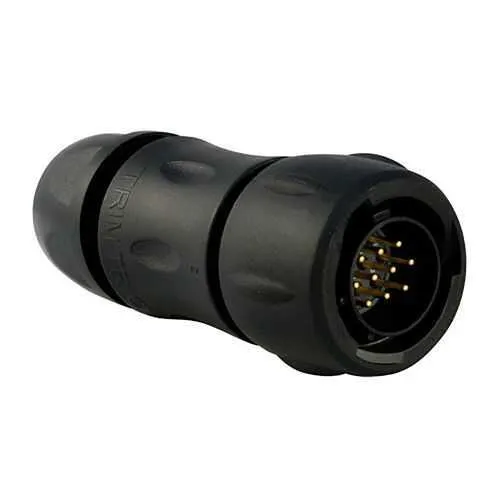

UTS6JC12E10PZ Eaton: Plastic plug, with cable gland backshell, with 10 male solder contacts, IP68/69K in unmated conditions, keying Z; UTS6JC12E10PZ
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E10PZ
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
31.1 g
Compliances
ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against oil Resistant against gasoline Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A IEC 7 A CSA 10 A UL
Test voltage
500 V CSA 300 V IEC 500 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Z
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K sealing provides ingress protection against water, dust, and oil, reducing downtime and corrosion risk in outdoor or splash-prone equipment. This translates to longer service intervals and improved reliability in packaging lines, conveyors, and hydraulic systems. Feature → 1/3 Bayonet coupling enables quick mating and secure retention, decreasing field maintenance time and labor costs while preserving seal integrity in rugged environments. Application: mobile machinery and offshore equipment where fast, reliable connections matter. Feature → 10 contacts with gold plating and Solder Cup contact type ensures low contact resistance and robust termination, boosting signal integrity for sensors, controllers, and motor drives. Application: industrial automation and control panels. Feature → Cable diameter range of 3–12 mm and backshell with Sealing Gland supports flexible cabling and straightforward field termination, reducing inventory complexity. Application: machine builds with variable cable sizes. Feature → Operating range -40 to 105 °C and 16 A IEC / 10 A UL current rating ensures operation across temperature swings and electrical loads, enhancing system resilience. Application: heavy-duty equipment operating in extreme environments. Feature → Neoprene insert, plastic shell, and IP68 rating deliver long-term reliability under UV exposure and harsh conditions, supporting outdoor deployments and high-durability automation solutions. Application: outdoor control boxes and machinery in industrial plants.
