Eaton UTS6JC12E10S Waterproof Connector - IP68/69K
Part Number: UTS6JC12E10S
Quick Summary
Eaton UTS6JC12E10S waterproof connector delivers rugged, IP68/69K sealing for reliable field wiring in harsh industrial environments. Engineers often struggle to maintain seals and secure cables in outdoor, vibration-prone applications, leading to leaks and downtime. It carries UL 1977 and IEC 61984 certifications plus RoHS compliance to meet global standards and customer requirements. With a straight plug, 1/3 bayonet coupling, and a sealing gland backshell, field connections are faster and more reliable. For OEMs and service teams, this means lower downtime, easier maintenance, and a scalable path for demanding automation projects.
Product Information
Extended Description

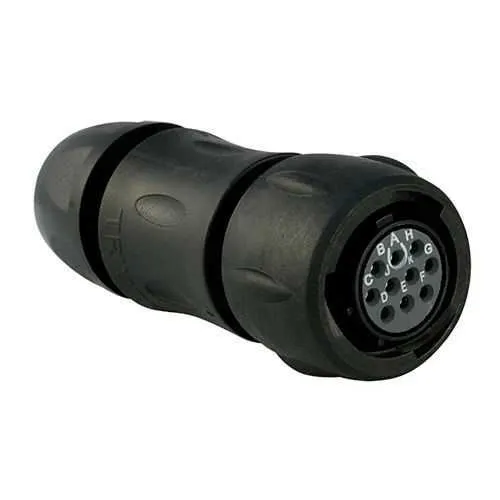

UTS6JC12E10S Eaton: Plastic plug, with cable gland backshell, with 10 female solder contacts, IP68/69K in unmated conditions; UTS6JC12E10S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E10S
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
32.6 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against mineral oil Resistant against acid bath Resistant against basic bath Resistant against oil Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A IEC 10 A UL 7 A CSA
Test voltage
300 V IEC 500 V CSA 500 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
IP68/IP69K sealing combined with a 1/3 bayonet coupling delivers immersion-ready performance for harsh environments. This design minimizes ingress of water, oil, and contaminants, reducing failure rates and warranty costs. Applications include outdoor automation, mobile machinery, and washdown areas where uptime directly drives production efficiency. 10 contact positions with gold-plated solder cups ensure reliable signal integrity and corrosion resistance in demanding environments. Gold plating maintains low contact resistance and long-term performance even under frequent mating cycles. Application: sensor bundles and control circuits where precise signal transfer matters. Mating cycles rated at 250 and a broad operating temperature from -40 °C to 105 °C enable dependable service in cold starts and hot operations. This translates to extended connector life, lower maintenance intervals, and reduced total cost of ownership. Application: equipment exposed to wide temperature swings and high vibrations in field deployments. Flexible cable compatibility from 3 to 12 mm diameters, with a sealing gland backshell and a straight plug design, simplifies installation and reduces harness rework. This supports faster deployments and easier stocking for maintenance teams. Application: panel-to-harness connections in compact, sealed interfaces for rugged machinery. Compliance with RoHS, UL 1977, IEC 61984, and CSA standards, along with impressive salt spray resistance (500 hours) and UV endurance, ensures regulatory alignment and long-term durability. This minimizes compliance risk while enabling multi-region deployments across automation projects.
Get a Quick Quote for a Eaton UTS6JC12E10S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E10S?
Enquire Now
FAQs
The UTS6JC12E10S uses a straight plug with a 1/3 bayonet coupling and a sealing gland backshell. It is designed to fit 3–12 mm cable diameters and supports 10 contact positions. For correct installation, ensure the backshell is sealed and that the mating connector aligns with the N orientation for reliable IP68 sealing and vibration resistance.
This connector complies with UL 1977, IEC 61984, CSA-C22.2 No.182.3, and RoHS exemptions. It offers IP68 protection, a 16 A IEC current rating, 300 V IEC test voltage, and 250 mating cycles, making it suitable for global industrial applications requiring regulatory conformity and durable field performance.
Yes. The IP68/IP69K-rated plastic housing with a sealing gland backshell is designed for immersion, oil, and chemical resistance, plus UV stability. Operating from -40 °C to 105 °C and with salt spray tolerance, it is well-suited for outdoor automation, mobile machinery, and washdown areas where harsh conditions and uptime are critical.
Key specs include 66.7 mm depth, 29.7 mm height and width, and a weight of 32.6 g for a 10-position connector. The backshell is straight with a sealing gland, and the connector supports 3–12 mm cable diameters. Plan for 66.7 mm of insertion depth and ensure the mating connector aligns for quick, reliable engagement.
With 250 mating cycles, robust sealing, and high resistance to fluids and UV exposure, this connector reduces field maintenance and downtime. The gold-plated contacts maintain low resistance over time, while regulatory compliance simplifies multi-region deployments, delivering lower warranty exposure and faster installation across international automation projects.
