Eaton UTS6JC12E10SW IP68/69K Connector - 10 Contacts
Part Number: UTS6JC12E10SW
Quick Summary
UTS6JC12E10SW is a plastic waterproof IP68/69k connector designed for rugged industrial and outdoor electrical applications. Engineers often struggle with moisture ingress, seal degradation, and field-maintenance downtime in harsh environments. It carries IP68/69K protection along with UL 1977 and IEC 61984 compliance, plus CSA-C22.2 and RoHS exemptions to support safety and interoperability. Its compact, lightweight design and 10-contact configuration help control panels, automation racks, and outdoor equipment meet reliability targets while simplifying installation. By incorporating with Eaton Souriau ecosystems, it enables faster procurement and consistent performance across machines, delivering measurable reductions in maintenance and lifecycle costs.
Product Information
Extended Description

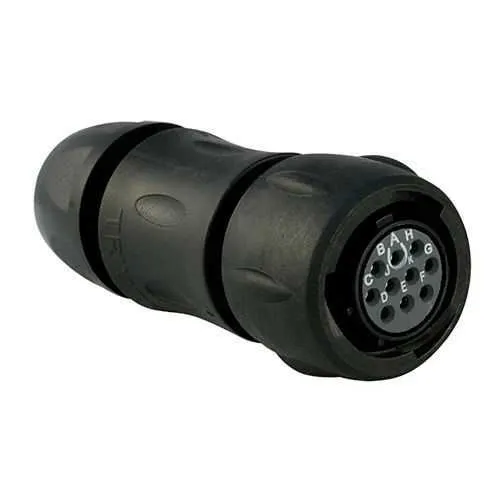

UTS6JC12E10SW Eaton: Plastic plug, with cable gland backshell, with 10 female solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC12E10SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E10SW
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
32.6 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against acid bath Resistant against oil Resistant against gasoline Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath
Test current
10 A UL 16 A IEC 7 A CSA
Test voltage
500 V CSA 500 V UL 300 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
Feature: IP68/IP69K sealing provides rugged protection against water, dust, and wash-down cleaning. Business Impact: Reduces downtime and maintenance costs in harsh environments, enabling longer service intervals. Application: Outdoor machinery, process automation panels, marine equipment. Feature: Ten gold-plated solder cup contacts deliver reliable signal and power transfer with corrosion resistance. Business Impact: Improves connection integrity and reduces early wear or corrosion-related faults, boosting uptime in demanding applications. Application: Sensor arrays, servo drives, and control circuits. Feature: 1/3 bayonet coupling and straight plug orientation streamline field mating and quick releases. Business Impact: Speeds assembly and reduces installation time, lowering labor costs on large installations. Application: On-site panel connections and equipment harnesses. Feature: Cable diameter range 3–12 mm and backshell sealing gland support flexible harnessing. Business Impact: Maximizes compatibility with common industrial cables, simplifying procurement and reducing the need for adapters. Application: Control cabinets, PLC enclosures, and rugged machinery. Feature: Operating temperature range −40 °C to 105 °C and 250 mating cycles ensure reliability in extreme conditions. Business Impact: Extends service life in temperature swings and repeated mating cycles, improving total cost of ownership. Application: Heavy-duty automation, mining equipment, agricultural machinery. Feature: Plastic shell, Neoprene insert, and 12-shell size with gold plating meet stringent industry standards. Business Impact: Compatible with established Eaton Souriau families, enabling scalable integration across product lines. Application: OEM connector families and modular automation systems.
