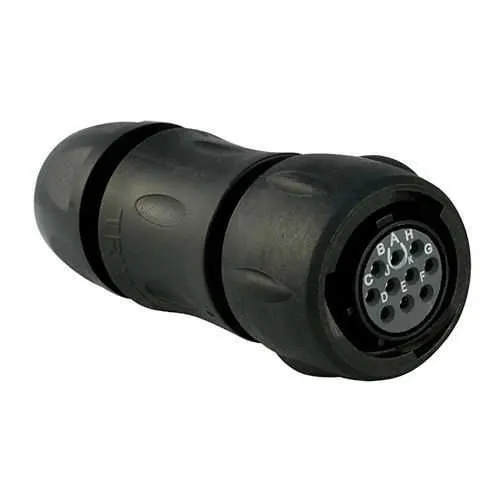

Eaton UTS6JC12E10SY Plastic Waterproof IP68/69K Connector
Part Number: UTS6JC12E10SY
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69k connector enables rugged, sealed interconnections for harsh industrial environments. Operators often face moisture ingress, dust, and cable strain that lead to downtime and costly maintenance. This family aligns with UL 1977, IEC 61984, and CSA-C22.2 No.182.3 while delivering IP68 protection for safe, compliant field installations. With gold-plated solder contacts, a sealing gland backshell, and Y-keying, it integrates smoothly into Souriau UTS accessory ecosystems. The result is lower lifecycle costs and faster service in automation panels, outdoor equipment, and heavy machinery.
Product Information
Extended Description
UTS6JC12E10SY Eaton: Plastic plug, with cable gland backshell, with 10 female solder contacts, IP68/69K in unmated conditions, keying Y; UTS6JC12E10SY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E10SY
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
32.6 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
16 A IEC 10 A UL
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against gasoline Resistant against oil Resistant against mineral oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath
Test current
7 A CSA 16 A IEC 10 A UL
Test voltage
300 V IEC 500 V CSA 500 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
IP68/69K sealing and rugged plastic housing protect delicate circuits from moisture, dust, and chemical exposure, reducing ingress-related failures and extending equipment uptime. This translates to tangible reliability gains, fewer warranty calls, and lower maintenance overhead in outdoor automation cells and marine-grade installations. The 10-contact arrangement supports multi-signal control and sensor bundles, enabling compact harnessing while maintaining signal integrity through gold-plated solder cup contacts and corrosion resistance. Quick mating via 1/3 bayonet coupling and a straight backshell streamline installation in tight enclosures, cutting downtime during field assembly and servicing. A neoprene insert with a sealing gland backshell provides robust ingress protection, UV resistance, and long-term performance even after exposure to harsh environments. With mating cycles rated at 250 and a broad cable diameter range (3–12 mm), this connector balances durability with flexibility for evolving automation layouts. Compliance to RoHS exemption 6.c and established automotive and industrial standards supports cost-effective procurement and fewer redesigns across production lines.
Get a Quick Quote for a Eaton UTS6JC12E10SY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E10SY?
Enquire Now
FAQs
To install, align the Y-keyed plug with the mating receptacle, engage the 1/3 bayonet coupling until it seats, then secure the Sealing Gland backshell to the cable gland. Ensure the insert is Neoprene and the contacts are gold-plated for corrosion resistance. Verify IP68 integrity after installation and inspect cable diameter within the 3–12 mm range for a reliable seal.
The UTS6JC12E10SY carries a 16 A current rating per IEC, 10 A per UL, and supports up to 300 V IEC. Testing also covers 7 A CSA in certain configurations. These ratings enable reliable power and signal transmission for multi-circuit harnesses in automation panels while maintaining protection against short circuits and arcing under normal operating conditions.
Yes. It is rated IP68, with a sealing gland backshell and neoprene insert designed to withstand moisture ingress, UV exposure, and rugged vibrations. The combination of gold-plated contacts and robust plastics ensures long-term performance in harsh outdoor settings, including outdoor equipment, conveyors in damp facilities, and marine or agricultural machinery.
This connector complies with UL 1977, IEC 61984, and CSA-C22.2 No.182.3, with RoHS exemption 6.c. These certifications support safe integration into automotive, industrial automation, and machinery control systems, while enabling compliance signaling for regulated equipment and supplier documentation.
The 250 mating cycles rating indicates strong lifecycle performance for frequently serviced automation lines. Gold-plated solder cups resist oxidation, reducing contact resistance over time. The IP68/69K sealing, UV resistance, and 66.7 mm length with a 3–12 mm cable range give installers flexibility and lower replacement risk, contributing to improved total cost of ownership in rugged environments.
