Eaton UTS6JC12E10SZ UTS Series Connector - IP68/69K
Part Number: UTS6JC12E10SZ
Quick Summary
The Eaton Souriau UTS6JC12E10SZ plastic waterproof IP68/69K connector provides a sealed, robust link for industrial automation. Engineers often struggle with moisture, dust, and vibration that threaten uptime and safety. Certified to IEC 61984, UL 1977, and CSA-C22.2 No.182.3, it supports compliant, interoperable connections in demanding environments. In addition, its IP68/69K sealing, 10-way layout, and gold-plated solder-cup contacts help reduce maintenance and retrofit costs, while delivering reliable performance in harsh applications. Its compact 66.7 mm length and straight backshell simplify panel routing and installation across a range of industrial setups.
Product Information
Extended Description

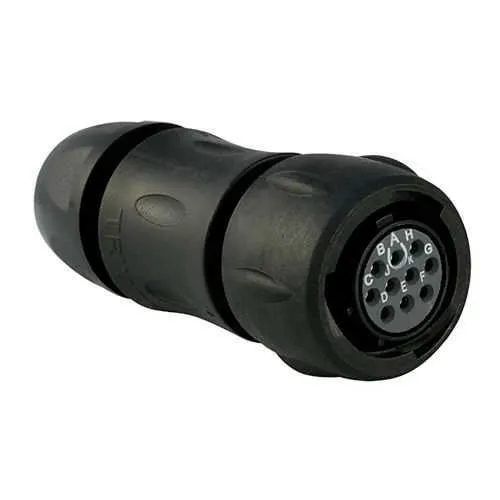

UTS6JC12E10SZ Eaton: Plastic plug, with cable gland backshell, with 10 female solder contacts, IP68/69K in unmated conditions, keying Z; UTS6JC12E10SZ
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E10SZ
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
32.6 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
16 A IEC 10 A UL
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against basic bath Resistant against oil Resistant against mineral oil Resistant against acid bath Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A CSA 16 A IEC 10 A UL
Test voltage
500 V UL 500 V CSA 300 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Z
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
Feature → IP68/69K sealing and rugged plastic construction ensures dust-tight and water ingress resistance even in washdown environments; Business Impact → reduces unplanned downtime and replacement costs; Application → outdoor equipment, food and beverage machinery, and process plants where exposure to moisture and particulate matter is high. Feature → 10-contact, gold-plated solder cup contacts deliver robust signal and power transfer with corrosion resistance; Business Impact → improves long-term electrical reliability and reduces rework; Application → control panels, sensor arrays, and drive systems requiring reliable connectivity. Feature → 1/3 bayonet coupling and straight backshell enable fast mating and field servicing; Business Impact → shorter commissioning times and easier maintenance with fewer tools; Application → modular automation cabinets and field-installed connectors. Feature → wide operating temperature (-40 °C to 105 °C) and 250 mating cycles; Business Impact → supports harsh environments and durable lifecycle performance; Application → rugged industrial automation, mining equipment, and machinery exposed to temperature variation. Feature → cable diameter range 3–12 mm and sealing gland back shell provide flexible compatibility; Business Impact → simplifies field wiring and reduces stocking of multiple backshells; Application → a broad set of cables and sensor/actuator deployments in tough environments.
Get a Quick Quote for a Eaton UTS6JC12E10SZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E10SZ?
Enquire Now
FAQs
Plan for a straight backshell with a 3–12 mm cable diameter range and a sealing gland back shell. Use the 1/3 bayonet coupling for quick mating, ensuring the mating surfaces are clean and aligned. The 66.7 mm length and 29.7 mm width help with panel routing, while the 10-pin layout fits standard control wiring schemes.
The connector is rated for 16 A IEC and 10 A UL, with a test current of 7 A CSA. It supports voltages up to 500 V (UL/CSA) and 300 V (IEC). The 10 gold-plated solder cup contacts provide reliable, corrosion-resistant connections for power and signal paths.
Yes. The UTS6JC12E10SZ is IP68 rated (unmated), part of the IP68/69K family, and features a sealing gland backshell and neoprene insert to withstand moisture, dust, and washdown processes typical in process automation and food/pharma applications.
The 1/3 bayonet coupling provides fast, tool-free mating and unmating, while the straight backshell simplifies field routing. These features reduce commissioning time and facilitate routine maintenance in automated lines and remote installations.
With a mating lifecycle of up to 250 cycles and gold-plated contacts, the UTS6JC12E10SZ offers durable electrical performance with low contact resistance drift. Combined with IP68/69K sealing, this results in lower maintenance costs and longer service intervals in challenging environments.
