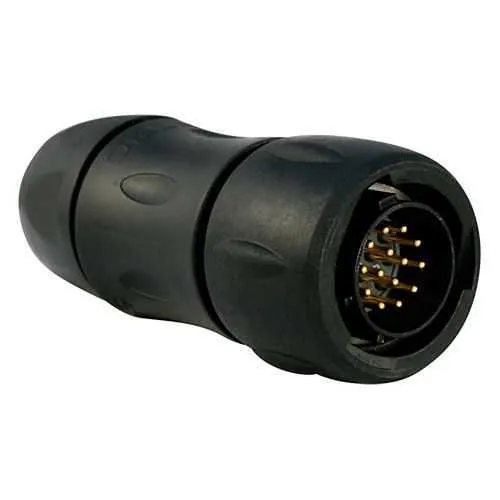

Eaton UTS6JC12E14P Plug - IP68/69K Waterproof
Part Number: UTS6JC12E14P
Quick Summary
Eaton UTS6JC12E14P is a waterproof IP68/69K plastic connector designed for harsh industrial wiring in demanding environments. End-users often battle ingress, vibration, and field repair challenges that drive maintenance costs and downtime. Certified to UL 1977, CSA-C22.2 No.182.3, and IEC 61984 with ROHS exemption 6.c, it supports reliable, compliant installations. With 14 gold-plated solder contacts and a sealing gland backshell, 1/3 bayonet coupling, and a compact footprint, this solution delivers faster field assemblies and longer service life while enabling robust control system connections in manufacturing and outdoor applications.
Product Information
Extended Description
UTS6JC12E14P Eaton: Plastic plug, with cable gland backshell, with 14 male solder contacts, IP68/69K in unmated conditions; UTS6JC12E14P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E14P
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
32 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
4.5 A UL 5 A IEC
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
Resistant against gasoline Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath
Test current
5 A IEC 4.5 A CSA 4.5 A UL
Test voltage
250 V UL 250 V CSA 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
14
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
14
Number of cavity #20
14
Salt spray
500 hour
Feature: IP68/69K waterproof rating with sealing gland backshell → Business Impact → Application: Protects sensitive electronics from water, dust, and chemical exposure, reducing unplanned downtime and extending equipment life; Ideal for outdoor enclosures, washdown environments, and mobile equipment. Feature: 14 contacts with gold plating → Business Impact → Application: Ensures low contact resistance, high conductivity, and corrosion resistance for reliable signal and power transmission in automation networks. Feature: 1/3 bayonet coupling with straight plug → Business Impact → Application: Faster mating, easier maintenance, and vibration resistance in tight spaces; suited for panel-to-culk assemblies and mobile machines. Feature: Operating range -40 °C to 105 °C; UV and chemical resistance → Business Impact → Application: Stable performance across diverse climates and harsh oils, guaranteeing uptime in extreme industrial settings. Feature: Mating cycles up to 250; 66.7 mm length; 14-position layout → Business Impact → Application: Predictable lifecycle and scalable I/O in control panels and sensor networks, reducing rework and inventory complexity.
Get a Quick Quote for a Eaton UTS6JC12E14P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E14P?
Enquire Now
FAQs
The UTS6JC12E14P is a straight 14-position plug from the UTS series designed for compatibility with Souriau UTS receptacles. It uses a sealing gland backshell and supports cable diameters from 3 to 12 mm. With a 66.7 mm length and 29.7 mm width/height, it fits common panel cutouts and standard field wiring practices, enabling straightforward upgrades without rewiring.
Its IP68 rating (IP68/69K unmated) protects against water and dust ingress, while the gold-plated contacts resist corrosion. The operating temperature range of -40 °C to 105 °C, UV resistance, and resistance to gasoline and mineral oil provide reliable performance across outdoor, washdown, and oily industrial settings, reducing maintenance frequency and extending component life.
The UTS6JC12E14P complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, with ROHS exemption 6.c. These certifications support safety, compatibility with industrial control equipment, and regulatory compliance for deployments in North American and international markets.
This is a 14-position plug with gold-plated solder contacts, rated 4.5 A UL and 5 A IEC (test current 5 A IEC; 4.5 A CSA/UL), and a voltage rating up to 250 V UL/CSA with 32 V IEC. The arrangement supports robust signal/power distribution in control systems and sensors, with 14 cavities for expanded I/O.
The 250 mating cycles and IP68/69K sealing reduce downtime and field faults, lowering maintenance costs over the connector’s life. Its quick-mating design minimizes labor costs during servicing, while its robust materials and ratings provide predictable performance in extreme environments, improving overall equipment availability and asset uptime.
