Eaton UTS6JC12E14PW Plastic Waterproof Connector - IP68/69K
Part Number: UTS6JC12E14PW
Quick Summary
Eaton UTS6JC12E14PW is a waterproof plastic connector for rugged industrial wiring. Engineers often struggle to keep seals intact under vibration, chemical exposure, and harsh temperatures. This design aligns with IEC 61984, UL 1977, and ROHS exemption 6.c to support compliant installations across industries, including control cabinets and outdoor equipment. With a 14-pin solder-contact layout and a bayonet coupling, it delivers reliable power and signal connectivity while reducing maintenance cycles and downtime in automation environments.
Product Information
Extended Description

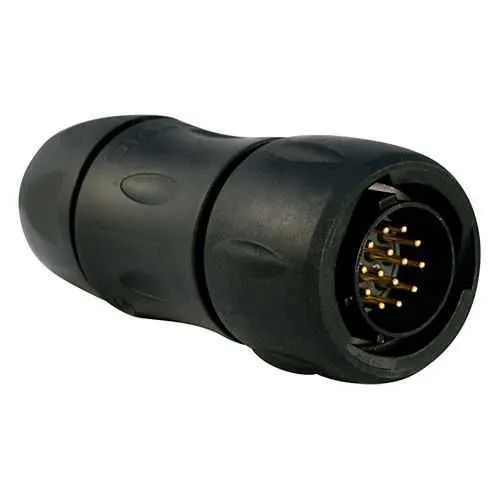

UTS6JC12E14PW Eaton: Plastic plug, with cable gland backshell, with 14 male solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC12E14PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E14PW
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
32 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details)
Current rating
4.5 A UL 5 A IEC
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against gasoline Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil Resistant against basic bath Resistant against acid bath
Test current
4.5 A CSA 5 A IEC 4.5 A UL
Test voltage
250 V CSA 32 V IEC 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
14
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
14
Number of cavity #20
14
Salt spray
500 hour
IP68/69K sealing provides proven ingress protection, increasing equipment uptime and lowering service calls in harsh environments. The 14 gold-plated solder cups enable stable electrical performance for both power and data, translating to improved machine reliability and fewer field failures in automated systems. A 1/3 bayonet coupling offers quick, vibration-resistant mating to speed installation and reduce technician time on site. The backshell with a sealing gland supports a wide cable diameter range from 3 to 12 mm, simplifying field assembly and stock planning. Operating from -40 to 105 C ensures continuity in outdoor or enclosed spaces, while 250 mating cycles and the 66.7×29.7×29.7 mm footprint fit compact panels and compact wiring looms. Compliance with IEC 61984, UL 1977, and ROHS exemptions reduces risk in certified installations. Delivered as a plug with orientation W streamlines integration with existing Souriau UTS components and minimizes retrofit costs.
