Eaton UTS6JC12E14SW Plastic IP68/69k Connector - IP68/69k
Part Number: UTS6JC12E14SW
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69k connector delivers sealed power and signal connections for harsh equipment. Engineers wrestle with moisture, dust, and wash-down exposure that threaten uptime and safety. UL 1977, CSA-C22.2 No.182.3, and IEC 61984 compliances accompany RoHS exemption 6.c, elevating reliability in process and automation applications. Its IP68 rating and 14-contact layout suit rugged panel, machine, and sensor networks, delivering easy installation and long service life. Backshell back gland and straight plug orientation simplify field assembly, while 14 conductor positions enable compact sensor networks and motor feedback. Operating range -40 to 105 C, 250 mating cycles, and 3–12 mm cable diameter compatibility translate to fewer part swaps and lower maintenance costs.
Product Information
Extended Description

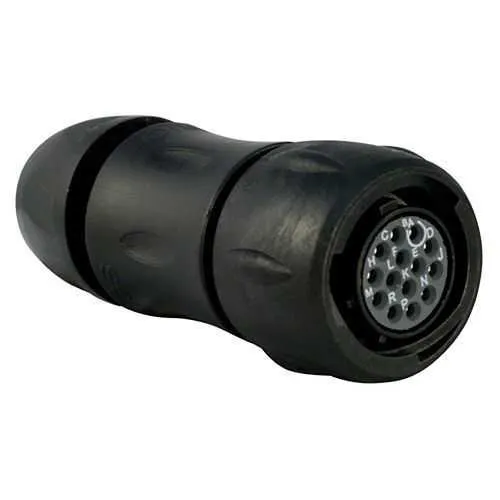

UTS6JC12E14SW Eaton: Plastic plug, with cable gland backshell, with 14 female solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC12E14SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E14SW
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
33.7 g
Compliances
UL 1977 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
5 A IEC 4.5 A UL
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil
Test current
5 A IEC 4.5 A CSA 4.5 A UL
Test voltage
250 V UL 250 V CSA 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
14
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
14
Number of cavity #20
14
Salt spray
500 hour
The IP68/69k sealing of the UTS6JC12E14SW provides robust ingress protection, reducing moisture-related failures and downtime in wash-down and outdoor environments, which translates to higher line availability and lower maintenance costs. The 14 gold-plated solder cup contacts deliver reliable electrical performance with corrosion resistance, supporting accurate sensor data and stable actuator control in automation networks. A 1/3 bayonet coupling offers quick, secure mating while maintaining vibration resistance, enabling faster line changes without compromising safety. The included Sealing Gland backshell and cable gland backshell streamline installation and provide dependable strain relief, extending harness life and reducing field failures. With a wide operating temperature range and a durable plastic shell, this connector is well-suited for wide ambient conditions and compact control enclosures. Its 66.7 mm length and compact footprint simplify panel layouts while preserving 14-position capability for scalable I/O expansion. Overall, the UTS6JC12E14SW enables cost-efficient maintenance, predictable lifecycle planning, and dependable performance across automotive, packaging, and process automation.
