Eaton UTS6JC12E2S Connector - IP68/69K Waterproof
Part Number: UTS6JC12E2S
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69K connector provides rugged, sealed connections for demanding industrial environments. Engineers often struggle with moisture ingress, vibration, and degraded seals that drive maintenance costs and downtime. Its compliance with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, along with RoHS exemption 6.c, helps ensure cross‑regional safety and interoperability. The design supports compact harness routing with a sealing gland backshell, while gold-plated solder contacts deliver reliable electrical performance. These features translate into lower maintenance costs, reduced field failures, and more predictable uptime for control panels, outdoor machinery, and mobile equipment in harsh settings.
Product Information
Extended Description

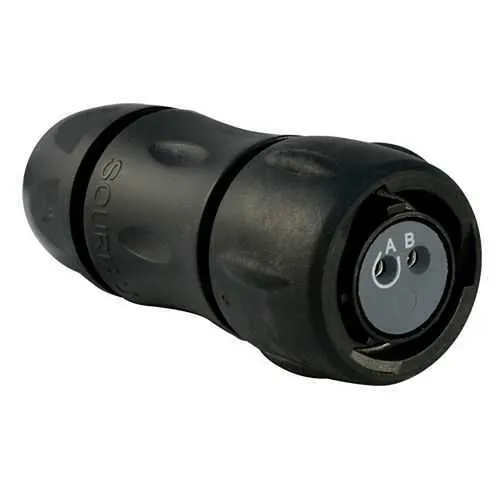

UTS6JC12E2S Eaton: Plastic plug, with cable gland backshell, with 2 female solder contacts, IP68/69K in unmated conditions; UTS6JC12E2S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E2S
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
30.9 g
Compliances
IEC 61984 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
16 A IEC 13 A UL
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath Resistant against acid bath Resistant against oil Resistant against mineral oil
Test current
13 A UL 16 A IEC 13 A CSA
Test voltage
150 V IEC 600 V CSA 600 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Number of cavity #16
2
Salt spray
500 hour
Waterproof and ruggedized sealing ensures minimal ingress in washdown and outdoor conditions, reducing corrosion risk and extending service life. Feature → Business Impact → Application: The IP68/69K rating combined with a sealing gland backshell minimizes moisture ingress and chemical attack, translating to lower maintenance intervals and fewer unplanned outages in food processing lines, mining equipment, and outdoor pumps. Feature → Business Impact → Application: With 2 gold-plated solder cup contacts and robust contact ergonomics, you gain consistent signal and power transfer across temperature swings, improving machine reliability in harsh environments such as agricultural equipment and construction hydraulics. Feature → Business Impact → Application: The 1/3 bayonet coupling enables quick, vibration‑resistant mating and easy field installation, reducing service time during harness repairs on conveyors and packaging lines. Feature → Business Impact → Application: 66.7 mm length, 29.7 mm width, 29.7 mm height, and 2 cavities provide a compact yet capable solution for panel‑mount or inline harness applications, saving space and weight on mobile units. Feature → Business Impact → Application: A broad operating temperature range of -40 to 105 °C, UV and chemical resistance, and 250 mating cycles ensure long‑term performance in extreme environments such as outdoor automation kiosks and mechatronic drives. Compliance with IEC 61984, UL 1977, CSA C22.2 No. 182.3, and RoHS 6.c reduces risk during audits and supports multi‑regional deployments, while the gold plating on contacts minimizes contact resistance over time.
Get a Quick Quote for a Eaton UTS6JC12E2S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E2S?
Enquire Now
FAQs
The UTS6JC12E2S uses a straight plug with a sealing gland backshell and 1/3 Bayonet coupling. Align the mating faces, push together firmly, and rotate the bayonet until it clicks to achieve IP68/69K sealing. Ensure the cable diameter is within 3 to 12 mm and that the 2 solder cup contacts are properly soldered before mating.
It combines a robust plastic shell, Neoprene insert, and a sealing gland backshell to provide high ingress protection. The gold-plated solder contacts maintain low resistance, while the assembly resists UV exposure, gasoline, oils, and mineral oils, making it ideal for washdown zones and outdoor installations.
The connector supports 16 A per IEC and 13 A per UL with a voltage rating of 150 V IEC and 600 V UL/CSA. It has 2 contacts with gold plating in a 2‑cavity configuration, suitable for power and signal in compact harnesses.
The unit complies with IEC 61984, UL 1977, and CSA‑C22.2 No.182.3, with RoHS exemption 6.c. These certifications ensure safety, interoperability across regions, and reduced environmental impact for industrial systems.
Thanks to the IP68/69K sealing, high mating cycle rating of 250, UV and chemical resistance, and compact form factor, you can reduce maintenance downtime, extend service intervals, and lower harness maintenance costs in harsh environments such as mining equipment, outdoor automation, and packaging lines.
