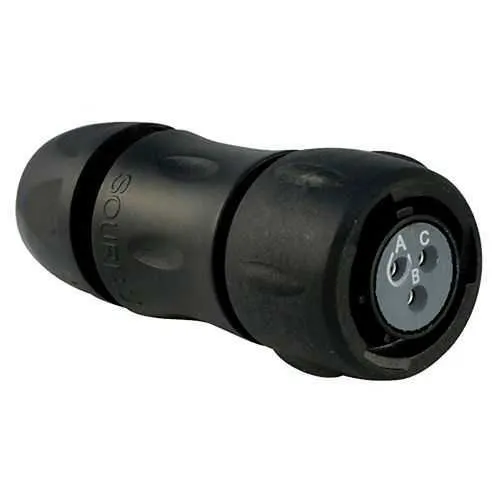

Eaton UTS6JC12E3S Connector - IP68/69K Waterproof
Part Number: UTS6JC12E3S
Quick Summary
Eaton Souriau UTS6JC12E3S is a plastic waterproof IP68/69K connector for rugged industrial harnesses. Engineers often struggle with sealing reliability and maintenance in harsh production environments. This design complies with UL 1977 and IEC 61984, plus CSA-C22.2 No.182.3; ROHS exemption 6.c keeps material concerns minimal. With straight backshell, 1/3 bayonet coupling, and 3 solder cup contacts, it accelerates field wiring and minimizes downtime. This combination supports quick maintenance, dependable sealing, and scalable use across automation lines.
Product Information
Extended Description
UTS6JC12E3S Eaton: Plastic plug, with cable gland backshell, with 3 female solder contacts, IP68/69K in unmated conditions; UTS6JC12E3S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E3S
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
31.4 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
16 A IEC 13 A UL
Environmental conditions
RoHS REACH Flammability rating UL94 HB
Environmental resistance
Resistant against mineral oil Resistant against basic bath Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against oil
Test current
16 A IEC 13 A CSA 13 A UL
Test voltage
150 V IEC 600 V UL 600 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
3
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #16
3
Salt spray
500 hour
Feature IP68/IP69K rated plastic shell provides robust ingress protection for unmated conditions, reducing failure due to moisture, dust, and chemicals. Business Impact Fewer field failures and less maintenance downtime translate to higher overall equipment effectiveness (OEE) on conveyors, robots, and outdoor equipment. Application Suitable for washdown zones, outdoor automation, and mobile machinery where reliability is critical. Feature 1/3 bayonet coupling enables fast mating and unmating, improving installation efficiency in tight panels and limited service space. Business Impact Shorter installation times and easier field servicing reduce labor costs and downtime. Application Ideal for control panels, sensor networks, and remote I/O modules in dynamic production lines. Feature Gold-plated solder cup contacts with 3 contact positions deliver consistent electrical performance and corrosion resistance. Business Impact Signal integrity and longevity lower maintenance costs and prevent intermittent failures. Application Suitable for sensors, actuators, and control modules in harsh environments. Feature Cable diameter range 3–12 mm with neoprene insert and sealing gland backshell ensures flexible cable routing and reliable seals. Business Impact Simplifies harness design and reduces rework when cable runs vary between installations. Application Used across modular automation and vehicle systems. Feature Operating temperature -40 to 105 °C supports extreme industrial conditions. Business Impact Broader application windows and fewer temperature-related failures. Application Industrial drives, motor controllers, and outdoor electronics. Feature 250 mating cycles and IP68 rating indicate long service life and sustained performance. Business Impact Lower lifecycle costs and predictable maintenance intervals. Application Robotic grippers, mobile equipment, and automation panels. Feature 3 contacts with gold plating and solder cup contact type for reliable, low-resistance connections. Business Impact Improved electrical performance and corrosion resistance in vibration-prone environments. Application Sensor interfaces and low-voltage controls in aggressive surroundings. Feature 1/3 bayonet coupling, straight plug, and sealing gland backshell provide straightforward installation and rugged sealing. Business Impact Faster, more secure connections with high ingress protection. Application Industrial automation installations and rugged field wiring.
Get a Quick Quote for a Eaton UTS6JC12E3S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E3S?
Enquire Now
FAQs
The UTS6JC12E3S uses a straight backshell with 1/3 bayonet coupling and a 12-shell size, delivering a compatible plug-and-play fit with UTS-series panels and standard 3-conductor harnesses. It accepts cable diameters from 3 to 12 mm and ships with a sealing gland backshell for instant environmental protection.
It provides 16 A current rating (IEC), 13 A (UL/CSA) with a test current of 16 A IEC and 13 A CSA/UL, and a test voltage of 150 V IEC and 600 V UL/CSA, with gold-plated solder cup contacts for reliable signaling in vibration-prone installations.
Yes. The operating temperature range is -40 °C to 105 °C, and the IP68 rating ensures excellent ingress protection in wet, dust, and washdown environments, complemented by UV resistance and chemical exposure tolerance.
The product complies with UL 1977, IEC 61984, and CSA-C22.2 No.182.3; it also carries ROHS exemption 6.c, supporting regulatory readiness for automotive, industrial, and machinery applications.
With up to 250 mating cycles and durable sealing via a sealing gland and neoprene insert, it reduces maintenance downtime and extends equipment readiness, delivering improved uptime and return on investment in automation and mobile equipment.
