Eaton UTS6JC12E4P UTS Series Connector - IP68/69k
Part Number: UTS6JC12E4P
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69k connector enables rugged, reliable power and signal in harsh industrial settings. Designers often battle water ingress, complex cabling, and costly field maintenance in wet or outdoor environments, where a small misstep can halt production. Compliances include UL 1977, IEC 61984, CSA-C22.2 No.182.3, and ROHS exemption 6.c, supporting global approvals. With 4-pin solder cup contacts, a sealing gland backshell, and IP68 protection, it offers straightforward installation and dependable performance for system integrators and OEMs.
Product Information
Extended Description

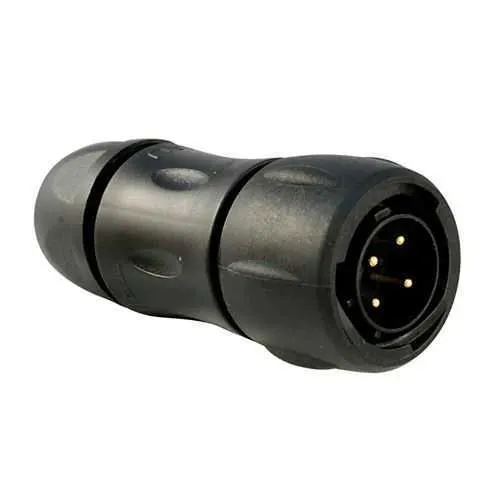

UTS6JC12E4P Eaton: Plastic plug, with cable gland backshell, with 4 male solder contacts, IP68/69K in unmated conditions; UTS6JC12E4P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E4P
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
30.5 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details)
Current rating
10 A UL 16 A IEC
Fitted with:
Last mate first break capability(optional) First mate last break capability Layout with ground cavity
Environmental conditions
RoHS REACH Flammability rating UL94 HB
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against gasoline Resistant against acid bath
Test current
10 A UL 16 A IEC 7 A CSA
Test voltage
500 V CSA 300 V IEC 500 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
4
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
500 hour
IP68/69k sealing and a robust plastic shell protect sensitive connections in washdown and outdoor environments, reducing the risk of water ingress and corrosion. This translates to fewer unplanned outages and lower maintenance costs as equipment uptime improves and service life extends in demanding facilities. The 4-position plug with gold-plated solder cups ensures reliable current transfer and long-lasting signal integrity across automation panels, sensors, and field-wiring harnesses. The straight mating interface and backshell sealing gland enable quick, tool-free installation even in tight spaces, supporting faster installation times and repeatable assemblies in production lines. Operating from -40 °C to 105 °C and with strong UV and chemical resistance, the connector remains dependable through extreme temperature swings and harsh environments, lowering replacement needs over the lifecycle. With 250 mating cycles, users gain predictable lifecycle costs and reduced total cost of ownership, while compatibility with standard RoHS-compliant assemblies simplifies procurement and design-in for global deployments. The 3–12 mm cable diameter range provides design flexibility, reducing parts variety and enabling common cabling strategies across products and lines.
Get a Quick Quote for a Eaton UTS6JC12E4P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E4P?
Enquire Now
FAQs
The UTS6JC12E4P is a 4-position plug with a 1/3 Bayonet coupling and straight backshell, designed for cable diameters from 3 to 12 mm. It ships with the connector and sealing gland backshell, supports 4 gold-plated solder cup contacts, and uses a straight mating interface for simple harness integration. Mating cycles are rated at 250.
This connector offers a current rating of 10 A UL and 16 A IEC, with test current values of 10 A UL, 16 A IEC, and 7 A CSA. Test voltage is 500 V CSA, 300 V IEC, and 500 V UL. It provides IP68 sealing and RoHS compliance, with an operating temperature range from -40 °C to 105 °C.
Ideal for industrial automation, control panels, sensors, and field wiring harnesses operating in washdown or outdoor environments. The IP68/69k protection, salt spray endurance, and wide operating temperature range make it suitable for packaging, water treatment, and heavy machinery where reliability and ease of maintenance are critical.
Compliances include UL 1977, IEC 61984, CSA-C22.2 No. 182.3, and ROHS exemption 6.c. The product is designed for global sourcing and cross-border deployment, with backbones supporting regulated environments and end-user safety requirements.
With 250 mating cycles, UV resistance, and robust environmental hardness, the UTS6JC12E4P reduces replacement frequency and downtime. The connector’s oils, acids, and salt spray resistance support long service life, while its compact 66.7 mm length and 4-contact configuration streamline installation and inventory, delivering a favorable return on investment for maintenance-intensive lines.
